The Epson T3200 printhead is designed for commercial and industrial UV printing applications that require a balance of production efficiency and image quality. It is suitable for printing systems used to produce advertising graphics, display materials, signage, and product packaging.

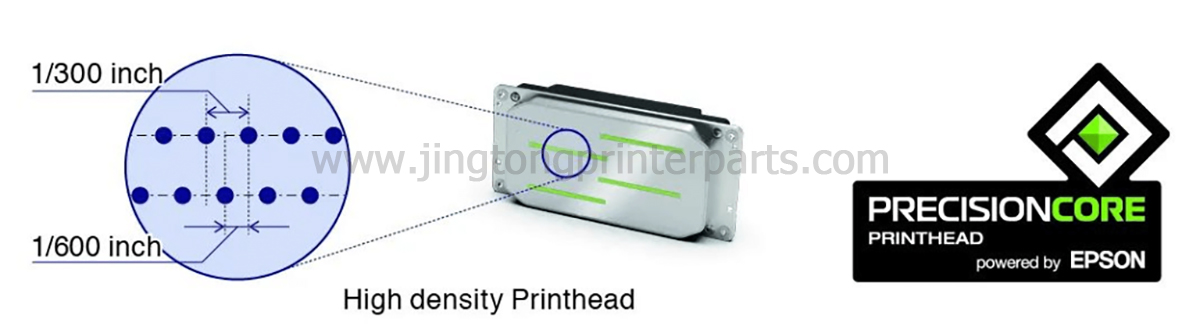

Compared with printheads that cover a narrower effective print width, the T3200 offers a 67.2 mm (2.65-inch) effective printing width. Its design can help printer manufacturers simplify head alignment and develop efficient printing systems.
Key Features of the T3200-U3 Printhead
Single-Head Four-Color Printing
The T3200-U3 supports up to four ink colors in one printhead, allowing CMYK configurations in suitable printer designs. This can simplify printhead arrangement and reduce the alignment work required during equipment integration.

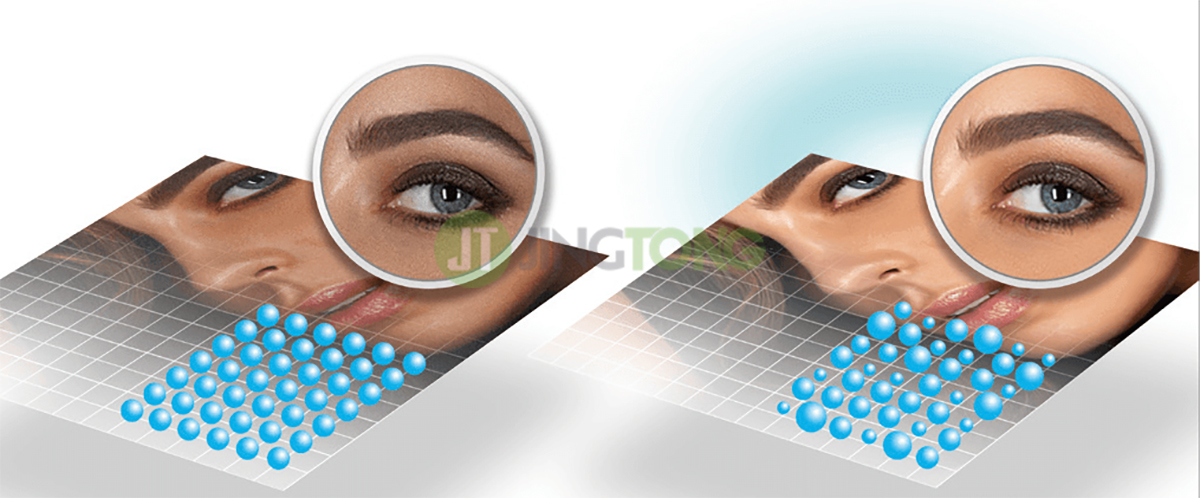

Variable Droplet Technology
Variable droplet control helps reproduce fine details, smoother tonal transitions, and more consistent color gradients. These characteristics are valuable for advertising graphics containing text, images, gradients, and detailed visual elements.
Actual image quality depends on the printer’s resolution settings, waveform, ink, media, and printing mode.
Built-In Heating for UV Ink
The T3200-U3 includes an internal heater designed to help maintain suitable ink temperature during printing. This feature supports stable jetting with compatible UV inks, including certain higher-viscosity formulations.
Ink compatibility should always be confirmed with the printhead and printer manufacturer before use.
Designed for Industrial Printing Systems
The T3200’s wide effective print area and integrated positioning reference can help simplify installation and support production-oriented printer designs. It can be considered for UV flatbed and roll-to-roll systems used in advertising and packaging applications.
Typical Advertising Printing Applications
The Epson T3200 printhead can be used in appropriately configured UV printing equipment for applications such as:
● Indoor and outdoor advertising graphics
● Lightbox displays and exhibition graphics
● Signage and decorative panels
● Product packaging and promotional materials
● Specialized UV printing effects, depending on the printer and ink configuration
The final application range depends on the complete printer system, supported substrates, ink formulation, and curing setup.
What to Check Before Choosing a T3200 Printhead
Before purchasing a replacement or integrating a T3200 into a new machine, confirm the exact model, ink type, electrical interface, control system, and mechanical compatibility. Also check whether the printer’s ink supply and temperature-control arrangements meet the printhead’s requirements.
The T3200-U3 and newer T3200-U3-2 should not automatically be treated as interchangeable. Verify the specific model and compatibility details with the equipment supplier.
Conclusion
The Epson T3200 printhead is an option for commercial UV printing systems that need a relatively wide print swath, multi-color output, and temperature control for compatible UV inks. Choosing the right configuration—and matching it with a suitable ink system, control electronics, and printing platform—is essential for achieving reliable advertising production.
