The StarFire SG1024 printhead is designed for industrial inkjet applications that require consistent ink delivery, flexible droplet control, and production-oriented maintenance. Developed by Fujifilm Dimatix, the SG1024 family is used in applications including ceramic decoration and other specialized industrial printing processes.
Its main advantages include REDIJET ink recirculation in supported models, VersaDrop variable droplet technology, and a repairable design. The exact benefits depend on the selected SG1024 series and ink configuration.
REDIJET Internal Ink Circulation
In compatible SG1024 models, REDIJET technology circulates ink through designated internal channels. Keeping ink moving can help reduce stagnation, manage bubbles, and improve startup and restart performance.
This feature is especially useful in applications where ink or glaze formulations require careful circulation. However, circulation cannot eliminate every risk of sedimentation or clogging. Ink properties, filtration, temperature, and circulation settings remain important.
VersaDrop Variable Droplet Technology
VersaDrop allows compatible SG1024 printheads to produce different droplet sizes through appropriate drive waveforms. This gives equipment manufacturers more flexibility to balance image detail and ink coverage.
Smaller droplets can help reproduce fine details, while larger droplets support heavier deposition for applications such as ceramic decoration. The available droplet range and operating frequency vary by model, so specifications should be checked for the exact version.
1024 Independently Addressable Jets

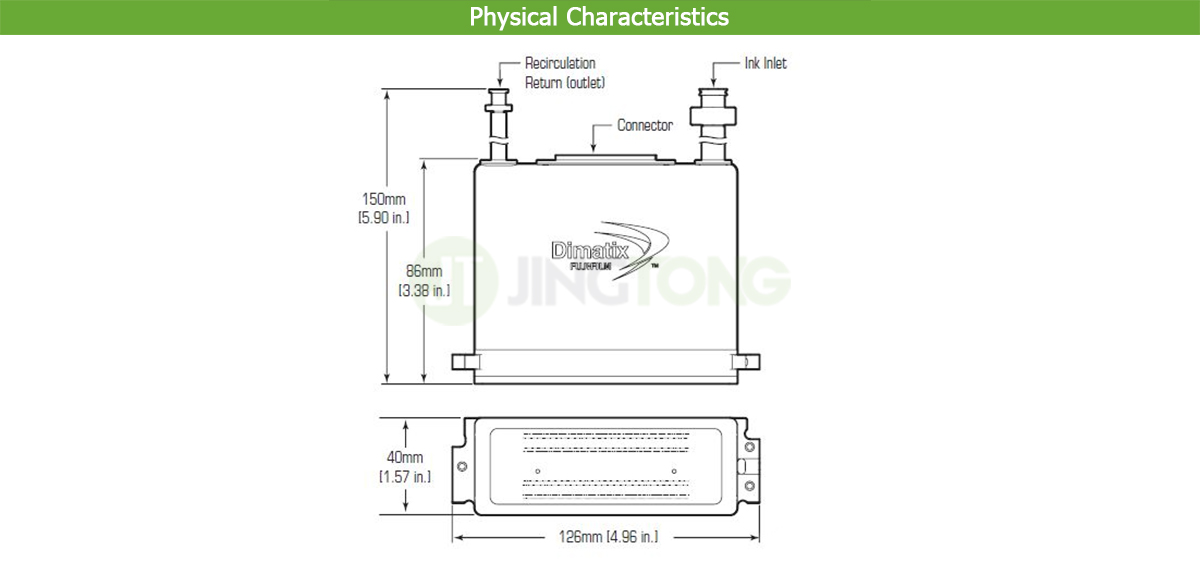

The SG1024 family features 1,024 independently addressable jets and a native resolution of 400 dpi in its standard configuration. The 64.96 mm (2.55-inch) print width supports modular integration into industrial printing systems.
These specifications help manufacturers design multi-head arrays for wider coverage and production lines. Actual output depends on head arrangement, firing frequency, ink characteristics, machine movement, and the selected printing mode.
Repairable Design and Maintenance
Selected SG1024 configurations feature a serviceable construction that can allow specific components to be inspected, cleaned, or replaced by qualified technicians. This may reduce maintenance costs when a fault is repairable.
Repairability does not mean every printhead problem can be resolved by replacing a single component. Damage to electronics, severe contamination, and physical nozzle damage may require professional evaluation.
Applications and Model Selection
The SG1024 family includes different variants for different fluids and operating conditions. For example, Fujifilm’s C-Series is designed for oil- and solvent-based ceramic inks, while other series support different ink chemistries.
Before selecting a printhead, confirm the intended substrate, ink formulation, viscosity range, operating temperature, circulation requirements, and maintenance capabilities. Never assume that all SG1024 variants are interchangeable.
Conclusion
The StarFire SG1024 combines industrial nozzle design with variable droplet control and, in supported models, internal ink circulation and serviceable components. Its benefits are most relevant when the chosen variant matches the ink and production process. Checking the manufacturer’s model-specific specifications is essential for reliable integration.
