The Epson S3200 printhead applications cover industrial inkjet systems that require high productivity, controlled droplet placement, and flexible multi-head configurations. The printhead is used in applications such as digital textile printing and other industrial production systems, depending on the selected model and printer design.
The S3200 family includes variants for different ink types. The S3200-U1-2 is designed for UV and eco-solvent inks, while the S3200-A1 is designed for aqueous ink. Selecting the correct version is essential for reliable operation.
Key Technical Features
PrecisionCore Technology
The S3200 uses Epson PrecisionCore MicroTFP technology. Its piezoelectric actuation system controls ink ejection to support accurate droplet placement and consistent image reproduction.
These characteristics are important in industrial printing, where fine details, color transitions, and repeatable output are required. Actual print quality depends on ink formulation, waveform settings, media, and the complete printer system.
High Nozzle Count and Wide Print Width

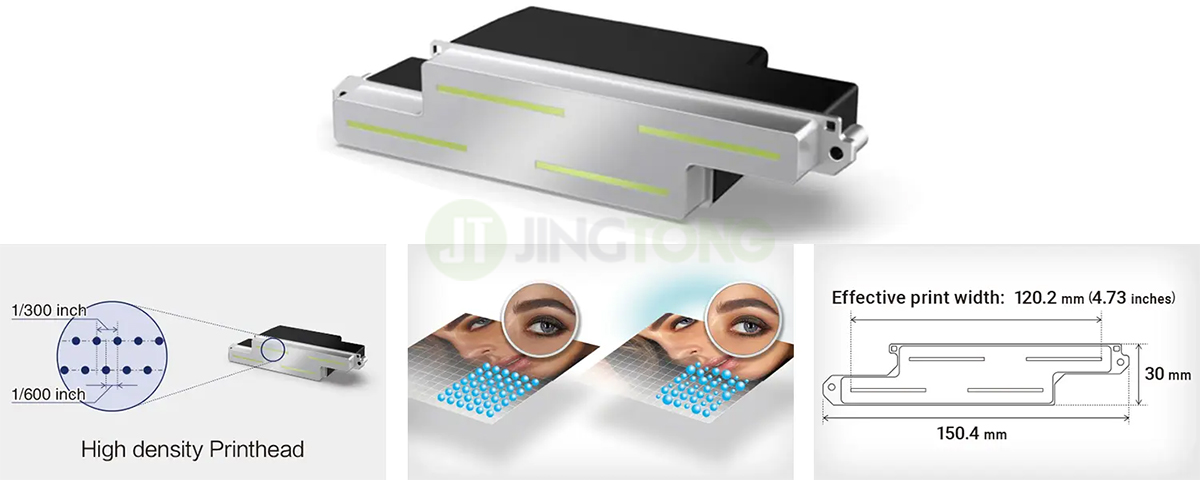

The S3200 has 3,200 total nozzles, with 2,840 listed as the net nozzle count, and an effective print width of 120.2 mm (4.73 inches). Its nozzle arrangement supports high-resolution printing and multi-head system design.
The head supports up to two ink colors. Four-color printing therefore generally requires multiple printheads and a compatible ink delivery and control system.
Modular Design for Multi-Head Systems

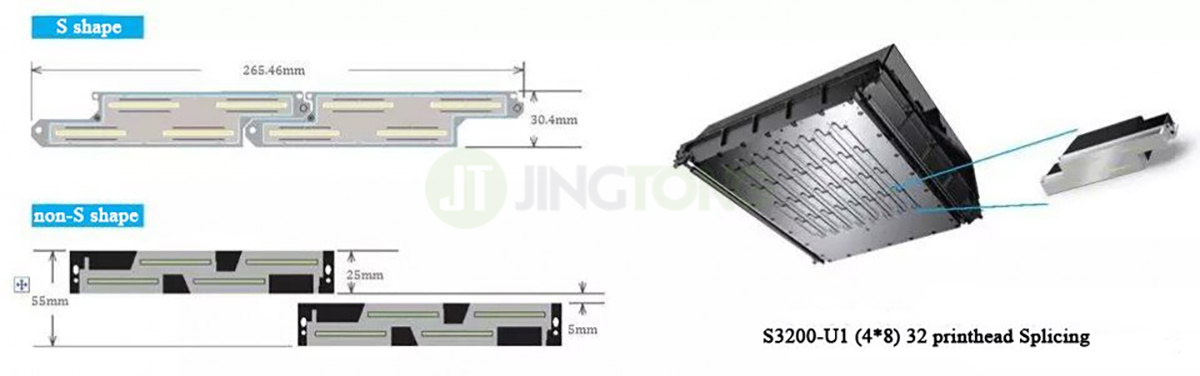

The S3200’s compact structure and positioning reference allow equipment manufacturers to arrange multiple heads in suitable configurations. Multi-head layouts can help increase production capacity and cover wider print areas.
However, the benefits depend on alignment accuracy, machine mechanics, control electronics, and the selected printing mode.
Common Application Areas
Digital Textile Printing
Aqueous S3200 variants can be considered for compatible textile printing systems. The final result depends on the fabric, ink chemistry, pretreatment, drying, and any required fixation process.
Industrial Production Printing
The S3200 family can also be integrated into industrial inkjet systems for selected production applications. UV or eco-solvent variants may suit different substrates and printing processes, provided the ink and printer design match the specific model.
Multi-Head Printing Lines
When several printheads operate together, the S3200 can form part of a production system designed for wider coverage or higher throughput. System-level testing is necessary to confirm the required output and print quality.
Ink Supply and Compatibility Considerations
Ink compatibility is one of the most important factors when selecting an S3200 printhead. Different variants have different viscosity ranges and ink requirements. The S3200-U1-2 includes common-channel ink circulation, while other versions may not have the same circulation configuration.
Before installation, verify the exact model, ink viscosity, filtration, degassing, pressure control, and circulation requirements. Do not assume that all S3200 variants can use the same ink or supply-system settings.
Conclusion
The Epson S3200 printhead is designed for industrial printing systems that need a wide effective print area, precise droplet control, and flexible multi-head integration. Choosing the correct ink variant and engineering a compatible ink delivery system are essential to achieving reliable performance.
