Ricoh MH5320 vs MH5340 vs MH5421 is an important comparison for industrial printer manufacturers and users planning a printhead replacement or system upgrade. Although these models share a 1,280-nozzle configuration, they differ in color-channel support, ink compatibility and operating characteristics.
1. Ricoh Gen6 and Gen5 Overview
The MH5320 and MH5340 belong to Ricoh’s Gen6 family, while the MH5421 is an earlier Gen5 model. The Gen6 models offer different integration options and are designed for a broader range of industrial inkjet applications, subject to the specific ink and system requirements.
A newer generation does not automatically mean a direct replacement. Controller support, mounting dimensions and ink delivery must all be verified.
2. Key Specification Comparison
The reference article lists the following specifications. Confirm exact values with the applicable manufacturer datasheets before using them for engineering decisions.
| Specification | MH5320 | MH5340 | MH5421 |
| Generation | Gen6 | Gen6 | Gen5 |
| Nozzle count | 1,280 | 1,280 | 1,280 |
| Print width | 54.1 mm | 54.1 mm | 54.1 mm |
| Resolution | 600 dpi | 600 dpi | 600 dpi |

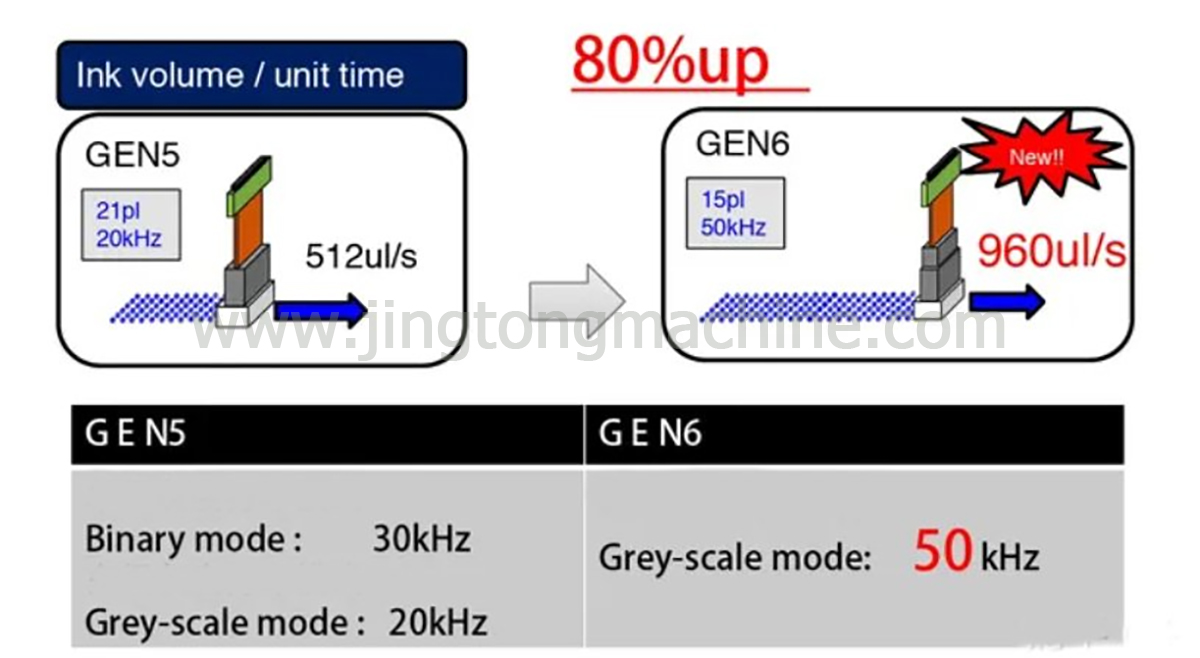

| Listed droplet range | 5–15 pL | 5–15 pL | 7–21 pL |
| Listed maximum frequency | Up to 50 kHz | Up to 50 kHz | Up to 30 kHz |
| Color-channel support | 2 colors | 4 colors | 2 colors |
Actual performance depends on drive electronics, waveform settings, ink properties and printer configuration.
3. MH5320 vs MH5340: What Is the Difference?
The main distinction identified in the reference guide is color-channel support. The MH5320 is listed for two-color configurations, while the MH5340 supports four-color configurations.
This difference can influence the design of the ink supply system, printhead arrangement and controller configuration. Before purchasing, confirm the exact supported configuration and intended application with the manufacturer or supplier.
4. Ink Compatibility and Integration
The reference guide lists the MH5320 and MH5340 for compatible UV, solvent and aqueous ink systems, while the MH5421 is listed for aqueous applications. These descriptions should not be interpreted as universal compatibility with every ink formulation.
Integration requirements include:
● Compatible drive electronics and waveforms.
● Ink viscosity and chemical compatibility.
● Appropriate filtration and temperature management.
● Correct mounting dimensions and alignment.
● Stable ink supply and pressure control.
5. Can the MH5320 Replace the MH5421?
Not necessarily as a direct drop-in replacement. Differences in physical dimensions, weight, drive electronics and ink requirements may require changes to the printer design.
Before upgrading, check the mechanical mounting, controller compatibility, ink system and software configuration. A complete system review is safer than assuming that similar nozzle counts or print widths guarantee compatibility.
Conclusion
The MH5320, MH5340 and MH5421 serve different integration needs. Comparing specifications is a useful starting point, but the correct choice depends on the required color configuration, ink system and compatibility with the existing printer.
