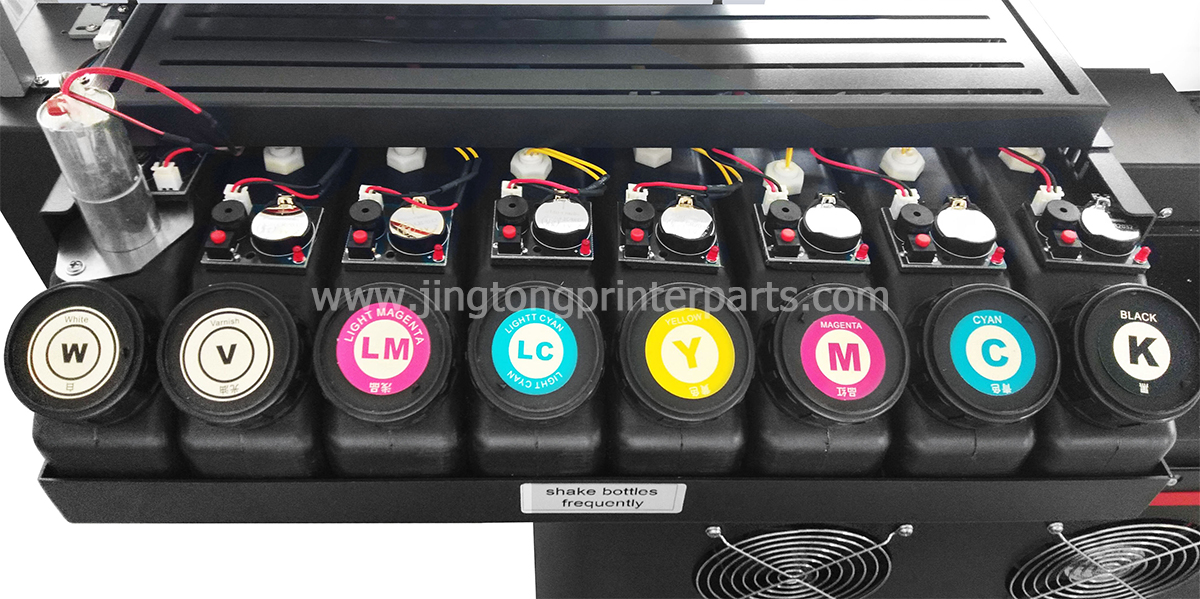

The UV flatbed printer ink supply system delivers ink from the main reservoir to the printhead while maintaining suitable flow and pressure. Depending on the printer design, the system may include main ink tanks, sub tanks, pumps, filters, tubing, dampers, and pressure-control components.
Each part has a specific role. A problem in one area can affect the entire ink path, leading to unstable printing, missing nozzles, or ink leakage.
Main Components and Their Functions
● Ink tank: Stores ink and allows replenishment.
● Ink pump: Moves ink through the supply system when pumping is required.
● Ink filter: Traps particles that could restrict flow or reach sensitive components.
● Ink tubing and fittings: Connect components and carry ink between them.
● Sub tank and damper: Help supply ink near the printhead and support stable delivery, depending on system design.
Air filter or pressure-control components: Help maintain appropriate conditions in systems that use them.
These components must be compatible with the printer and the ink formulation. A general-purpose pump, unsuitable tubing, or an incompatible filter may cause operational problems.
Common Causes of Ink Supply Problems
Restricted filters, blocked fittings, damaged tubes, air entering the ink line, and unsuitable ink can all affect ink delivery. Symptoms may include intermittent printing, missing nozzles, repeated cleaning requirements, or visible air bubbles.
Before replacing the printhead or pump, inspect the ink path and check the printer’s error information. Similar symptoms can have different causes, so diagnosis should follow the manufacturer’s service procedure.
Safe Ink Refilling Practices
Use ink that matches the printer’s specifications and is compatible with any ink already in the system. Mixing incompatible formulations can cause deposits, unstable jetting, or damage.
During refilling, follow the machine’s instructions for venting and reservoir levels. Avoid changing the tank height or pressure arrangement without guidance, as this may cause ink to leak from the printhead.
Always follow the correct shutdown procedure before servicing the ink system.
Choosing Replacement Parts
Before ordering a pump, filter, tube, damper, or sub tank, confirm the printer model, ink type, part number, and connection specifications. UV ink may require materials designed to withstand its chemical properties.
Correct matching helps maintain stable ink delivery and reduces unnecessary replacement costs.
Conclusion
A reliable UV printer ink supply system depends on compatible ink, clean flow paths, functioning filters and pumps, and suitable pressure conditions. Inspect the complete system before concluding that the printhead has failed.
