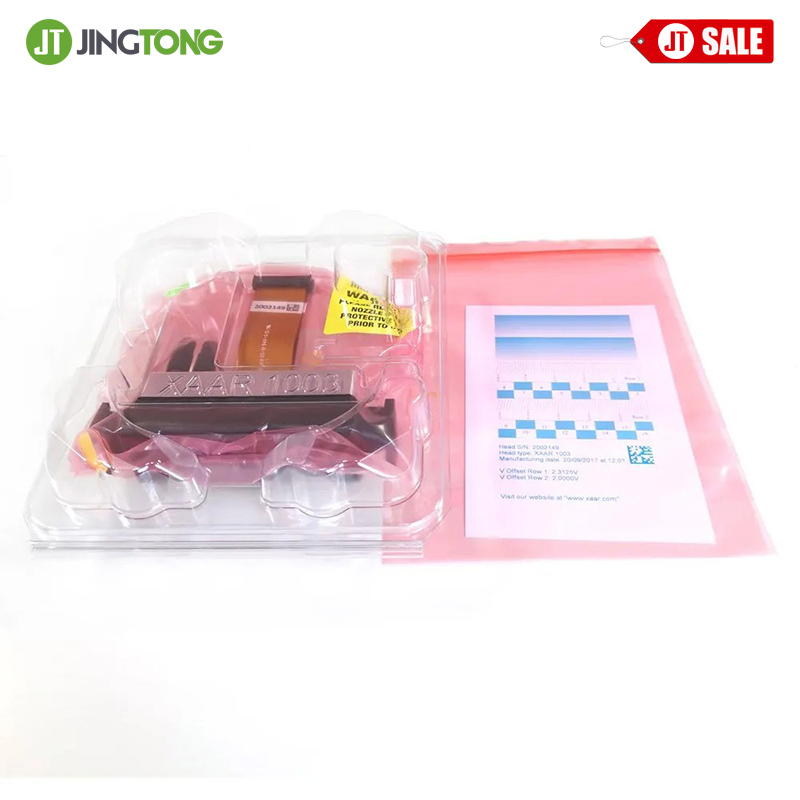

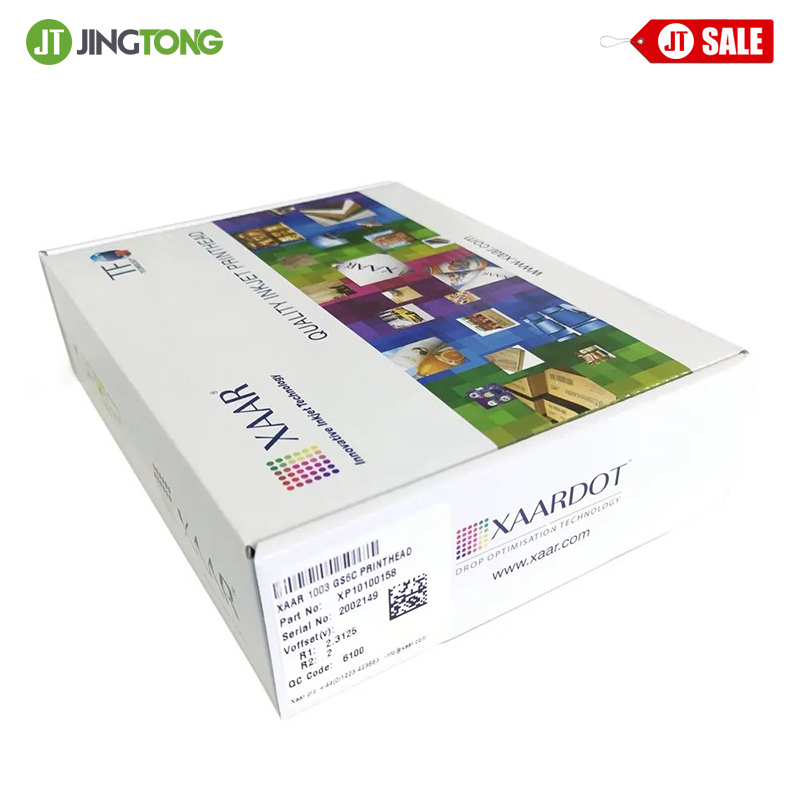

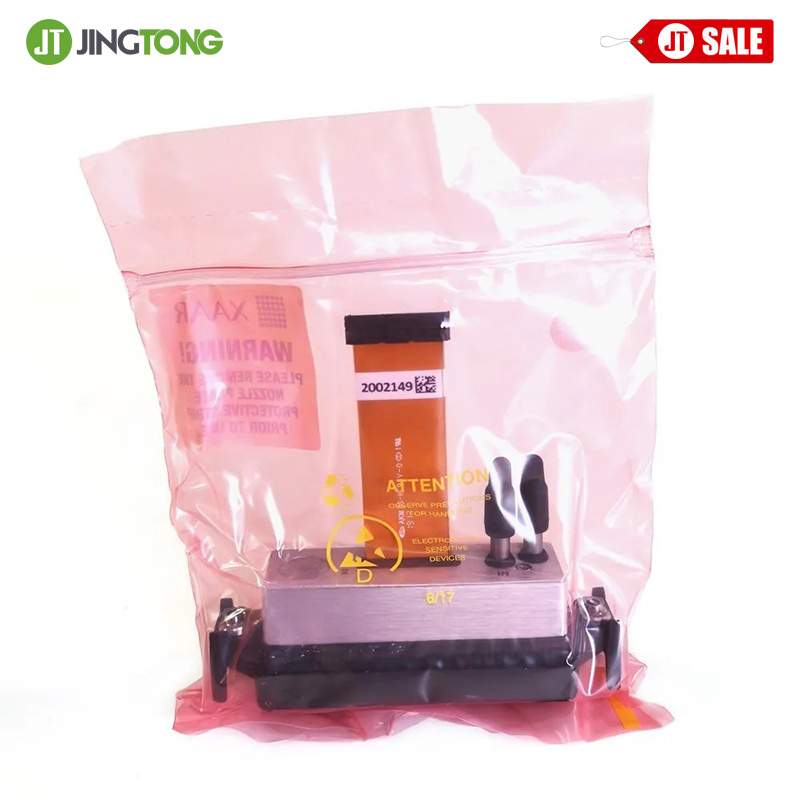

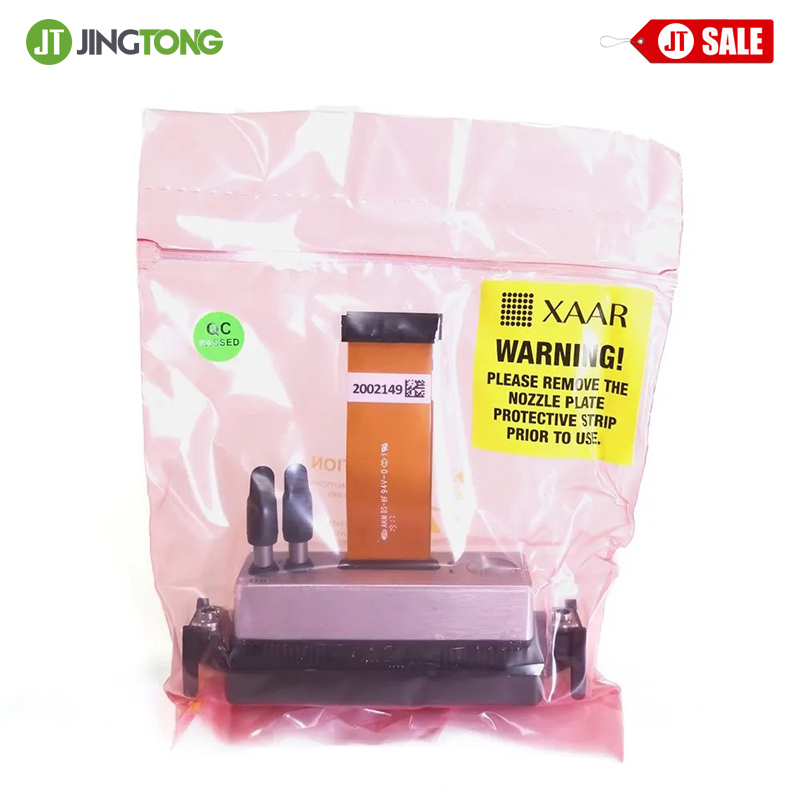

Xaar 1003 GS6U Printhead Description
A digital press equipped with Xaar 1003 GS6U printheads allows for 360 dpi resolution across various industrial applications. It supports printing at 360 x 360 dpi with speeds up to 50 m/min and offers 4 grey levels (6, 12, 18 pL).
Xaar¡¯s exclusive technologies ensure continuous and reliable single-pass printing, maximizing production output, minimizing interruptions, and reducing the need for operator intervention. Combining high precision with the proven success of True Inline patented ink recirculation, the Xaar 1003 printhead UV brings the highest standards of print quality and the reliability of digital printing, making it ideal for a wide range of industrial applications.
Xaar 1003 GS6U Printhead Specifications
| Active Nozzles | 1000 |
| Print Swathe Width | 70.5 mm |
| Nozzle density (nozzles per inch) | 360 npi |
| Drop volume | 6 to 42 pl |
| Firing Frequency/grey levels | 27 kHz/binary, 12 kHz/4 grey levels, 6 kHz/8 grey levels |
| Max line speed/grey levels (360*360 dpi) | 50 m/min/4 grey levels, 25 m/min/8 grey levels |
| Ink Type | Solvent, oil, UV |
