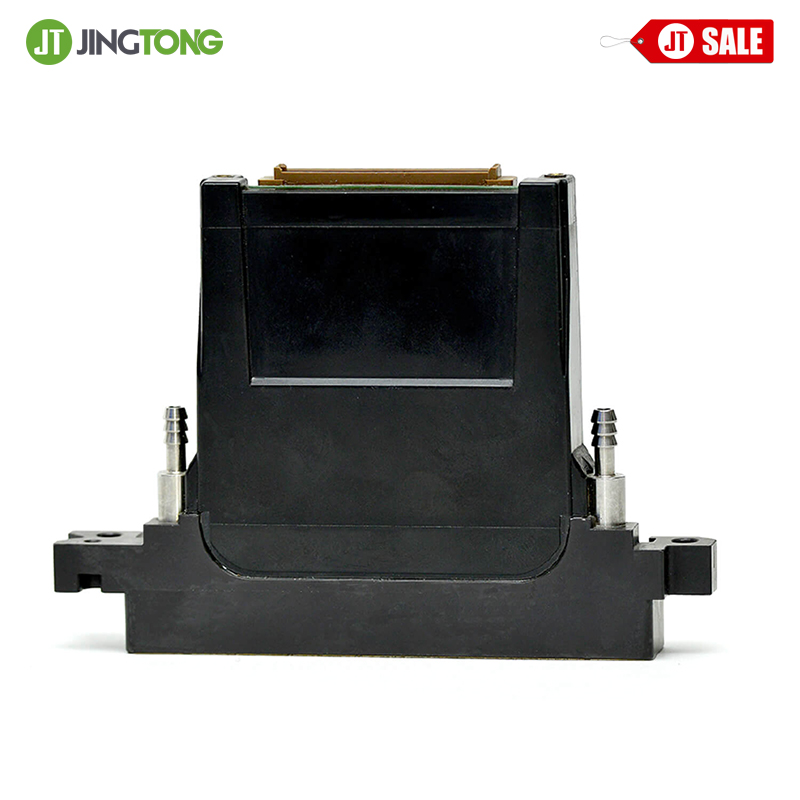

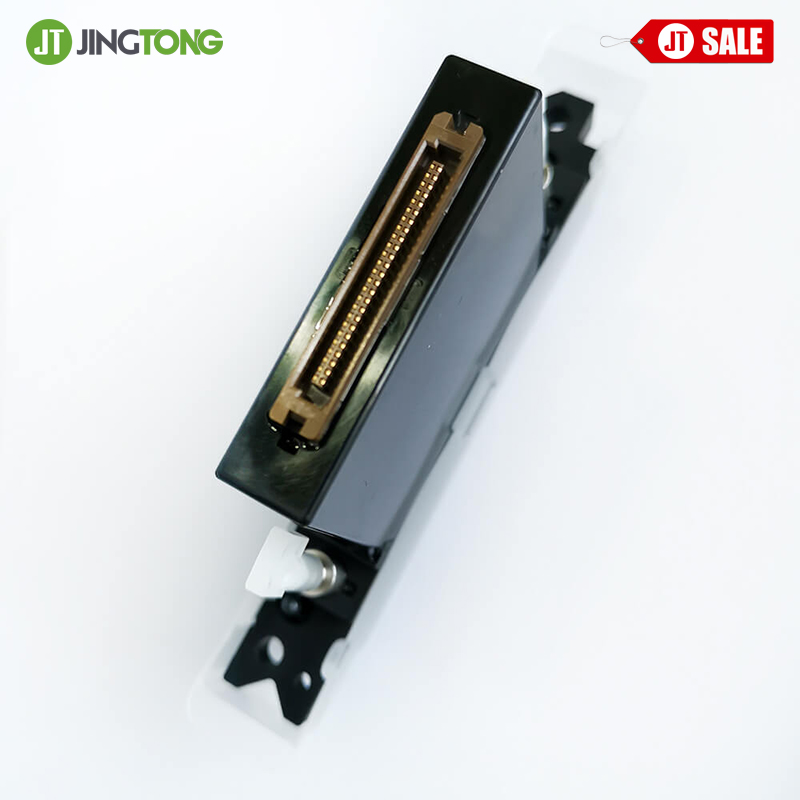

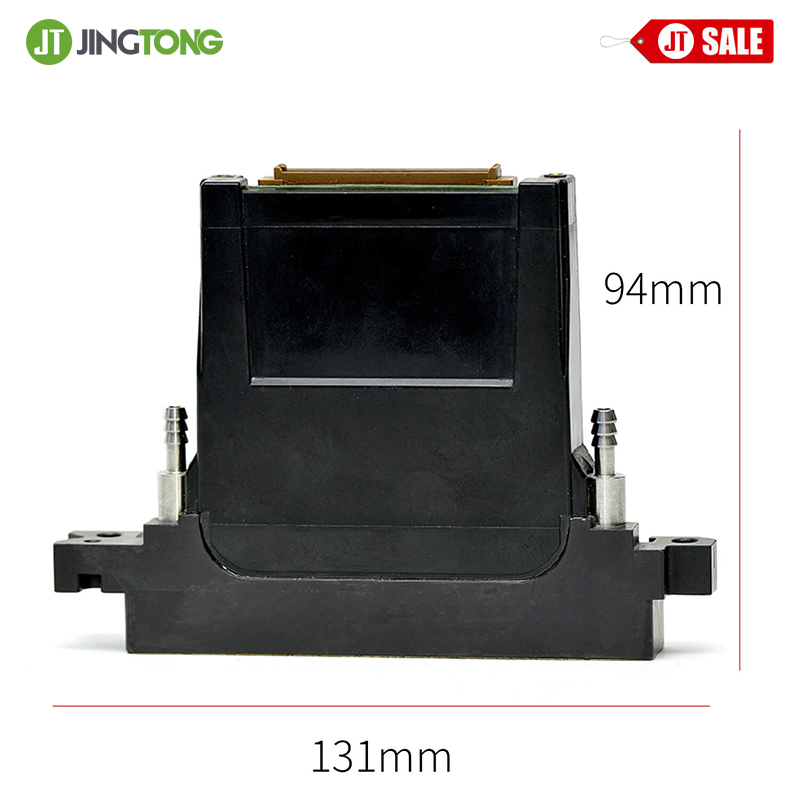

Konica KM1024i MAE-C 14PL Printhead Description
No longer using the previous 3-cycle drive method, the KM1024i printhead now adopts an independent drive system where all 1024 nozzles spray simultaneously. With a high-density structure of 256 nozzles ¡Á 4 rows arranged with high precision, the printhead position accuracy is enhanced, enabling high-precision printing.
The Konica Minolta KM1024i MAE-C printhead boasts a maximum drive frequency of 45 kHz, making it the perfect choice for developing single-pass system inkjet printers that require high-speed printing capabilities.
The Konica KM1024i MAE-C 14PL printhead is integrated with a high-performance heater to achieve stable temperature control of high-viscosity inks in the industrial field.
Konica KM1024i MAE-C 14PL Printhead Specifications
| Technology | Piezo Drop-on-Demand |
| Drive System | Independent drive system |
| Native Resolution | 360 npi (90 npi x 4 lines) |
| Cal. Droplet Size | 14 picoliters |
| Tot. Amount of Nozzles | 1024 nozzles (256 nozzles x 4 lines) |
| Print Width | 72 mm |
| Firing Frequency | 27 kHz |
| Ink Compatibility | Water-based ink |
| Heater | Integrated |
| Grey-scale | 8 levels |
