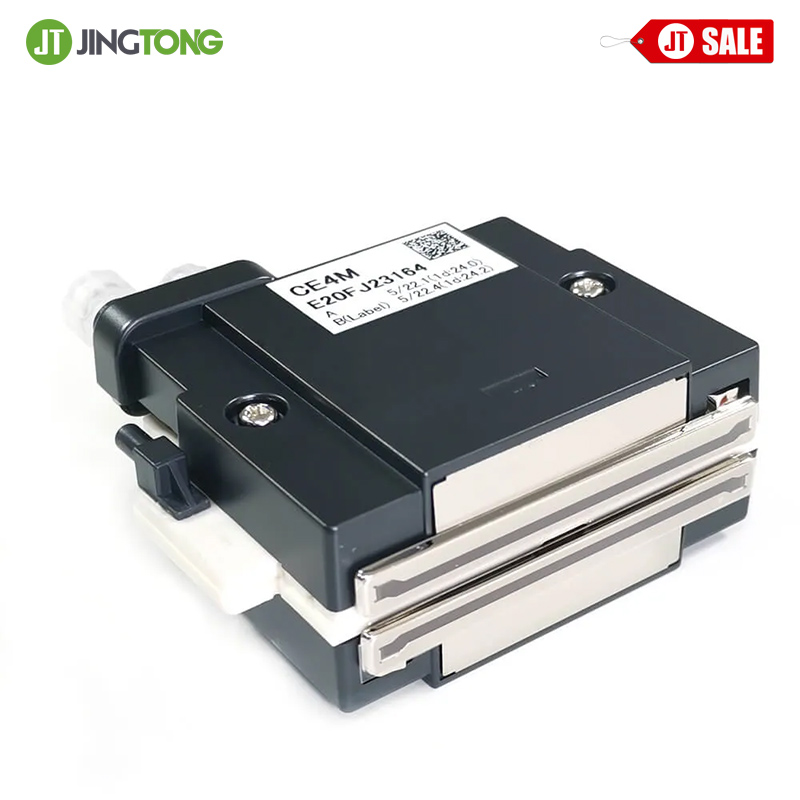

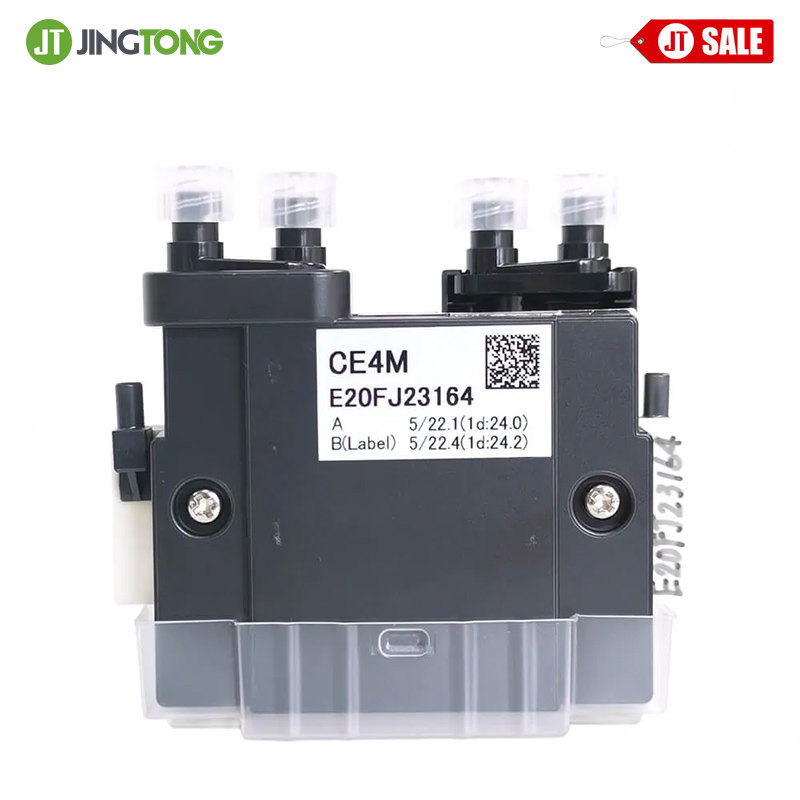

Toshiba CE4M Printhead Description
The Toshiba TEC CE4M on-demand piezoelectric inkjet printhead is engineered for industrial applications requiring high print quality. Unlike traditional binary printheads, this advanced grayscale printhead can jet multiple drops within a single dot, achieving 16 levels of gray. Each dot is formed using ink volumes ranging from a minimum of 5 picoliters to a maximum of 35 picoliters, ensuring precise dot placement and reliable jetting. It features water circulation thermal control for maintaining stability.

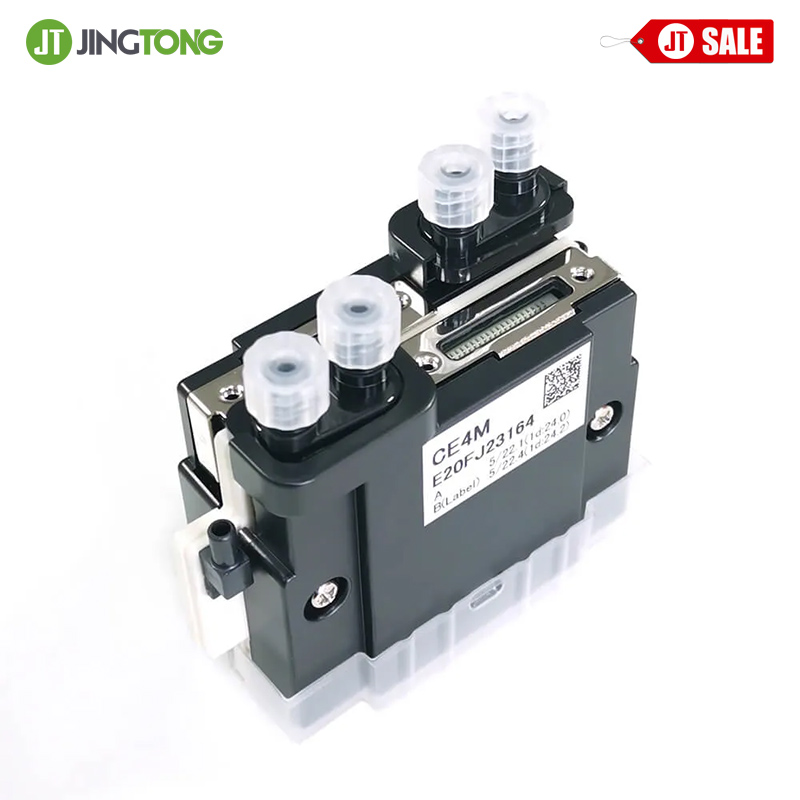

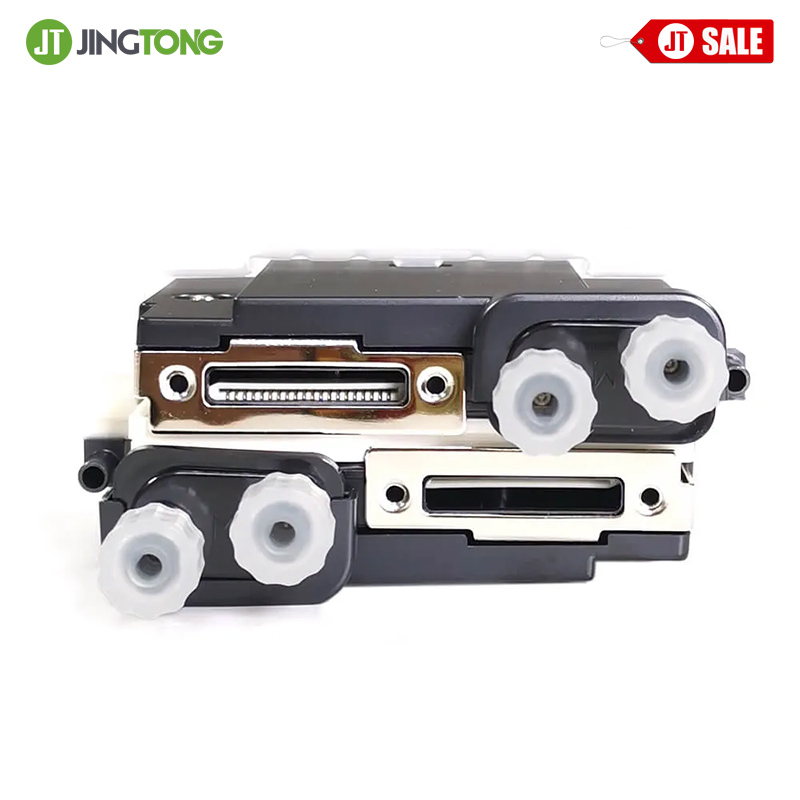

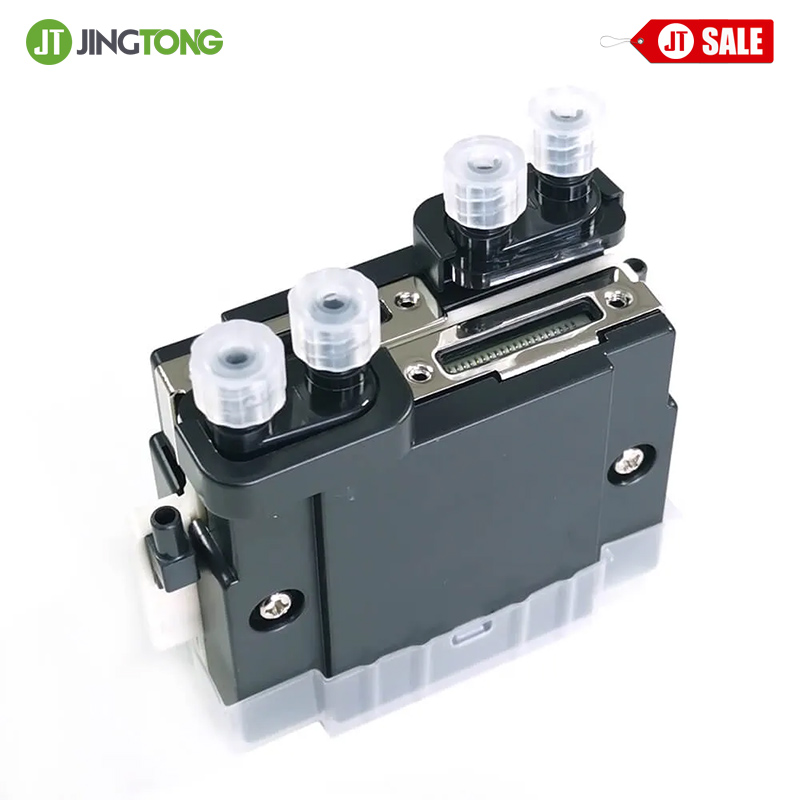

Compatible with UV-curable and oil-based inks, the Toshiba CE4M features four ink inlet ports and a chassis with an integrated water channel and full sealing for effortless temperature control.
Toshiba CE4M Printhead Specifications
| Printhead Name | Toshiba CE4M |
| Active nozzles | 636 |
| Print width | 2,11¡å (53.6 mm) |
| Nozzle pitch | 84,5 ¦Ìm |
| Grayscale levels | 16 |
| Native resolution | 150dpi |
| Max. resolution | 300 dpi |
| Printhead weight (dry) | 148 g |
| Ink compatibility | Oil-based pigment ink and UV-curable pigment ink |
| Drop volume | 5 ¨C 35 pl |
| Typical firing frequency | 2.8 ¨C 28 kHz |
| Dimension (W*D*H) | 85 x 70 x 23 mm |
Toshiba CE4M Printhead Applications
1. UV Flatbed Printing ¨C Suitable for printing on signage, acrylic, glass, metal, wood, and other materials.
2. Label & Packaging Printing ¨C Widely used in soft packaging, labels, PET films, adhesive products, and related markets.
3. Craft Printing ¨C Ideal for printing on small customized items such as toys, accessories, and wooden products.
