Mimaki UJF7151 Print Head (MP-M025074) Description

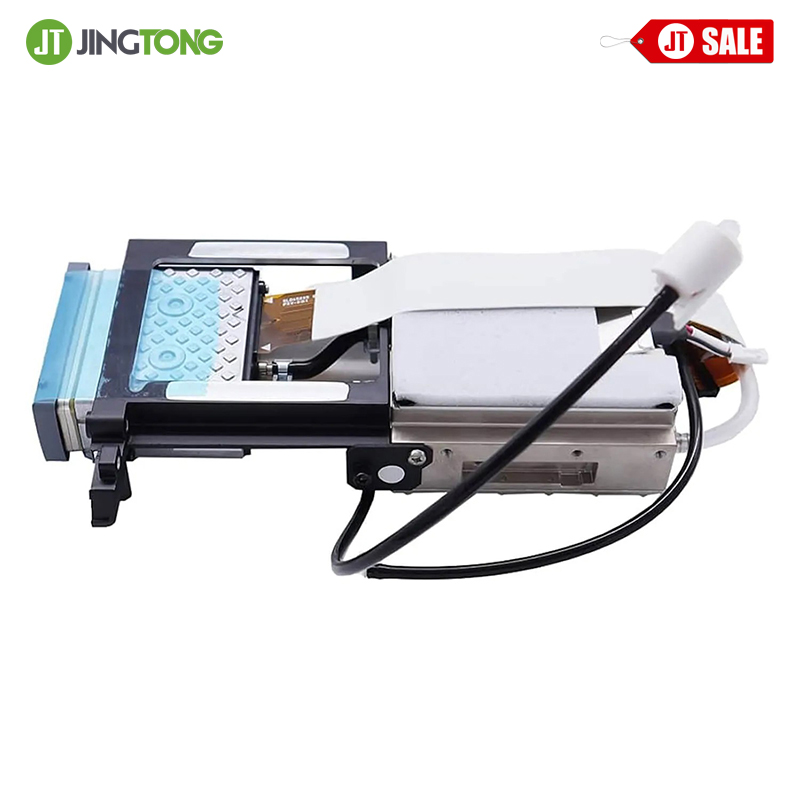

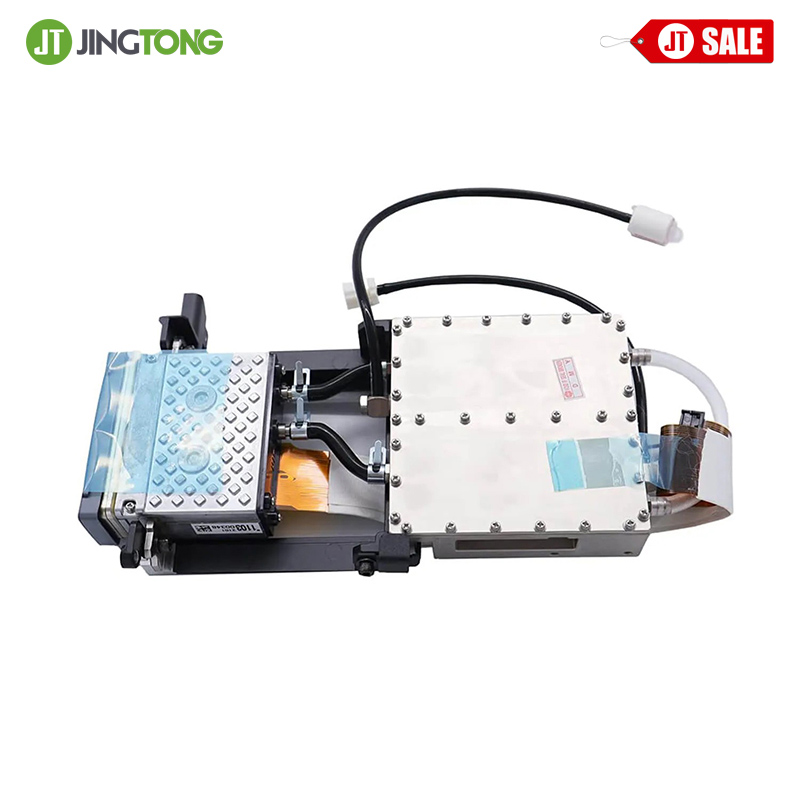

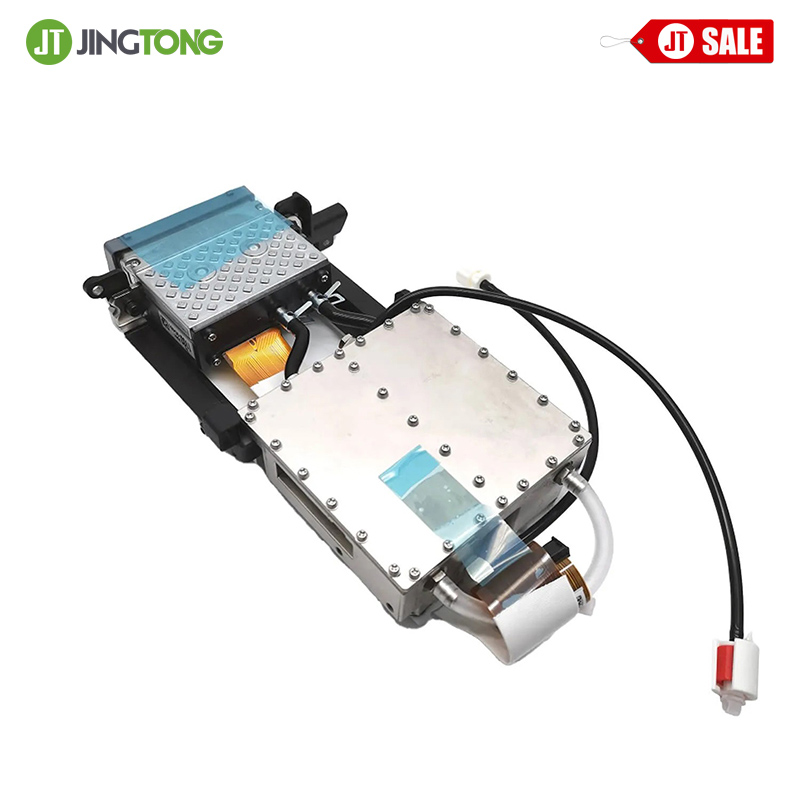

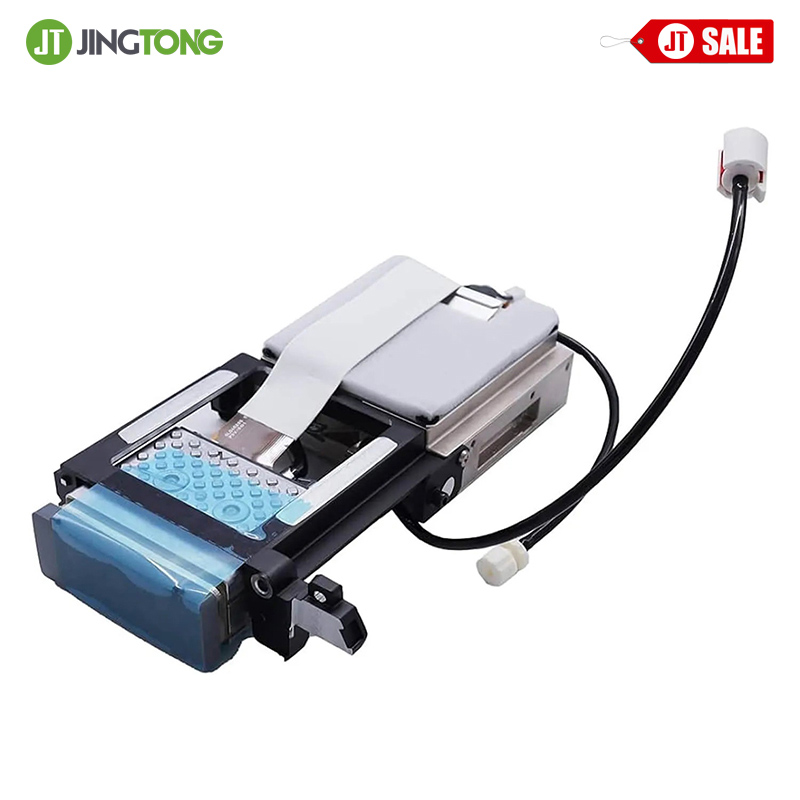

This head assembly is suitable for Mimaki UJF-7151 Plus printers. This is the original Mimaki part (number M017429 replaced by MP-M025074). This head assembly includes brackets, tubes, damper, and sub tank.
Mimaki UJF7151 Print Head (MP-M025074) Specifications
| Print Method | On-demand piezo technology |
| Number of nozzles | 636 |
| Nozzle spacing (row-to-row distance) | 4.64 mm |
| Nozzle resolution | 300 npi |
| Grayscale level | 4 levels/0, 5, 6, 7 drops |
| Drop volume | 57-80 pl |
| Frequency | 4.8 kHz/7 drops |
| Power supply voltage for driving the head | 14-31v |
| Power supply voltage for driving circuit | 5v, 39v |
| Ink type | UV-curing |
| Size | 94.1 mm (W) * 26 mm (D) * 79 mm (H) |
| Weight | 161 g |
