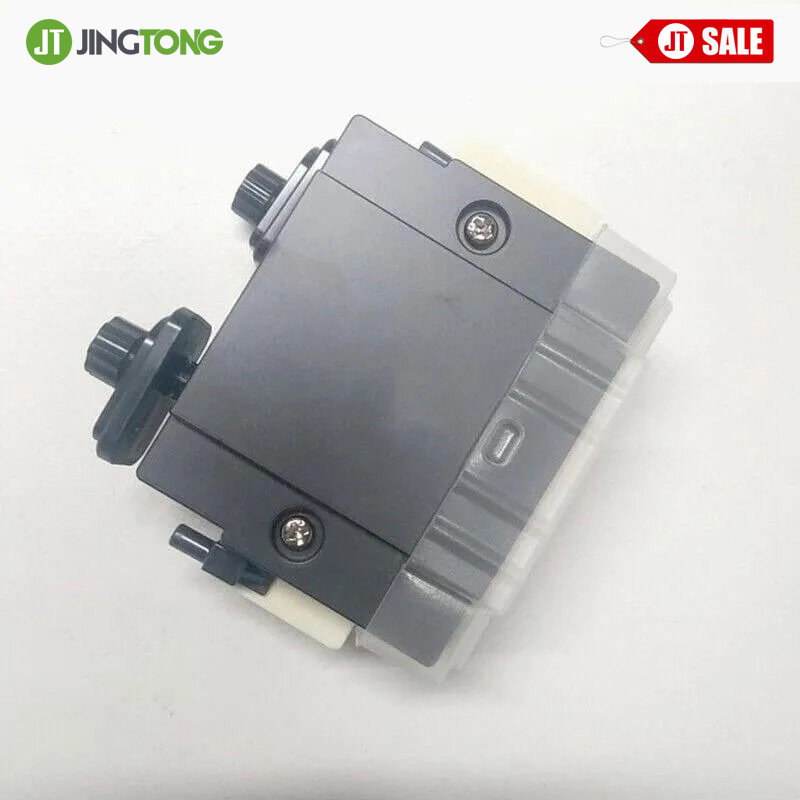

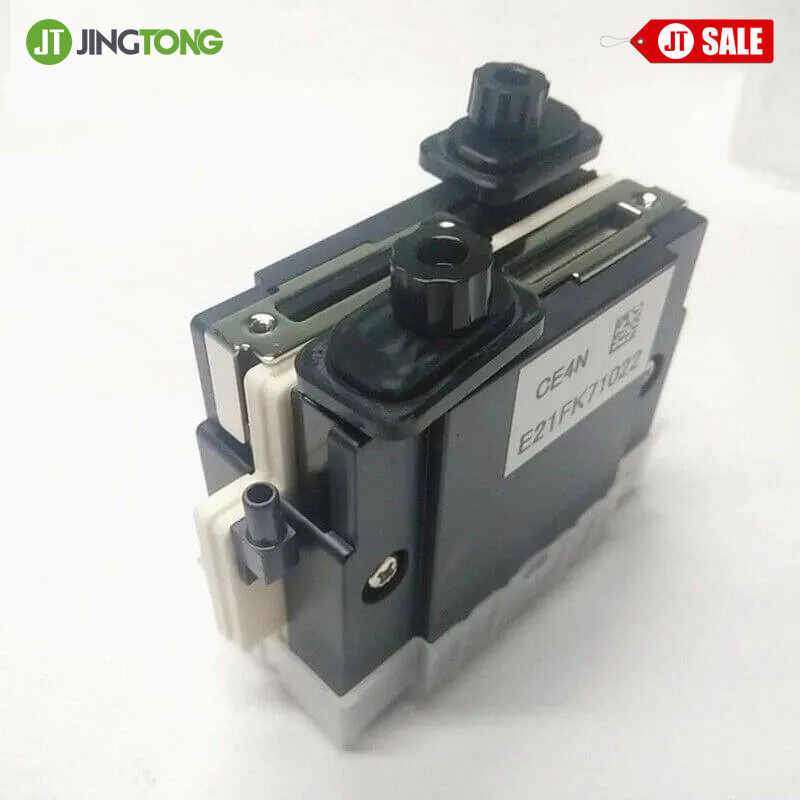

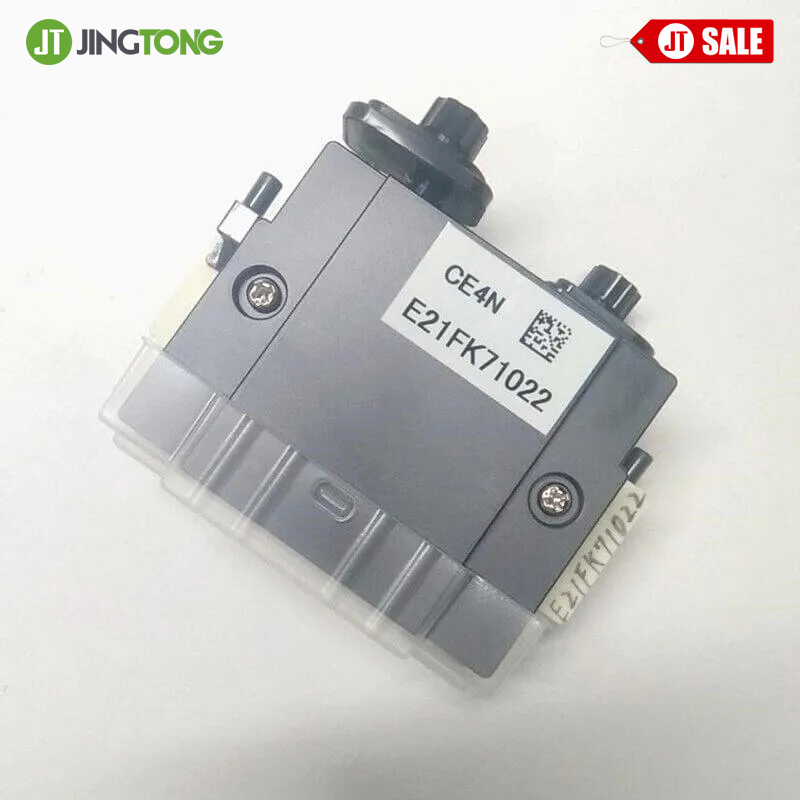

CE4 HEAD ASSY UJF MK-II-M018821 Description
This Printhead Assy is suitable for the Mimaki UJV / JFX / UJF-706 Printers. This is the original Mimaki part (number M018821 replacing M008386 & KX-CE308644CS-CE4). This part does not include the metallic bracket that can be easily re-used from the previous head.
The latest printhead code is CE4N, the same as the previous CE4 code.
CE4 HEAD ASSY UJF MK-II-M018821 Specifications
| Active nozzles | 318 |
| Print swathe width | 53.6 mm |
| Grayscale levels | 16 |
| Nozzle pitch | 169 ¦Ìm |
| Native resolution | 150dpi |
| Printhead weight (dry) | 148 g |
| Ink compatibility | Oil-based pigment ink and UV-curable pigment ink |
| Drop volume | 6 ¨C 90 pl |
| Typical firing frequency | 2.8 ¨C 28 kHz |
| Dimension (W*D*H) | 85 x 70 x 23 mm |
