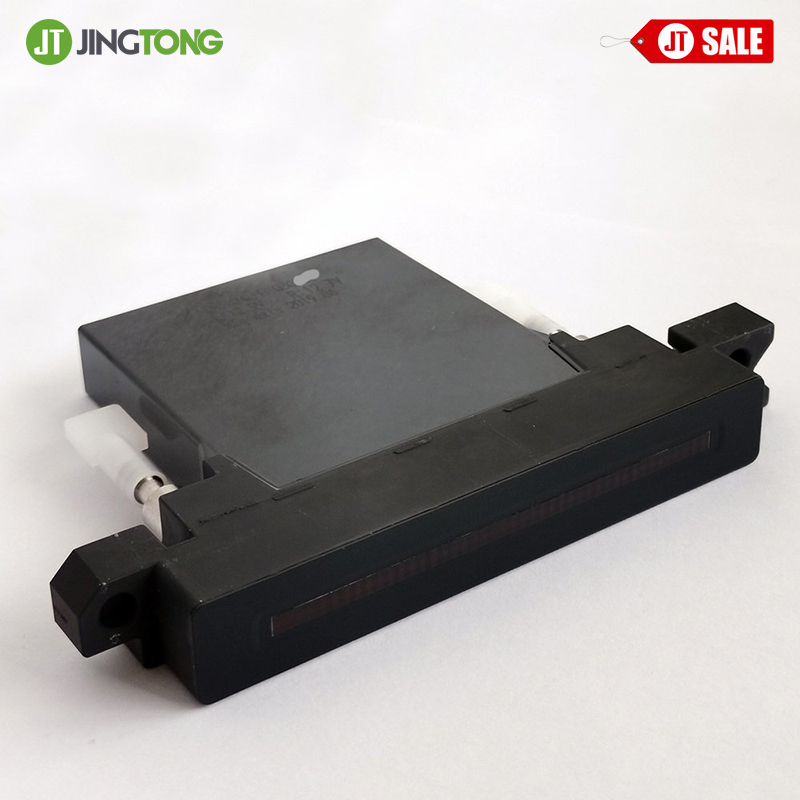

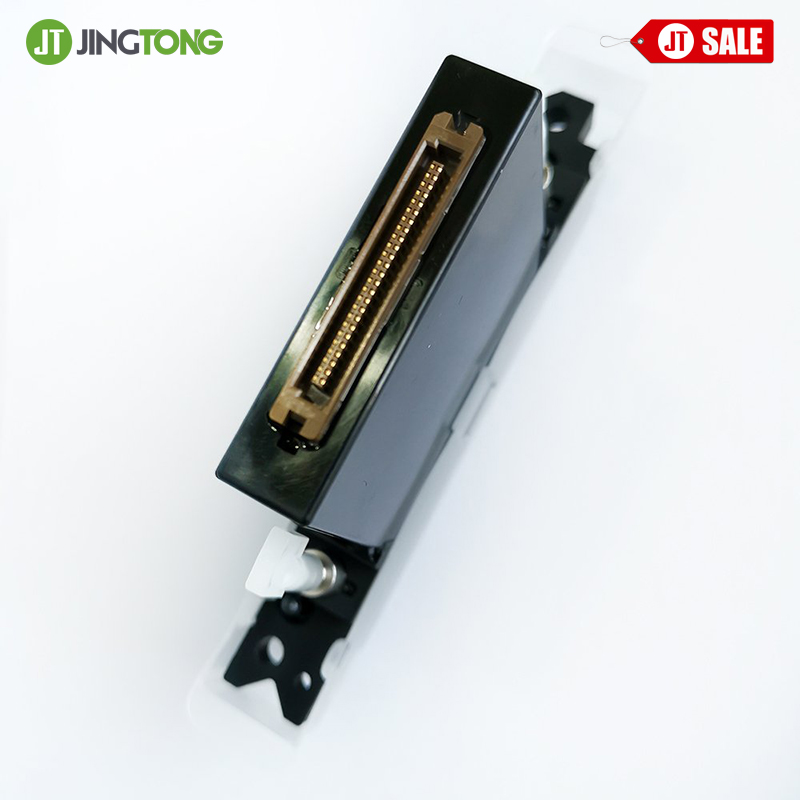

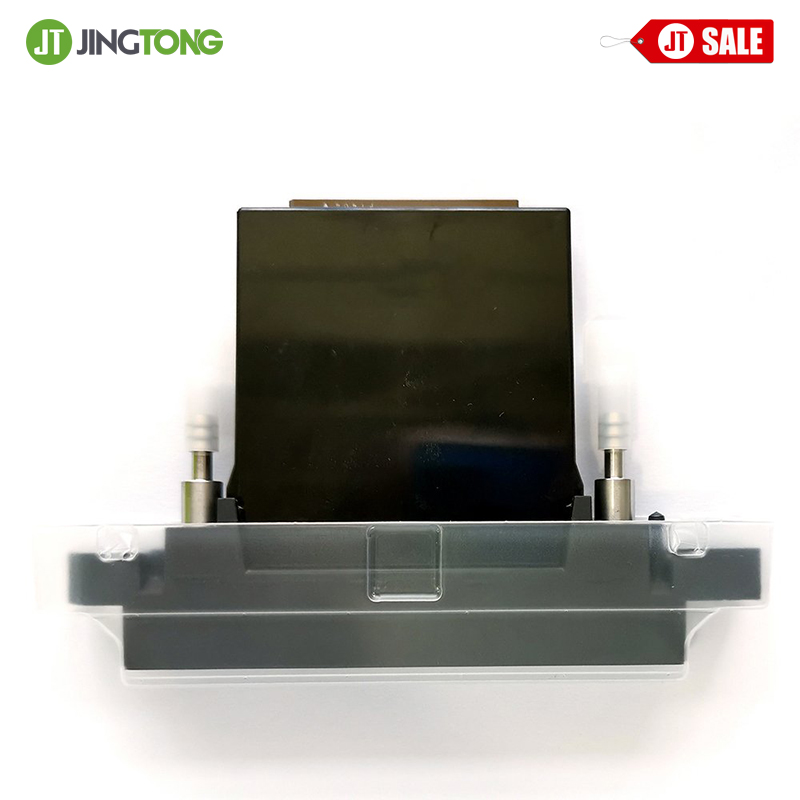

Konica KM1024 MNB 14PL Printhead Description
The Konica Minolta KM1024 MN printhead, also known as the Konica Minolta KM1024 MNB, features 1024 nozzles with a droplet size of 14 picoliters and a native resolution of 360 dpi, achieving high-quality printing. It is compatible with oil-based and solvent inks. This unit is equipped with twice the number of nozzles as the Konica Minolta 512 printhead, providing the high density required to achieve 72 mm print width.
Konica KM1024 MNB 14PL Printhead Specifications
| Technology | Piezo Drop-On-Demand (Shared wall 3 cycle) |
| Native Resolution | 180 dpi ¡Á 2 lines = 360 dpi |
| Cal. Droplet Size | 14 picoliters |
| Tot. Amount of Nozzles | 512 nozzles ¡Á 2 lines = 1024 nozzles |
| Nozzle Spacing | 70.5 ¦Ìm (141 ¦Ìm ¡Á 2 lines) |
| Print Width | 72 mm |
| Firing Frequency | 12.8 kHz |
| Ink Compatibility | Solvent- and oil-based ink |
| Heater | Not integrated |
| Grey-scale | 8 levels |
