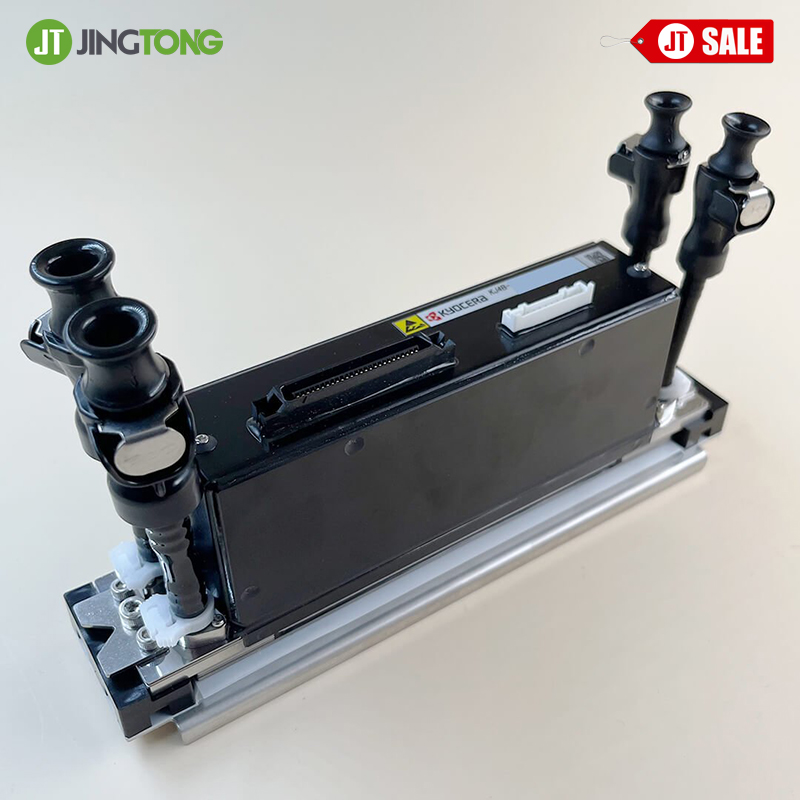

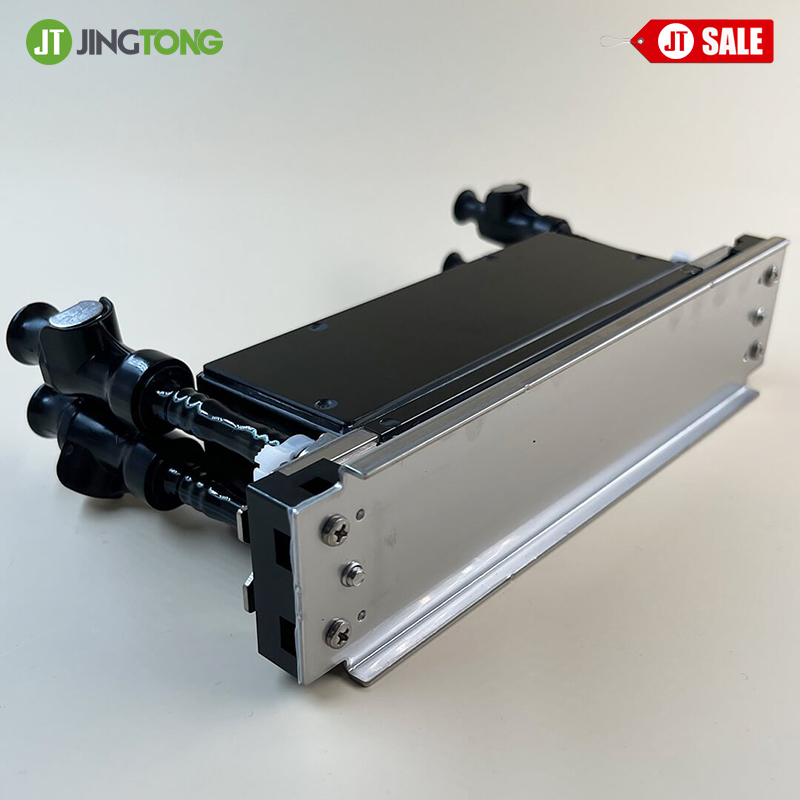

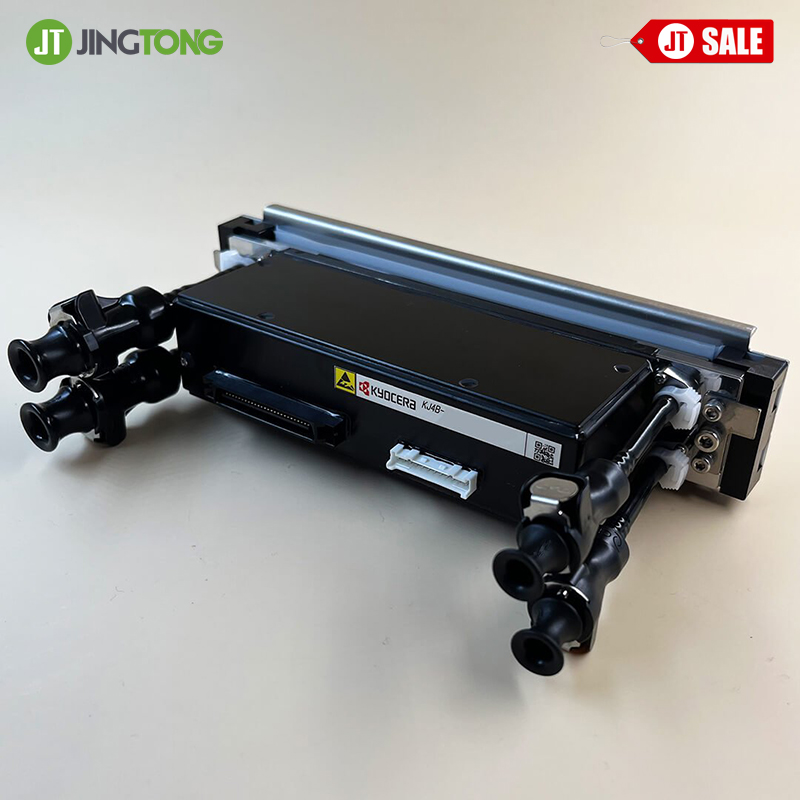

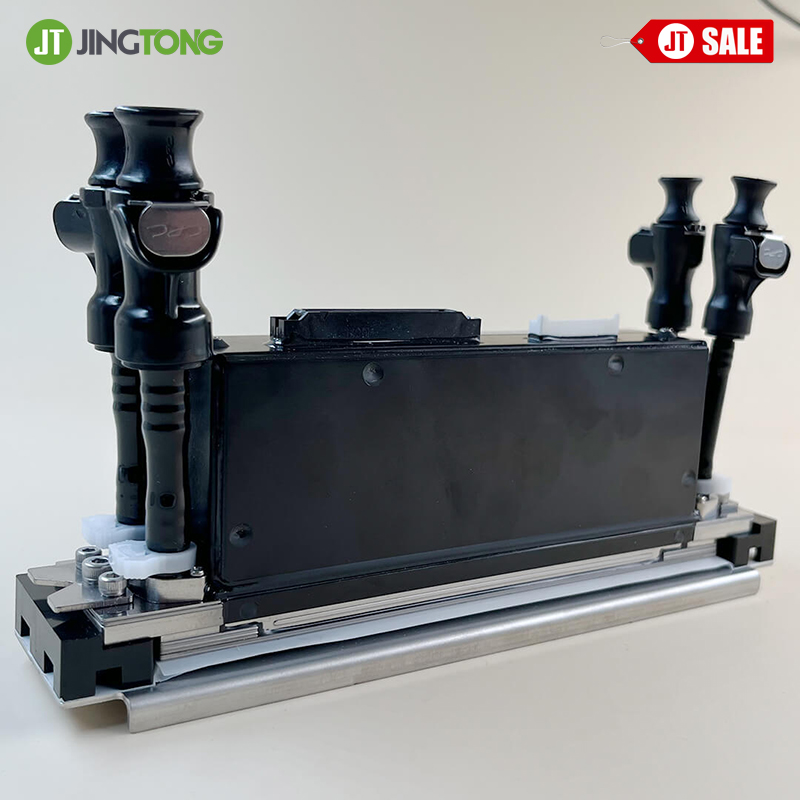

Kyocera KJ4B-0300 Printhead KJ4B-0300-RO6DS-STD1

Brand: Kyocera
Model: KJ4B-0300-RO6DS-STD1
Ink Type: AQ ink
Dimensions: 200 ¡Á 36 ¡Á 68.5mm
Original or Not: Original
New or Used: Brand New
Warranty Policy: No Warranty
Country of origin: Japan

Delivery:

Payment:

*For more information about this printer part, you can send us an inquiry.

Get Quotes Send Inquiries

Product Details

Kyocera KJ4B-0300 Printhead Description

This 600 dpi printhead features a maximum drive frequency of 30 kHz, achieving high-quality printing with a small drop volume of 5 pl at 75 m/min. The printhead has 2,656 built-in nozzles that are arranged across a 112.35 mm wide print swathe. Its unique ink channel design provides a stable ink supply.

The printhead has 2,656 built-in nozzles and can eject about 150 million dots per second. To increase the speed, the printhead mainly adopts measures such as increasing the driving frequency, improving the nozzle shape, and adjusting the waterproof film material.

Kyocera KJ4B-0300 Printhead Specifications

Number of Nozzles		2656 (2558)
Effective Print Width (mm)		112.35
Ink		AQ
Maximum Drive Frequency (kHz)		30
Resolution (dpi)		300 dpi * 600 dpi
Print Speed *1 (m/min)		76.2
Print Speed*1 (pl)	Minimum	5
	Maximum	12
Nozzle Recirculation		No
WidthLengthHeight (mm)		2003668.5
Recommended Ink Viscosity2 (mPa s)		6.0~7.0

Kyocera KJ4B-0300 Printhead Applications

Kyocera KJ4B-0300 Printhead Models:

KJ4B-0300	KJ4B-0300-RO6DS-TEX2
	KJ4B-0300-RO6DS-STD1
	KJ4B-0300-RO6DS-HG2
	KJ4B-0300-RO6DS-HTC1
	KJ4B-0300-R06DS-MSS1
	KJ4B-0300-GO6DS-MSS1
	KJ4B-0300-GO6DS-MSS1
	KJ4B-0300-GO6DS-AMS1
	KJ4B-0300-GO6DS-AMS1
	KJ4B-0300-GO6DS-NKS1
	KJ4B-0300-V06DS-DG11
	KJ4B-0300-V06DS-HG1
	KJ4B-0300-V06DS-TEX1
	KJ4B-0300-K06DS-HTP2
	KJ4B-0300-F06DS-MSS1
