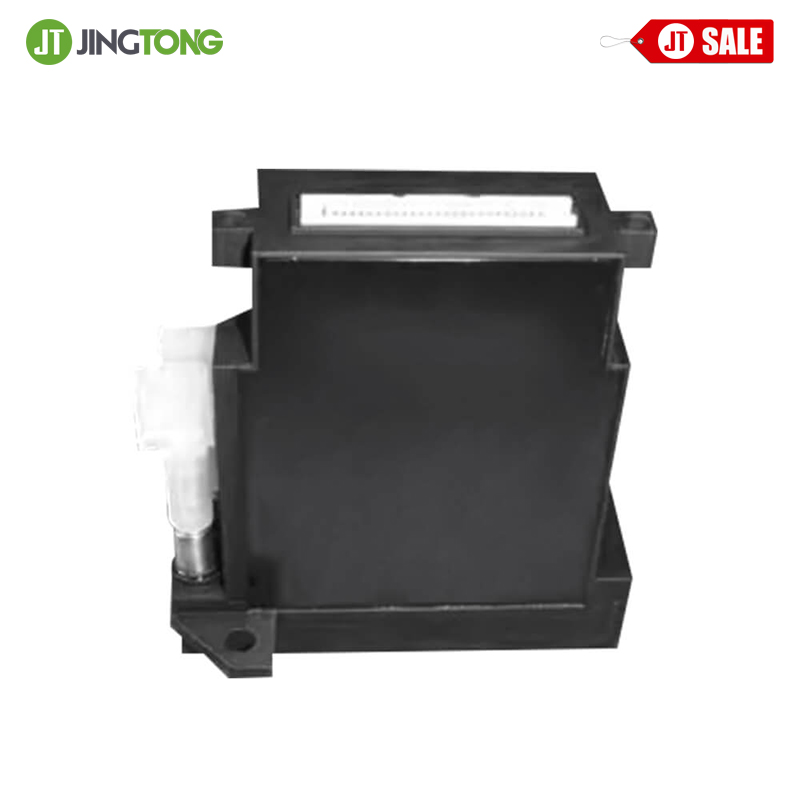

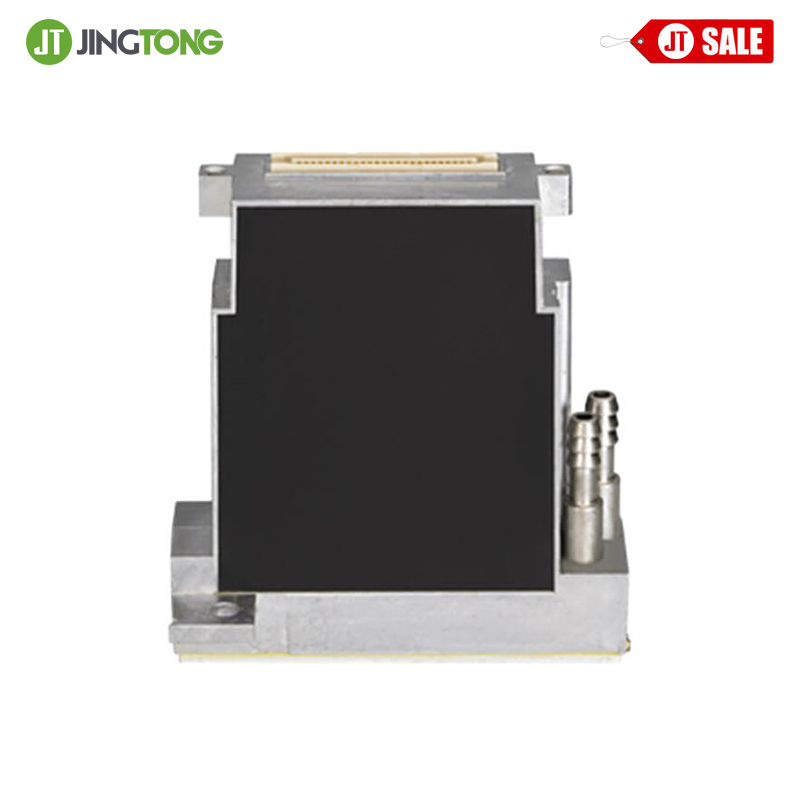

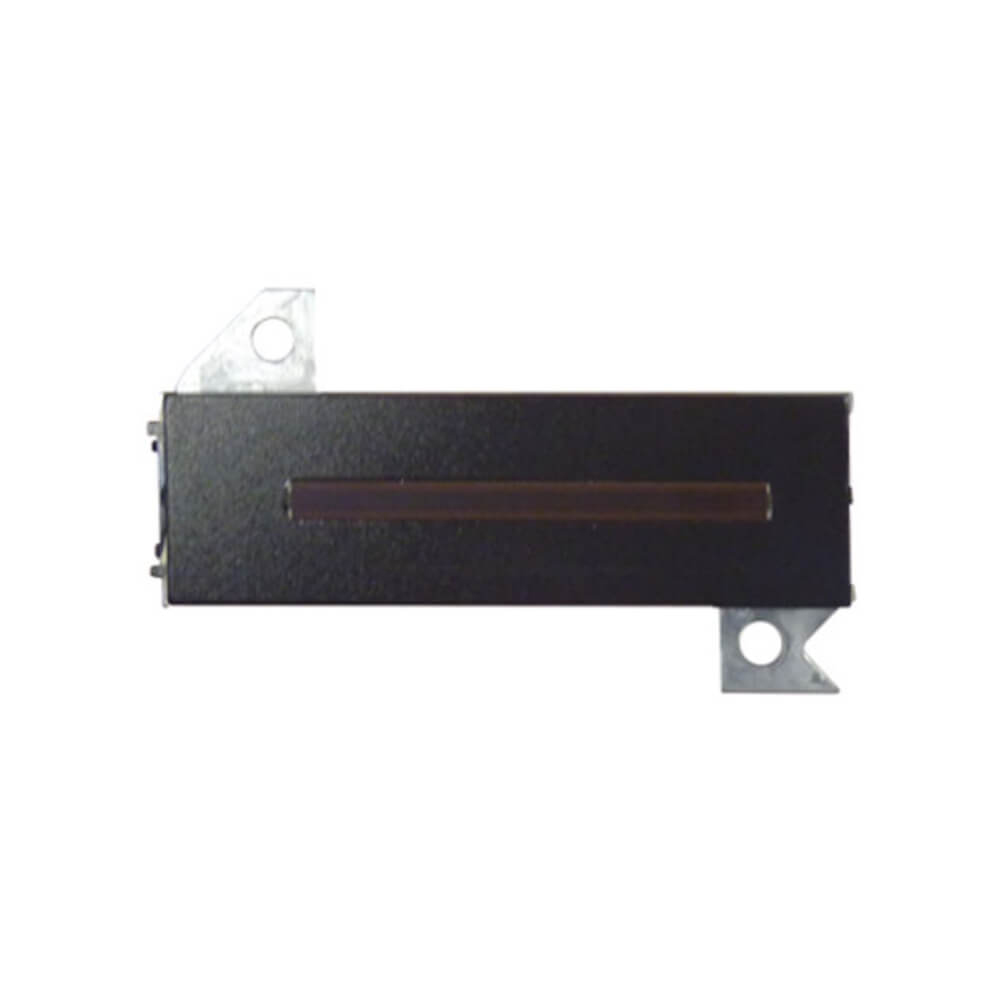

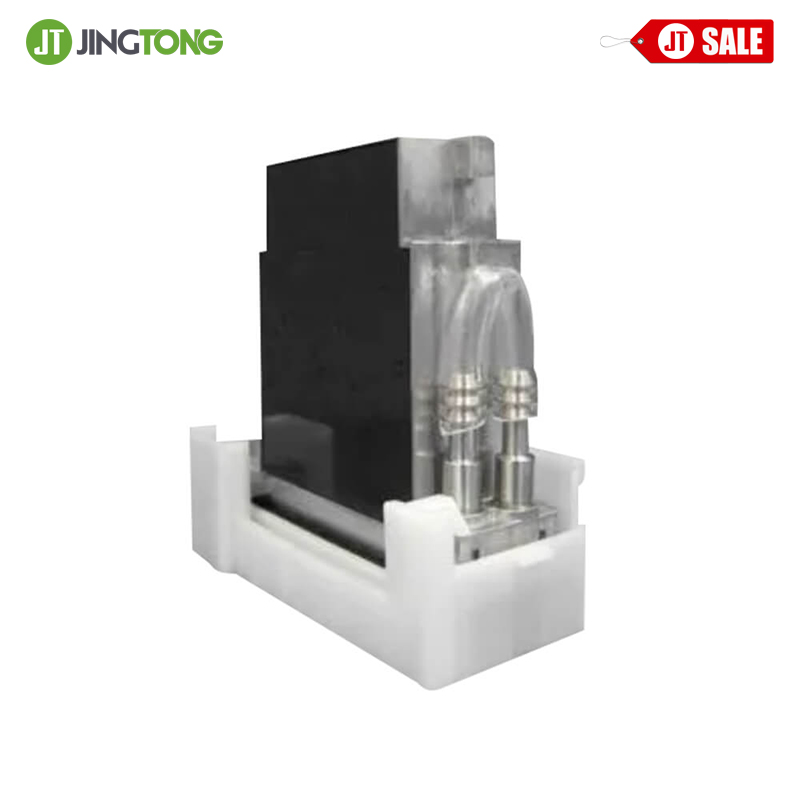

Konica KM512LH 42PL Printhead Description
The Konica 512-42LH printhead features 512 nozzles with a droplet size of 42 picoliters and a native resolution of 360 dpi to achieve high-quality printing. Unlike thermal printheads, piezoelectric printheads have no restrictions on the types of ink that can be used. They are compatible with various inks, including solvent, UV, and oil-based inks. For high-viscosity inks like UV inks, the KM512 42pl head is integrated with a heater to ensure optimal performance.
Konica KM512LH 42PL Printhead Specifications
| Technology | Piezo Drop-On-Demand (Shared wall 3 cycle) |
| Native Resolution | 180 dpi ¡Á 2 lines = 360 dpi |
| Cal. Droplet Size | 42 picoliters |
| Tot. Amount of Nozzles | 512 (256 nozzles per line) |
| Nozzle Spacing | 70.5 ¦Ìm (141 ¦Ìm ¡Á 2 lines) |
| Print Width | 36.1 mm |
| Firing Frequency | 7.6 kHz |
| Ink Compatibility | Oil-Based, Solvent, and UV Inks |
| Heater | integrated |
