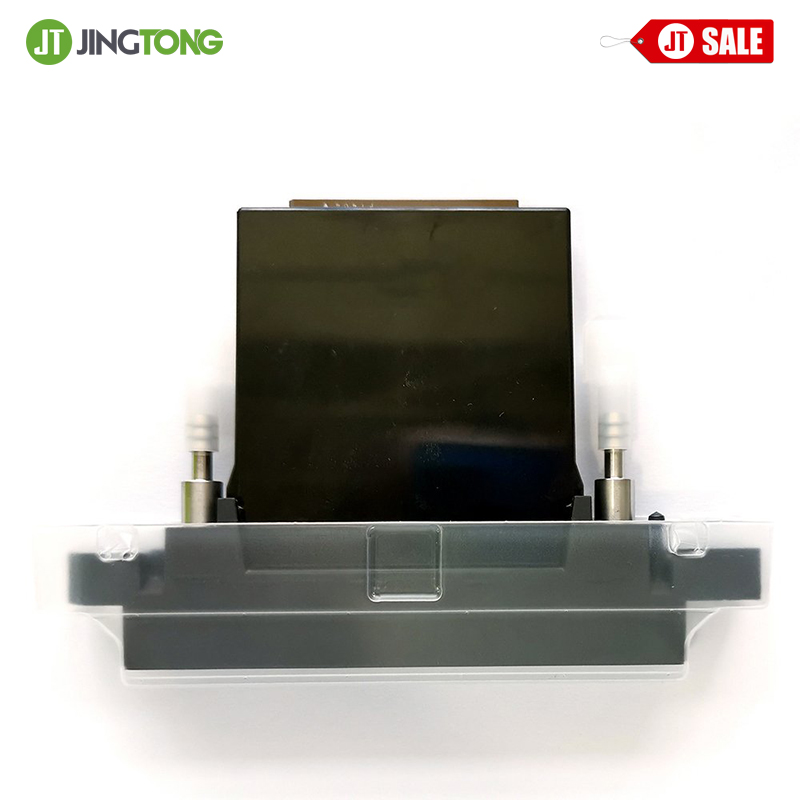

Konica KM1024 3688H / REVO-E Printhead Description
The Konica Minolta KM1024 3688H/REVO-E printhead, also referred to as the Konica Minolta KM1024 SHB printhead, is a durable, shear-mode, piezo on-demand printhead capable of operating in both binary and 8-level greyscale modes. This allows for variable drop sizes and higher print quality without requiring additional print heads.
It represents a significant advancement over the KM512 series, offering double the print width and greyscale levels. Konica Minolta¡¯s piezo-on-demand inkjet heads operate at lower voltages than other inkjet heads, and the new actuator in the KM1024 further reduces power consumption.
The Konica Minolta KM1024 SHB print head features 1024 nozzles, a droplet size of 6 picoliters, and a native resolution of 360 dpi. It is ideal for UV and solvent inks because it is integrated with a heater.
Konica KM1024 3688H / REVO-E Printhead Specifications
| Technology | On-Demand Piezo Electric (Shared Wall 3 Cycle) |
| Native Resolution | 360 npi (90 npi x 4 lines) |
| Cal. Droplet Size | 6 picoliters |
| Tot. Amount of Nozzles | 1024 (512 nozzles per line) |
| Print Width | 72 mm |
| Firing Frequency | 26 kHz |
| Ink Compatibility | UV and Solvent Inks |
| Heater | Integrated |
| Grey-scale | 8 levels |
