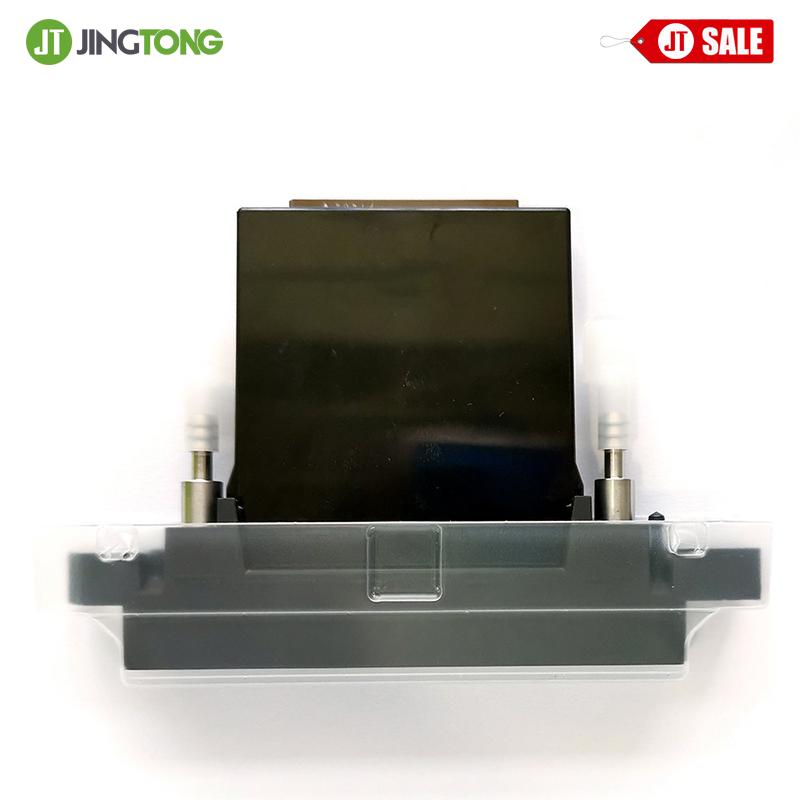

Konica KM HS2000 Printhead Description
The Konica HS2000 printhead, a replacement of the Konica Minolta KM1024i SHE 6pl printhead, features 1024 nozzles with a droplet size of 6 picoliters and a native resolution of 360 dpi to achieve high-quality printing. It offers a maximum drive frequency of 56 kHz, approximately three times greater than that of the KM1024 series, making it ideal for developing single-pass system inkjet printers capable of high-speed printing.
Like the previous KM1024 series, it is equipped with a high-performance IC. It can print up to 8 grayscale levels. It can be used for new applications that require richer grayscale levels and high-precision image quality.
Konica KM HS2000 Printhead Specifications
| Technology | Piezo Drop on Demand |
| Drive System | Independent drive system |
| Native Resolution | 360 npi (90 npi x 4 lines) |
| Cal. Droplet Size | 6 picoliters |
| Tot. Amount of Nozzles | 1024 nozzles (256 nozzles x 4 lines) |
| Print Width | 72 mm |
| Firing Frequency | 56 kHz |
| Ink Compatibility | UV, Oil, and Solvent Inks |
| Heater | Integrated |
| Grey-scale | 8 levels |
| Dimensions | W131mm x D18mm x H94mm |
| Weight | Approx. 150g |
