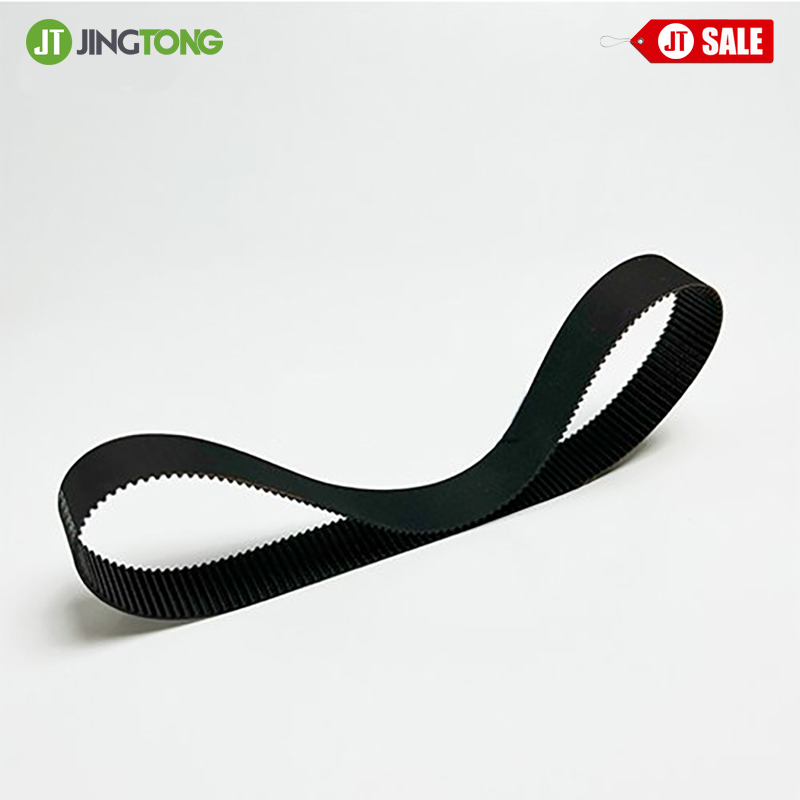

The HTD 3M Timing Belt is a precision synchronous belt designed for motion transmission in wide-format printers and other equipment. It is commonly used in carriage drive, scanning, media feed, cleaning station, and other motion-control systems.
With a 3 mm tooth pitch and HTD tooth profile, the belt provides accurate engagement with compatible timing pulleys, helping maintain stable and synchronized printer movement.
Belt model reference: 363-HTD3M-20mm, 615-HTD3M-15mm, 357-HTD3M-35mm, 234-HTD3M-14mm, etc.
Key Features
- HTD 3M tooth profile with 3 mm pitch
- Accurate and stable power transmission
- Suitable for printer carriage and motion systems
- Multiple belt lengths and tooth counts available
- Multiple width options for different printer configurations
- Suitable for replacement and maintenance applications
- Custom sizes available according to requirements
Applications
HTD 3M timing belts are widely used in the motion systems of:
- Wide-format inkjet printers
- Eco-solvent printers
- Solvent printers
- UV printers
- Digital printing equipment
- Carriage drive systems
- Media feed systems
- Scanning and positioning systems
- Cleaning and maintenance stations

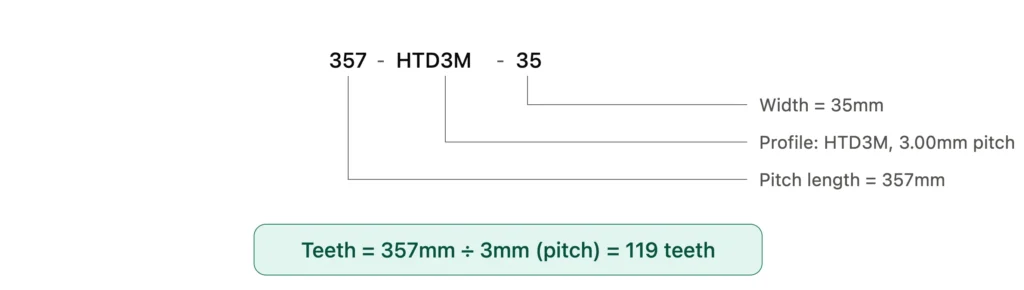

How to Read Your Belt Spec:
