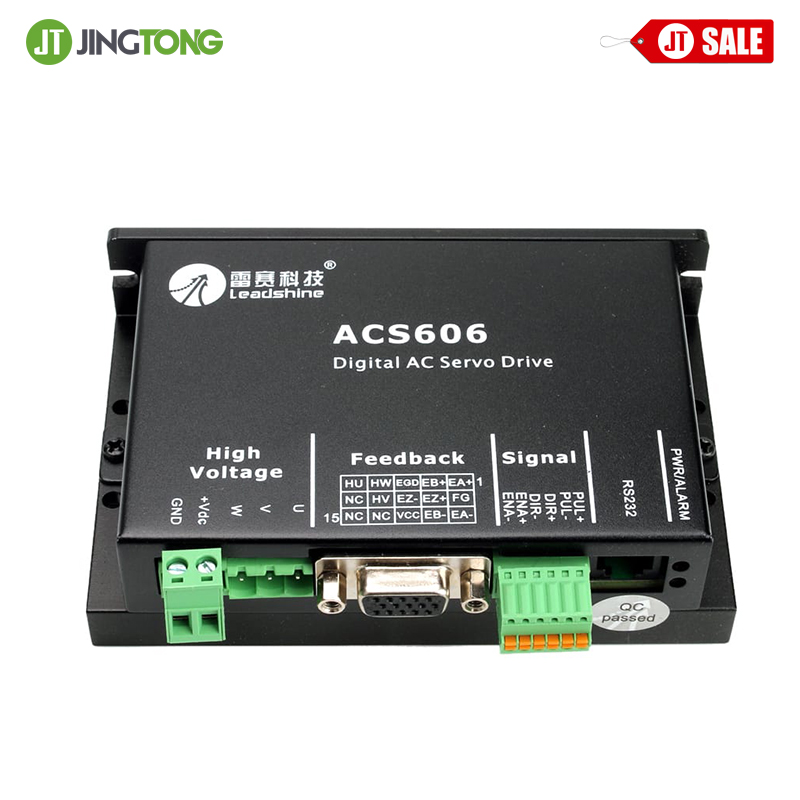

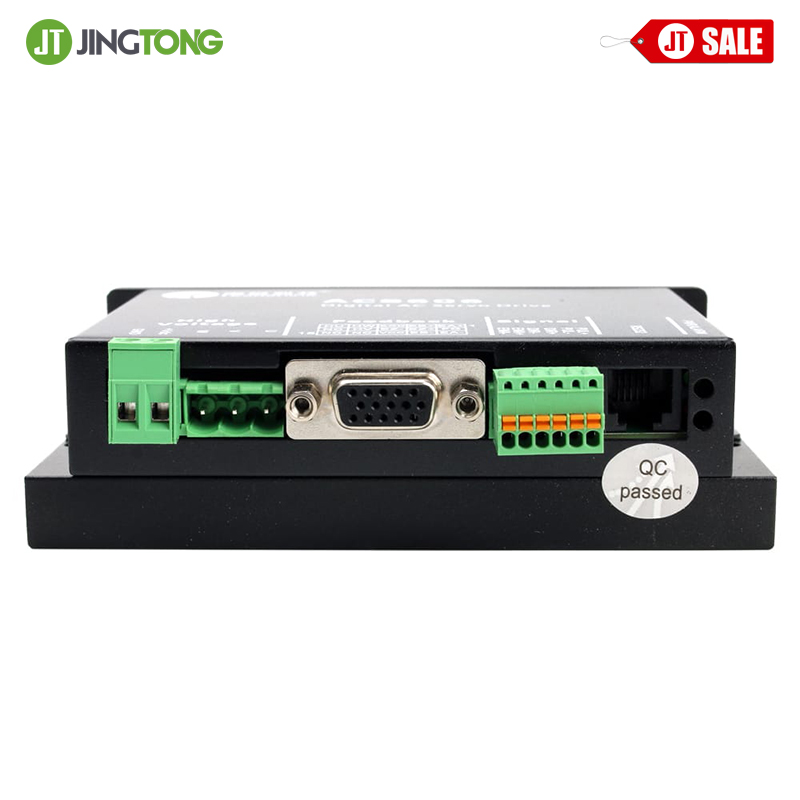

Leadshine ACS606 AC Servo Drive Description
Leadshine’s fully digital AC servo drive ACS606 can offer high precision, high speed, and high-reliability performance, and is widely used in inkjet printers, engraving machines, etc.
Leadshine ACS606 AC Servo Drive Features
- Input: 18 – 60VDC,
- Peak Current: 15A, Continuous Current: 6 A (Max), 10 – 200 W
- FOC-SVPWM technologies
- PC-based and handheld configuration tools
- Electronic gear rate from 1/255 to 255
- Self-test function with trapezoidal velocity profile
- Support PUL/DIR and CW/CCW control signals
- Opto-isolated, supports single-ended and differential inputs
- Following the error lock range adjustable
- Over-voltage, over-current, encoder failure protections
- 10 latest failures self-record function
- Small size, surface-mount technology
