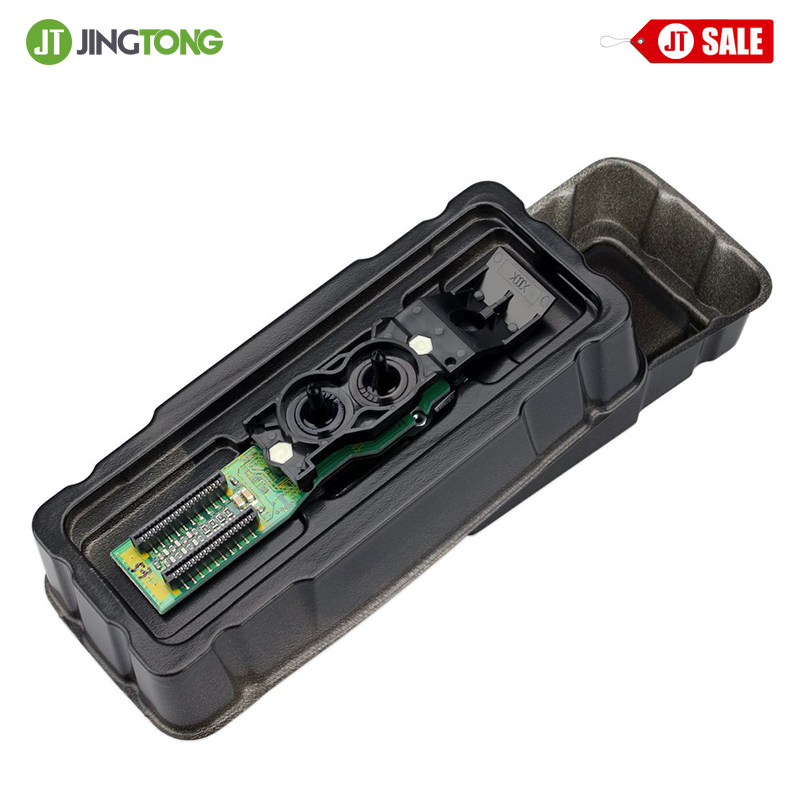

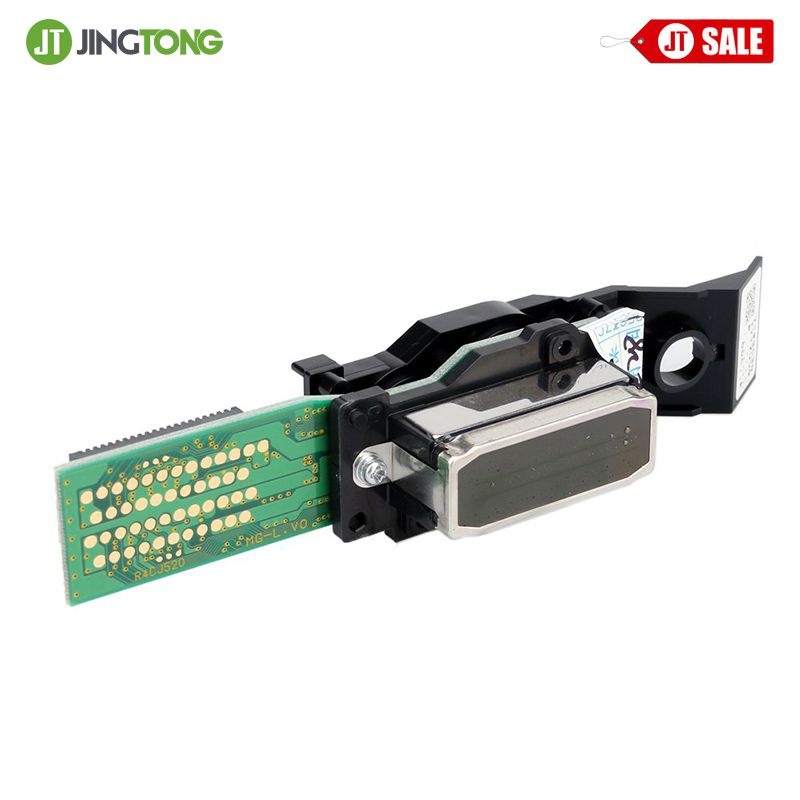

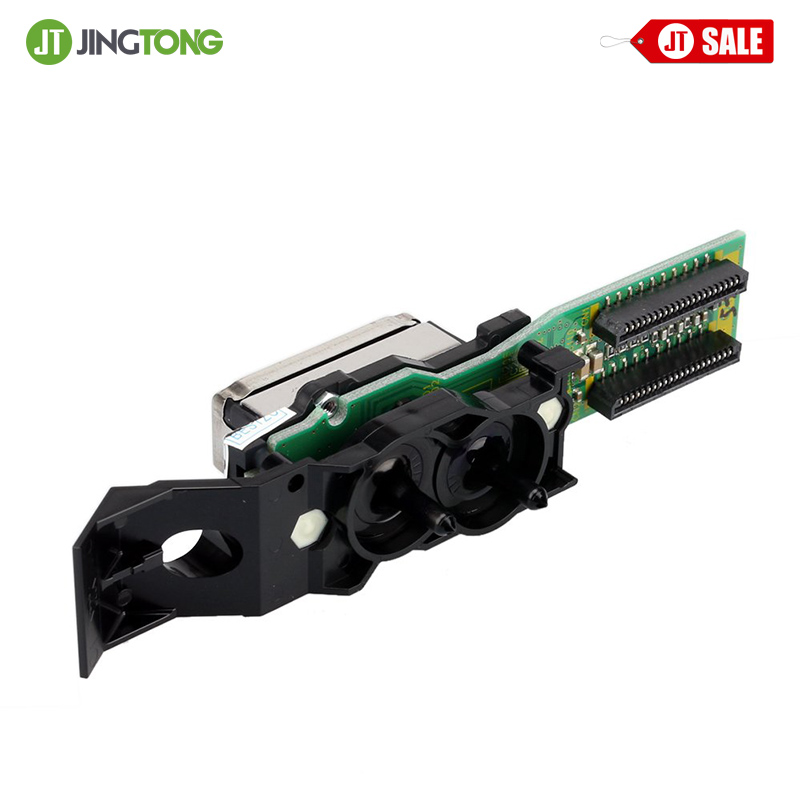

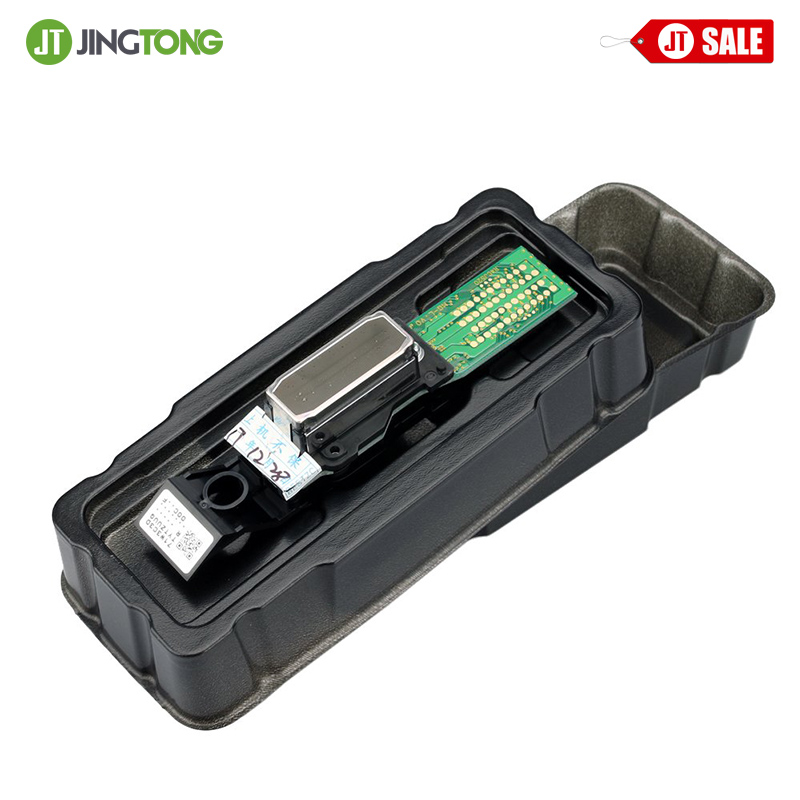

Epson DX4 Printhead Description
The Epson DX4 solvent printhead is compatible with Roland, Mutoh, and Mimaki eco-solvent, mild solvent, and aqueous printers. This micro-piezo printhead features a native resolution of 360 dpi, two nozzle lines (each corresponding to an independent ink channel), and 180 nozzles per line.
With a typical firing frequency of 8 kHz and a minimum droplet size of 3.5 picoliters, the Epson eco-solvent DX4 head can be used for either one color through both channels or two colors through the independent channels.
This original DX4 eco-solvent printhead for Epson/Roland/Mimaki/Mutoh printers is ideal for a variety of wide-format printing applications, including eco-solvent and mild solvent printing.
Note: When installing a new Epson DX4 print head, replace the head cables to ensure optimal performance and protect the printhead.
Product Reference:
Brand: Epson
Part#: Roland part number 1000002201/22805470/6000005213, Mutoh part number DF-49684/DG-42386, Mimaki part number M004372/M004905
Alternative name: Roland SP 540i print head, Roland XC 540 print head, Roland SP540v print head, Roland SP300v printhead, Roland VP 540 print head, Roland SP540i print head, Roland SP300 print head
Epson DX4 Printhead Specifications
| Technology | Micro-Piezo |
| Native resolution | 360 dpi |
| Printing Width | 1¡å (25.4 mm) |
| Min. Droplet Size | 3.5 picoliter |
| Total Amount of Nozzles | 360 (2 lines x 180 nozzles) |
| Firing Frequency | 8 kHz |
| Ink Compatibility | Eco-solvent and mild solvent |
| Dimensions (WxDxH) | 0.94¡å x 4.4¡å x 1.45¡å (24 mm x 112 mm x 37 mm) |
