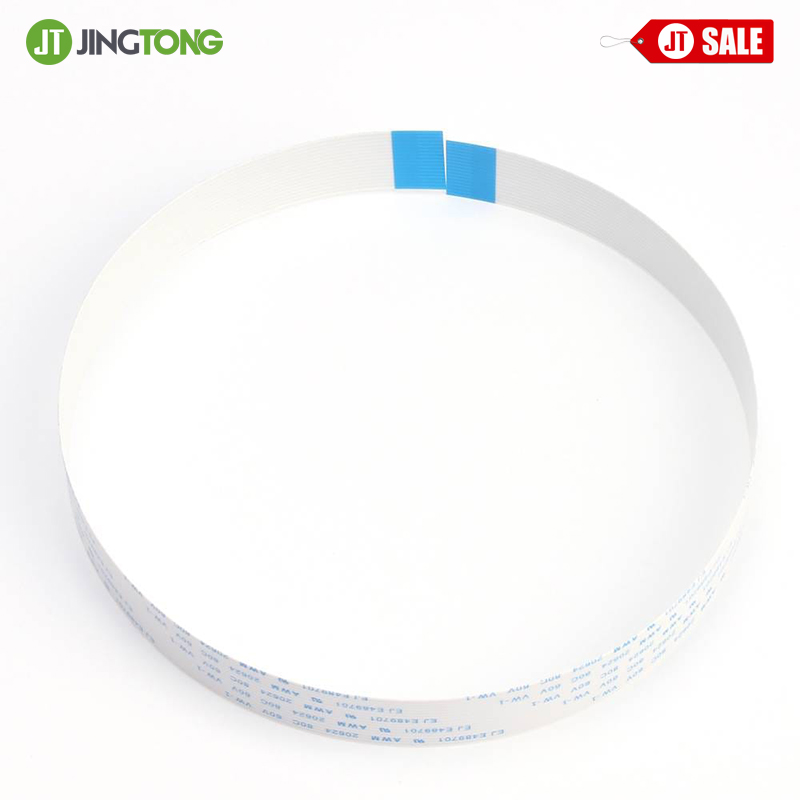

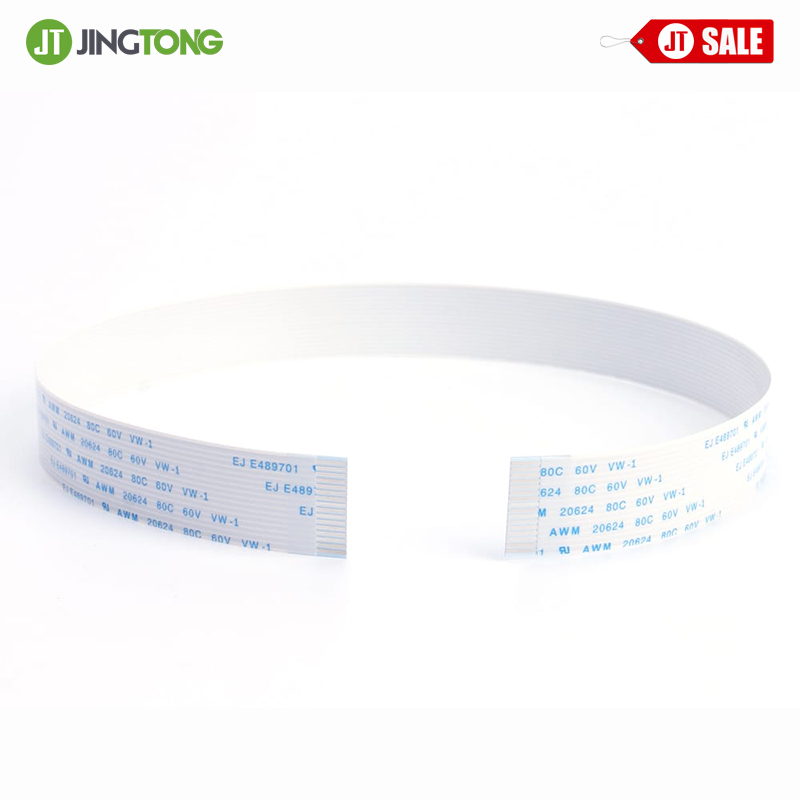

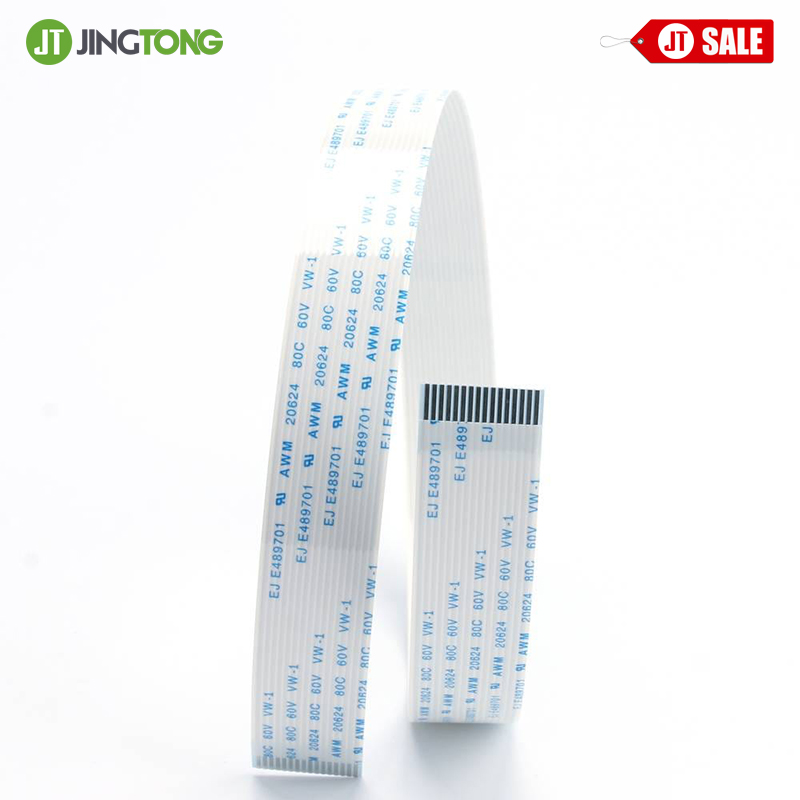

Epson 5113 Printhead Cable Description
This high-quality data flat cable is compatible with Epson 5113 printhead-based printers. This cable connects to the printhead. We recommend changing the head cable when replacing the printhead.
Model: 16P250A-1.0
16P means there are 16 chips on the cable.
250 means the length is 25cm.
A means the two ends of the chip are on the same surface. B means the two ends of the chip are on the reverse surface.
1.0 means the distance between the two chips is 1mm.
Epson 5113 Printhead Cable Specifications
| Pins | 16P |
| Length | 25cm |
| Pins Width | 1.0mm |
| Pin Direction | The chip at Same Face (A) |
| Suitable Printhead | 5113 Head |
| 5113 head cable | 16P250A-1.0 |
| 16P400A-1.0 |
