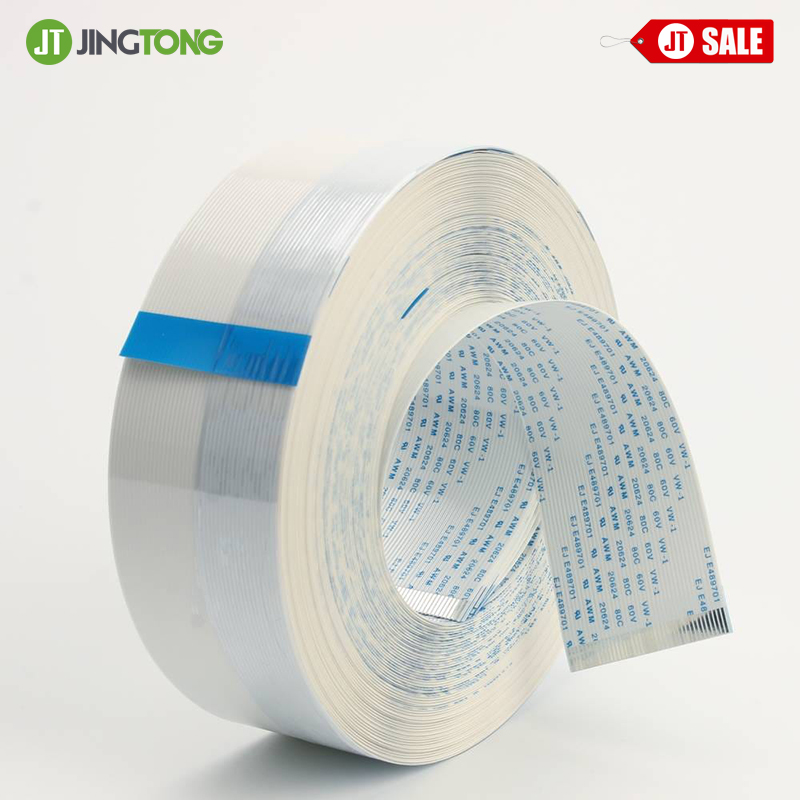

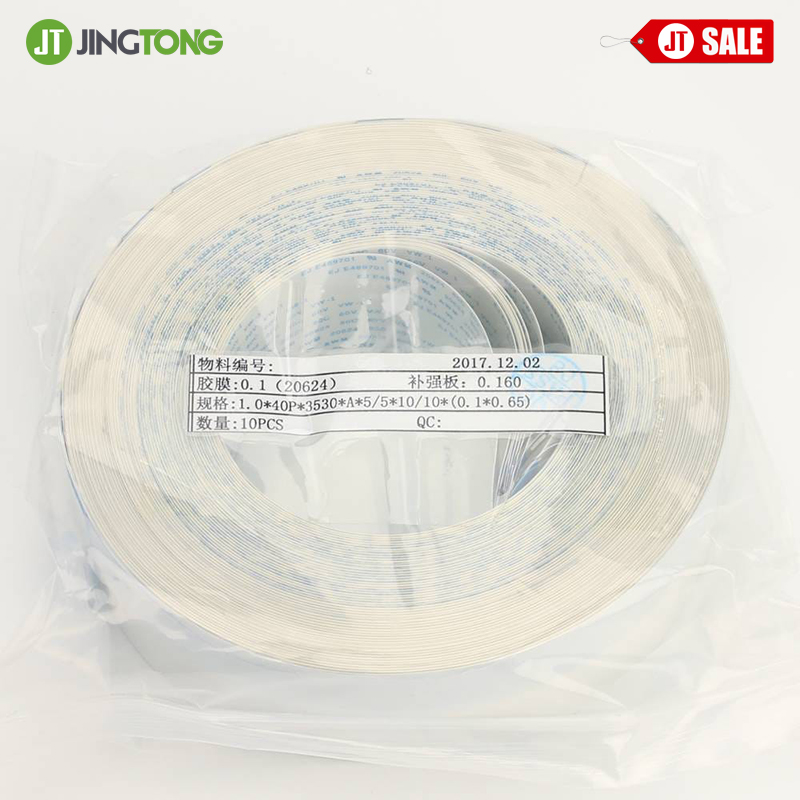

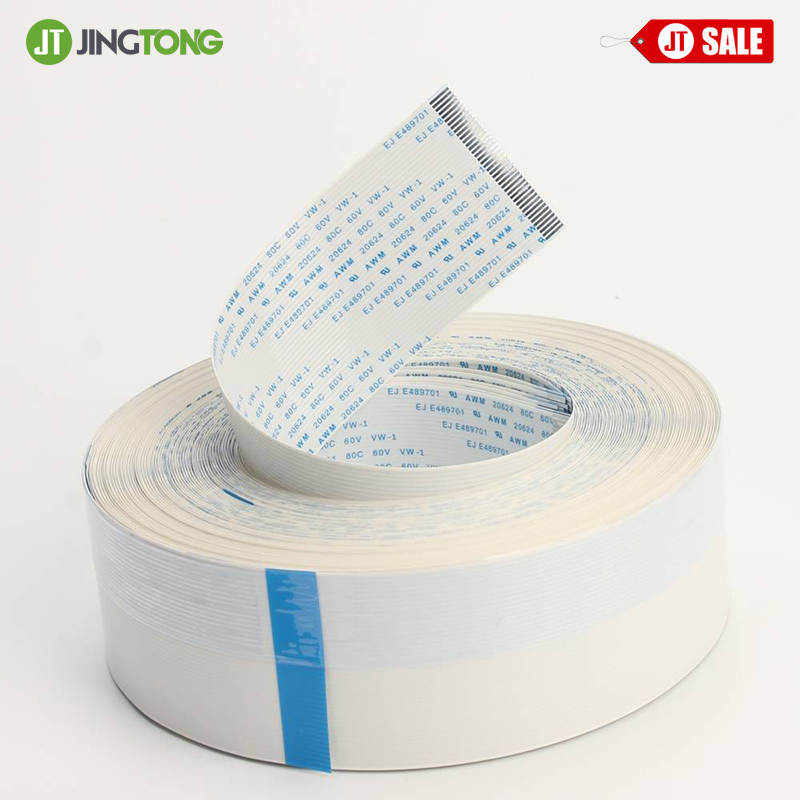

Mutoh Printer Head Cable Description
This high-quality data flat cable is compatible with Mutoh printers. This cable connects to the printhead. We recommend changing the head cable when replacing the printhead.
Model: 40P3530A-1.0
40P means there are 40 chips on the cable.
3530 means the length is 353cm.
A means the two ends of the chip are on the same surface.
1.0 means the distance between the two chips is 1mm.
Mutoh Printer Head Cable Specifications
| Pins | 40P |
| Length | 353cm |
| Pins Width | 1.0mm |
| Pin Direction | The chip at Same Face (A) |
| Suitable For | Mutoh printers |
| Mutoh long cable for new machines | 40P3530A-1.0 |
| 40P4200A-1.0 |
