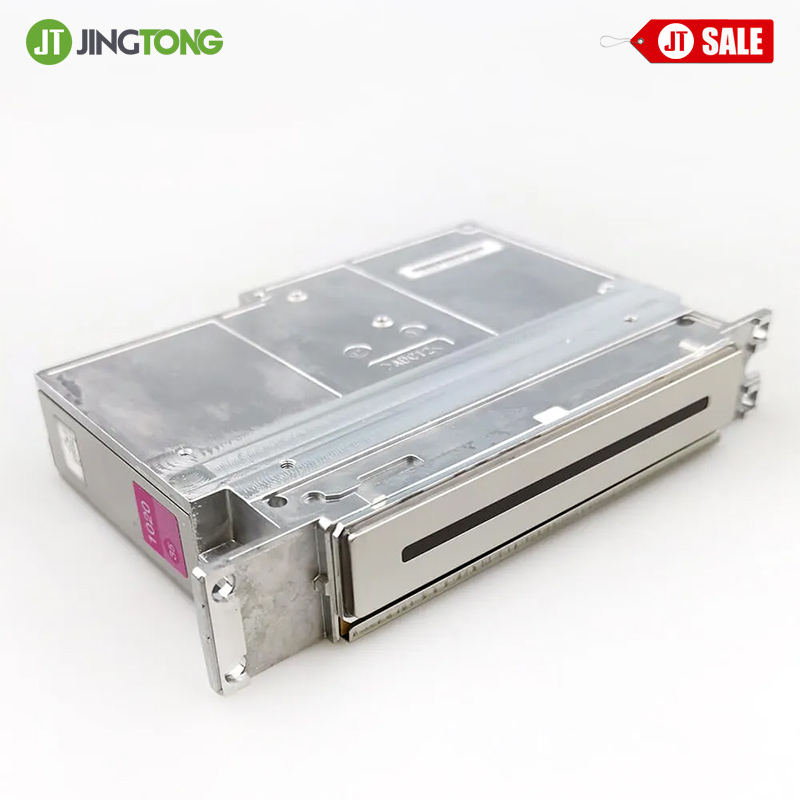

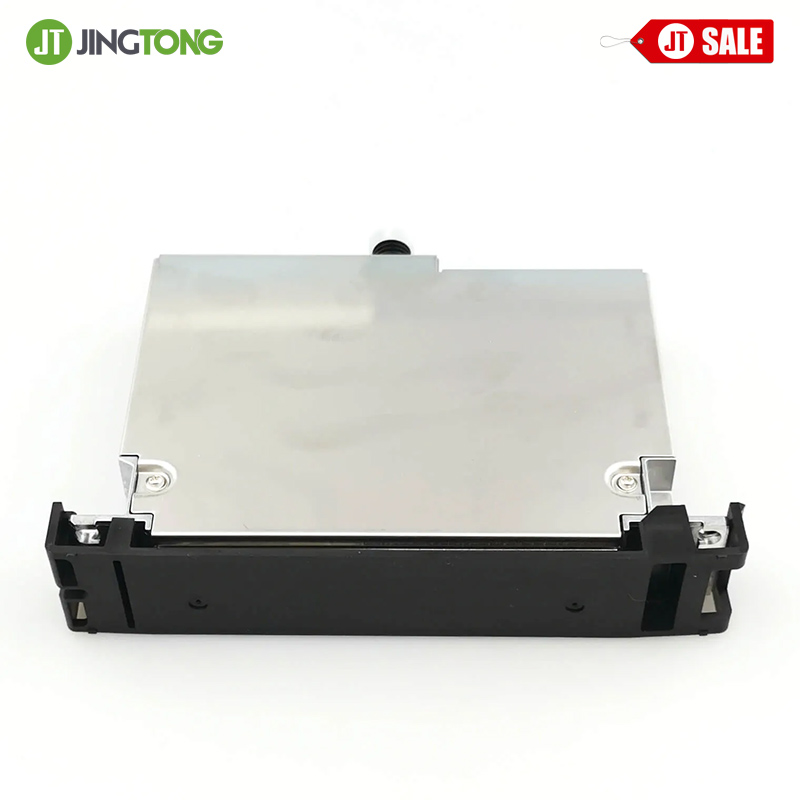

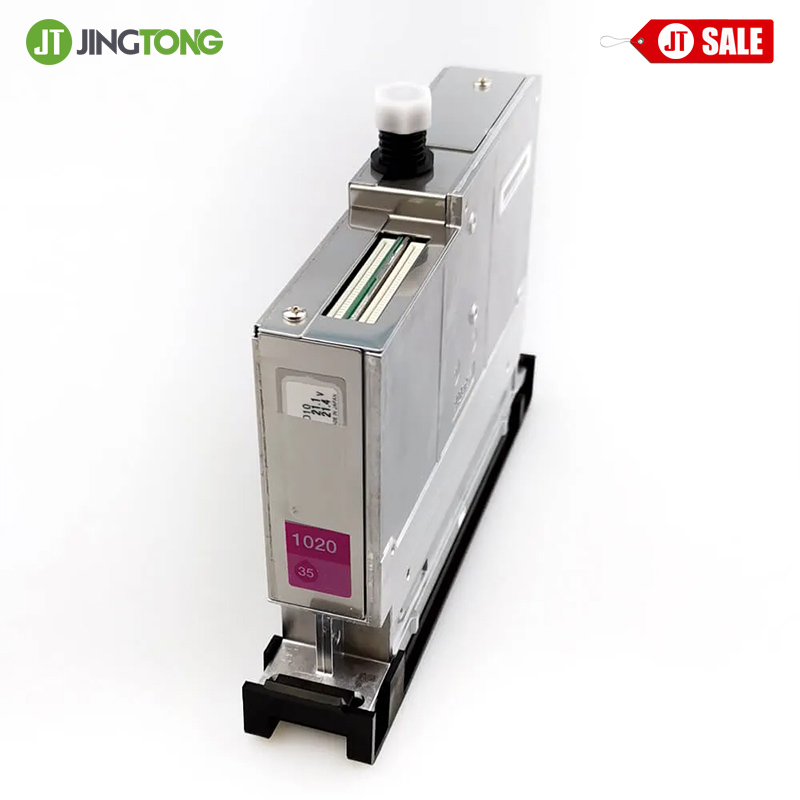

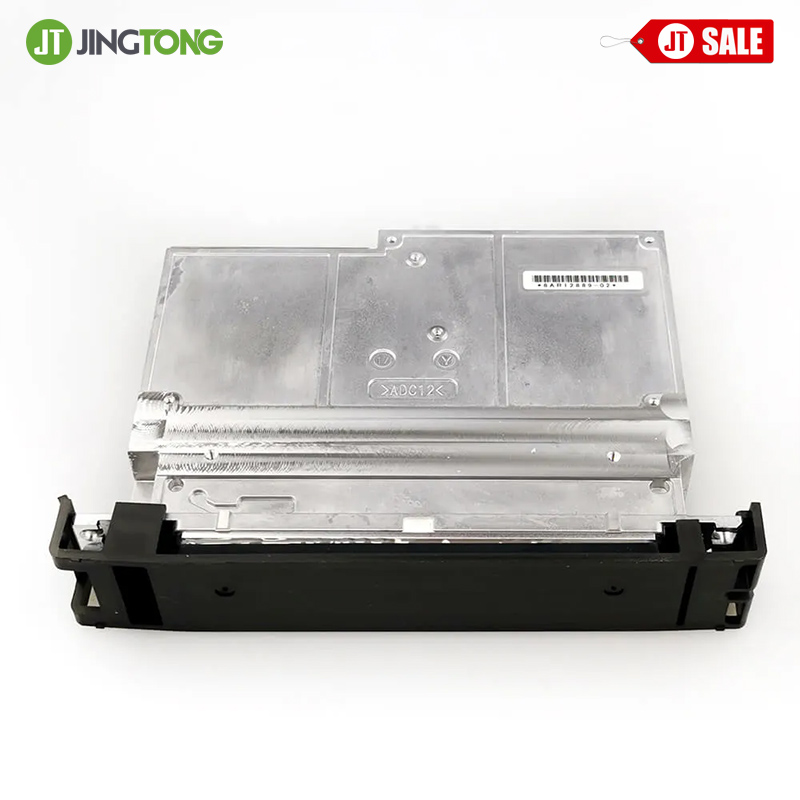

Seiko SPT-1020 35 pl Printhead Description
The Seiko SPT-1020 Printhead delivers exceptional performance for grand format digital printers, combining high-resolution and high-speed printing. With 1020 active nozzles and a 35 pl drop size, it provides excellent precision and quality for a wide range of applications.
Seiko SPT-1020 35 pl Printhead Specifications
| Weight | Approximately 1.7 kg |
| Country of origin | Japan |
| Active nozzles | 1020 |
| Nozzle density | 185 npi |
| Drop size | 35 pl |
| 185 npi | 360 dpi |
| Max. resolution | 720 dpi |
| Print swathe width | 71.9 mm |
| Firing frequency | 6.46 or 8.29 kHz |
| Jetting speed | 4.2 m/s |
