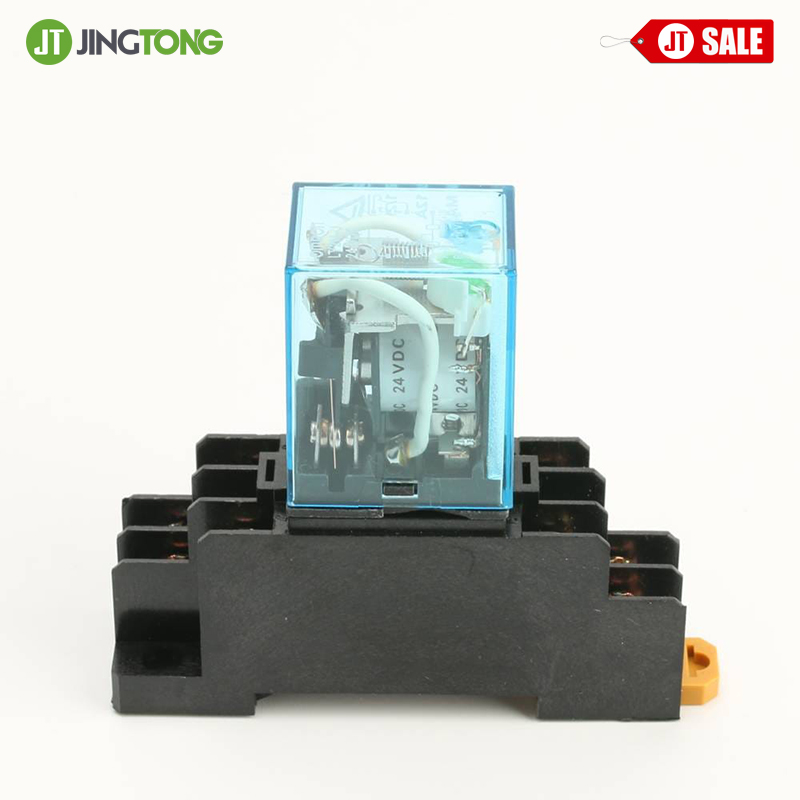

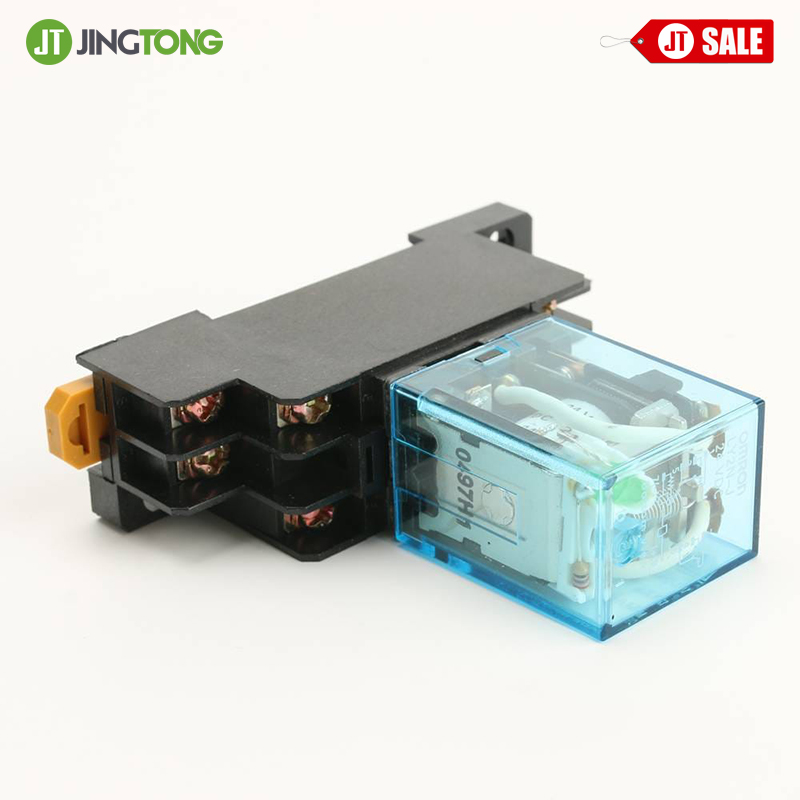

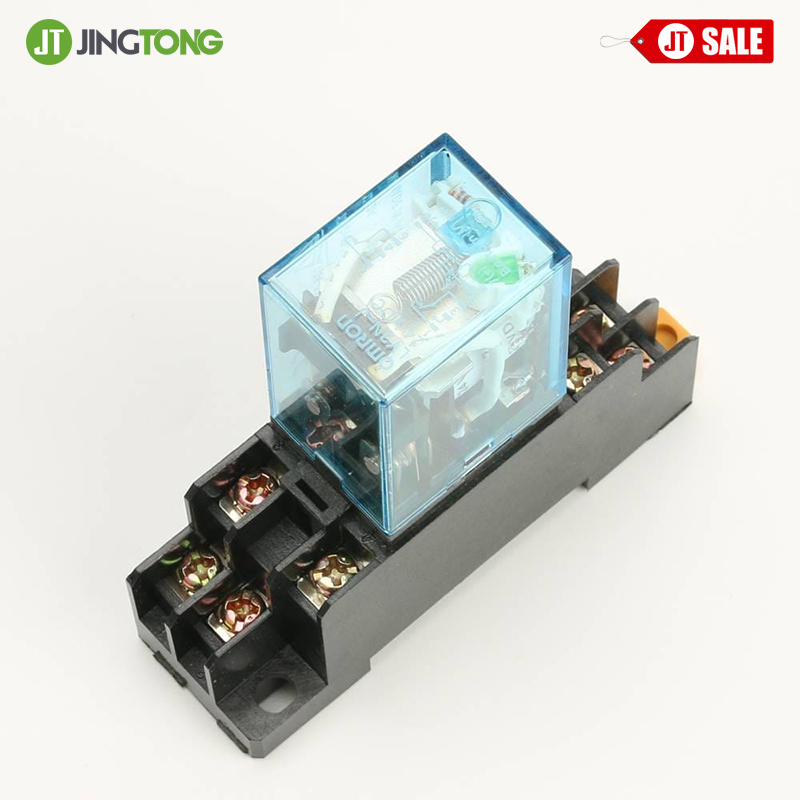

Omron LY2N-J relay is an electronic control device, it has a control system (also known as the input loop) and the controlled system (also known as the output loop), usually used in the automatic control circuit, it is actually a small current to control the larger current of an “automatic switch”. Therefore, it plays the role of automatic regulation, safety protection, and conversion circuits in the circuit.
| Attribute | Value |
| Coil Voltage | 24V dc |
| Coil Resistance | 662 Ω |
| Isolation Coil To Contact | 2kV ac |
| Contact Configuration | DPDT |
| Mounting Type | Plug In |
| Switching Current | 5A |
| Terminal Type | Plug In |
| Number of Poles | 2 |
| Maximum Switching Current AC | 5 A |
| Maximum Switching Current DC | 5 A |
| Maximum Switching Voltage AC | 250V ac |
| Maximum Switching Voltage DC | 220V dc |
| Maximum Switching Power DC | 120 W |
| Series | MY |
| Height | 36mm |
| Length | 28mm |
| Maximum Switching Power AC | 1.1 kVA |
| Depth | 21.5mm |
