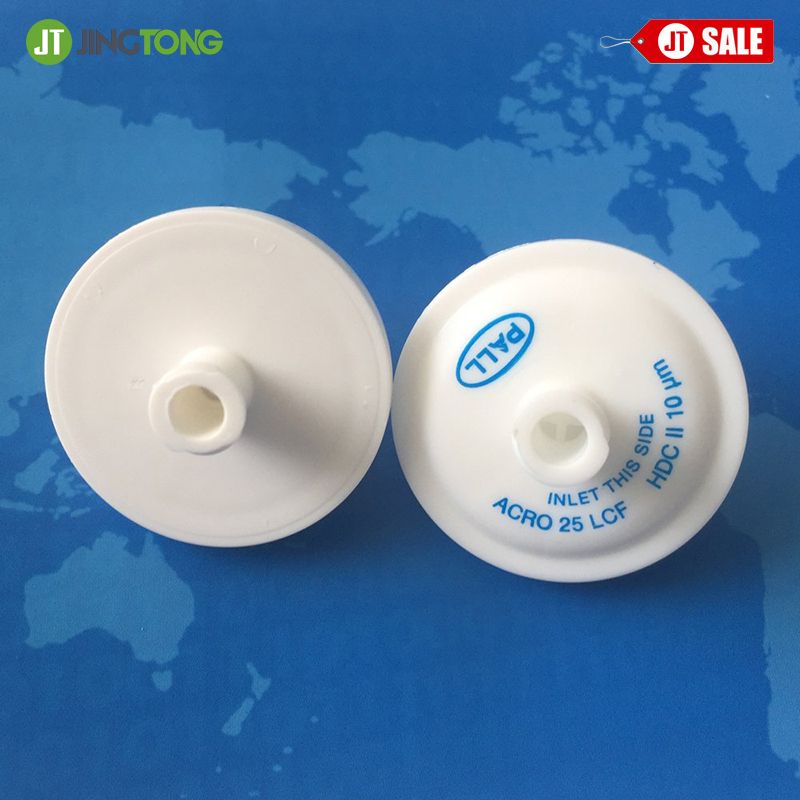

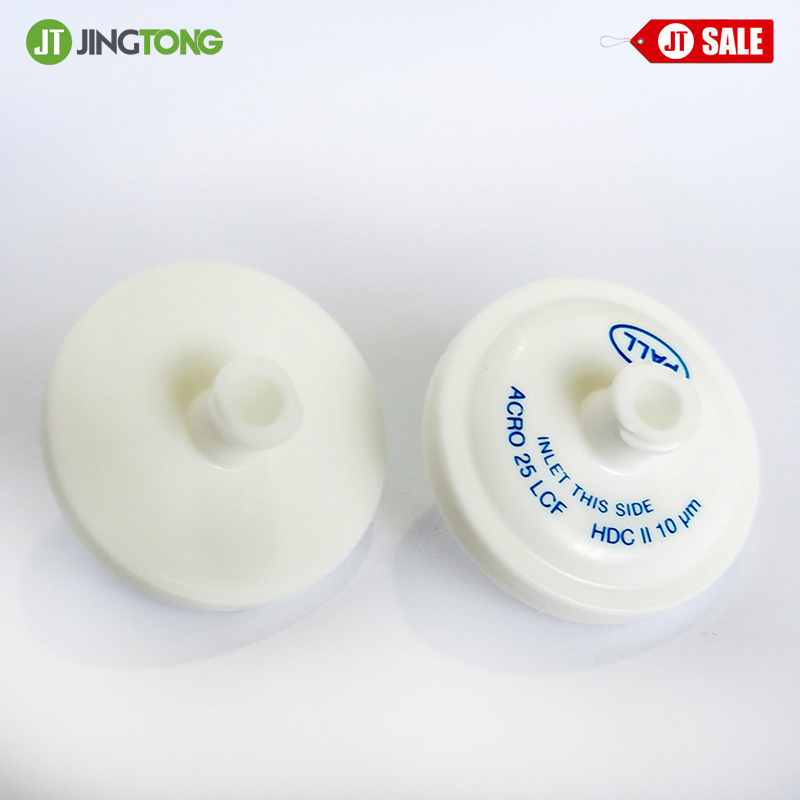

Pall Disc Filter LCF12100 10 micron Description
1. The maximum particle size of 10 ¦Ìm is allowed to pass through when the solution containing impurities passes through the ink filter, improving the ink quality and the printing resolution of printers.
2. The actual surface area of the ink filter in the filtration process reaches 3.9 cm2. Most of the filtered media remains on the surface of the filter material, so the larger the filter area, the more media can be accommodated, and the longer the life of the filter.
3. Good anti-corrosion performance ensures its durability. Precision filter mesh is used to effectively filter impurities in ink. This PALL disc filter can be used in large-format printers, inkjet coding machines, photo inkjet printers, UV printers, and digital textile printers.
Pall Disc Filter LCF12100 10 micron Specifications
| Type | Acro? Disc Last Chance Filter (LCF) |
| Pore Size | 10 micron |
| Outlet connection | Female Luer-Lok compatible |
| Disc diameter | 29.97 mm (1.18¡å) |
| Disc width | 20.57 mm (0.81¡å) (Luers inc.) |
| Maximum Operating Pressure | 5.2 barg / 75 psig @ 20 ¡ãC / 68 ¡ãF |
| Use | Air/Liquid |
| Solvent resistant | Yes |
| UV resistant | Yes |
Printer Compatibility
Agfa Anapurna M, Agfa Anapurna Mw V3, Agfa Anapurna Mw V4, Agfa Anapurna Mw V1, Agfa Anapurna Mw V2 ,
Dilli Neo Titan UV-1606VS, Dilli Neo Titan UV-1606W
Models of Pall Disc Filters
| PALL Disc Filters | |
| Models | Filtration Precision |
| LCF-11100 | 6 ¦Ìm |
| LCF-12100 | 10 ¦Ìm |
| LCF-13100 | 20 ¦Ìm |
| LCF-23100 | 20 ¦Ìm |
| LCF-23110 | 20 ¦Ìm |
| LCF-22110 | 10 ¦Ìm |
| LCF-59400 | 0.45 ¦Ìm |
