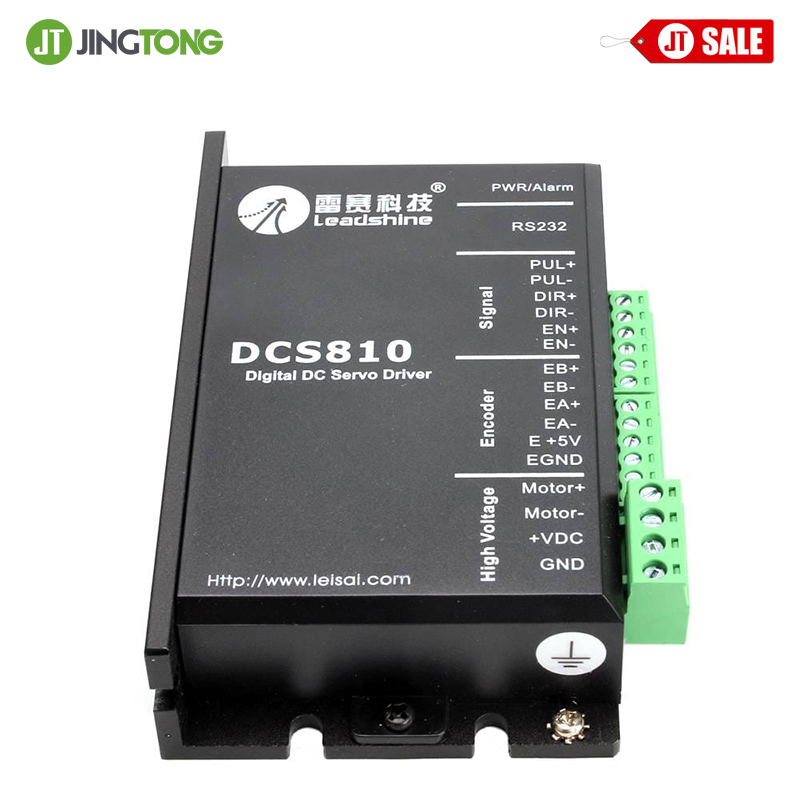

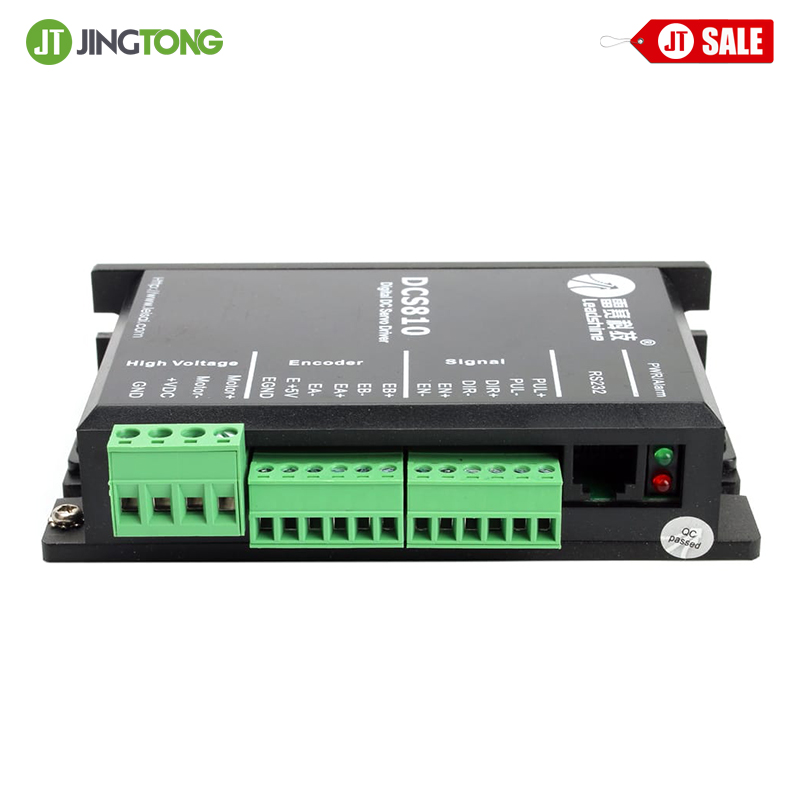

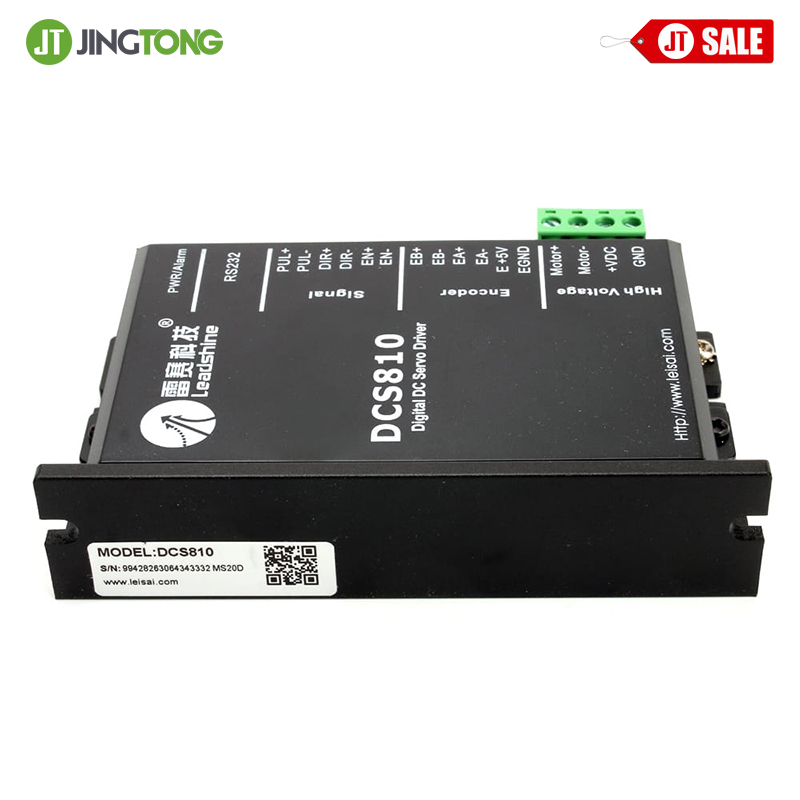

Leadshine AC servo drive DCS810 Description
Leadshine¡¯s fully digital AC servo drive DCS810 suits various equipment and instruments such as mini-type engraving machines, jet-ink machines, etc. It performs better in equipment desired for low noise, high velocity, high precision, and high reliability.
Leadshine AC servo drive DCS810 Features
- 18-80VDC, 0-20A, 20-400W.
- Based on DSP control technology and high smooth servo control algorithm.
- Parameter visible tuning tools, including Pro Tuner, EZ Tuner, and STU.
- Feedback resolution ¡Á4 encoder line count.
- Position Following error lock range adjustable
- Position error can be eliminated to 1 count, and Velocity error can be eliminated to the Desired Velocity* ¡À0.3%
- Electronic gear ratio from 1/255 to 255
- Built-in motion controller for self-test with trapezoidal velocity profile
- Support PUL/DIR and CW/CCW control signals
- Opto-isolated inputs, support single-ended and differential signals
- 10 latest errors self-record function
- Over-current, over-voltage, under-voltage, phase error, encoder error, position following error protections
- Small size, surface-mount technology
