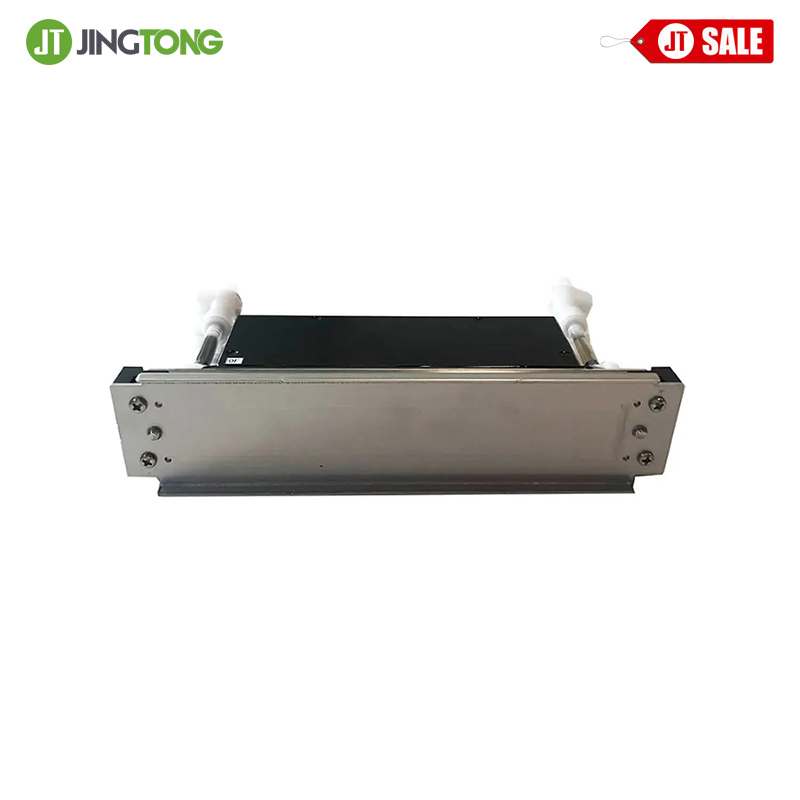

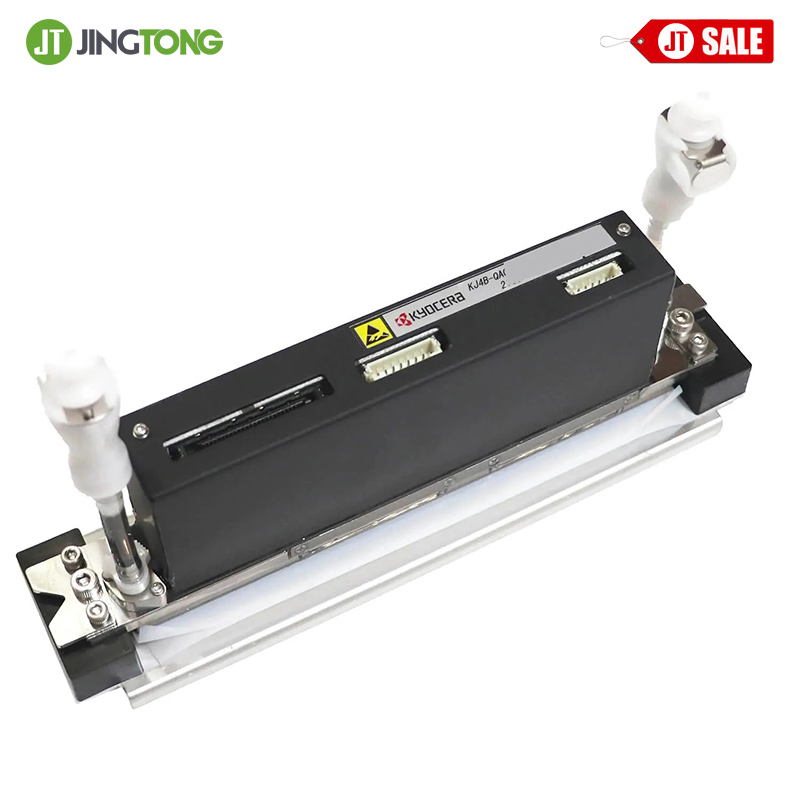

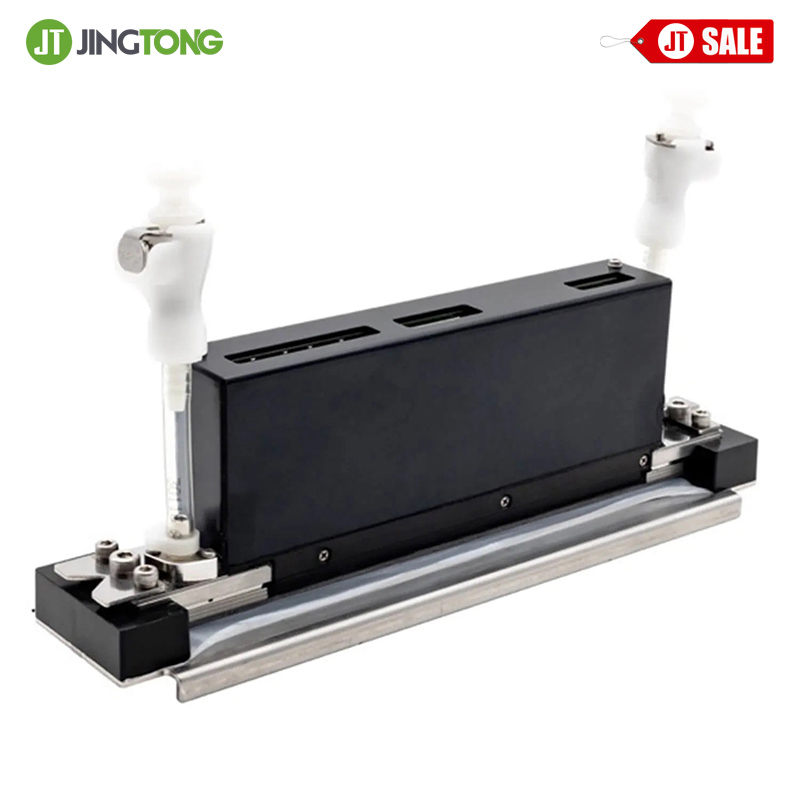

Kyocera KJ4B Printhead KJ4B-QA06NTB-MS6V-4B Description
The Kyocera KJ4B-QA06NTB-MS6V-4B is a high-performance industrial printhead engineered for high-speed, water-based ink applications. With a native resolution of 600 dpi and a maximum drive frequency of 30 kHz, this printhead ensures precise droplet placement and exceptional image clarity even at printing speeds up to 75 m/min.
Equipped with 2,656 nozzles positioned across a 108.25 mm print width with a 0.042 mm nozzle pitch, it consistently produces fine 5 picoliter drops, achieving both high density and smooth tonal gradations. The printhead¡¯s integrated heater stabilizes ink viscosity under varying temperatures, while its built-in microfilters prevent impurities from clogging the nozzles, ensuring reliable long-term performance.
Kyocera KJ4B Printhead KJ4B-QA06NTB-MS6V-4B Specifications
| Ink Type | Aqueous Ink |
| Dimensions | 200 ¡Á 25 ¡Á 59.3mm |
| Dry Weight | 420 g |
| Total Nozzles | 2.656 |
| Nozzle Pitch | 0.042 mm |
| Standard Resolution | 600 x 600 dpi |
| Print Width | 108.25 mm |
| Max. Drive Frequency | 30 kHz |
| Drop Volume | 5, 7, 12, and 18 pl |
| Max. Sprint Speed | 75 m/min |
| Optimum Ink viscosity | 5.0 ¨C 6.0 mPa*s |
Kyocera KJ4B-QA Printhead Models:
|
KJ4B-QA | KJ4B-QA06NTB-MS6V-4B |
| KJ4B-QA06NSB-OP1F-4B | |
| KJ4B-QA06NTB-HZ5V-4A | |
| KJ4B-QA06NTB-MS10V-4B | |
| KJ4B-QA06NTB-HZ9V-4B | |
| KJ4B-QA06NTB-STDC-4B | |
| KJ4B-QA06NTC-RM6A-4B | |
| KJ4B-QA06NTB-ST6V-4B | |
| KJ4B-QA06NTB-HG10V-4B | |
| KJ4B-QA06NTB-HT10V | |
| KJ4B-QA06NTB-ME6V-4B | |
| KJ4B-QA06NTB-AN6V-4B | |
| KJ4B-QA06NTB-TX10V-4B |
