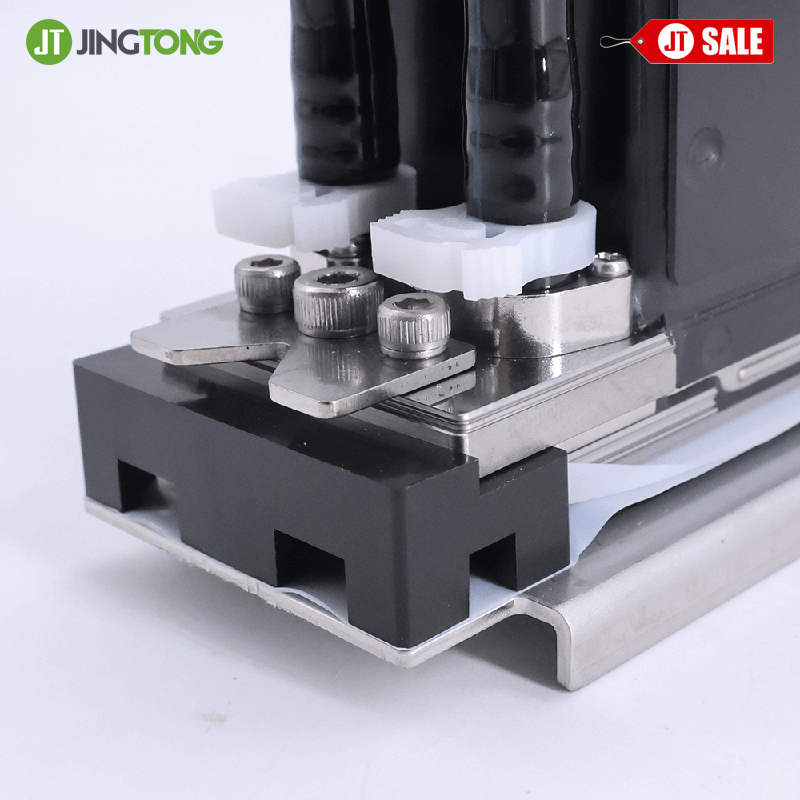

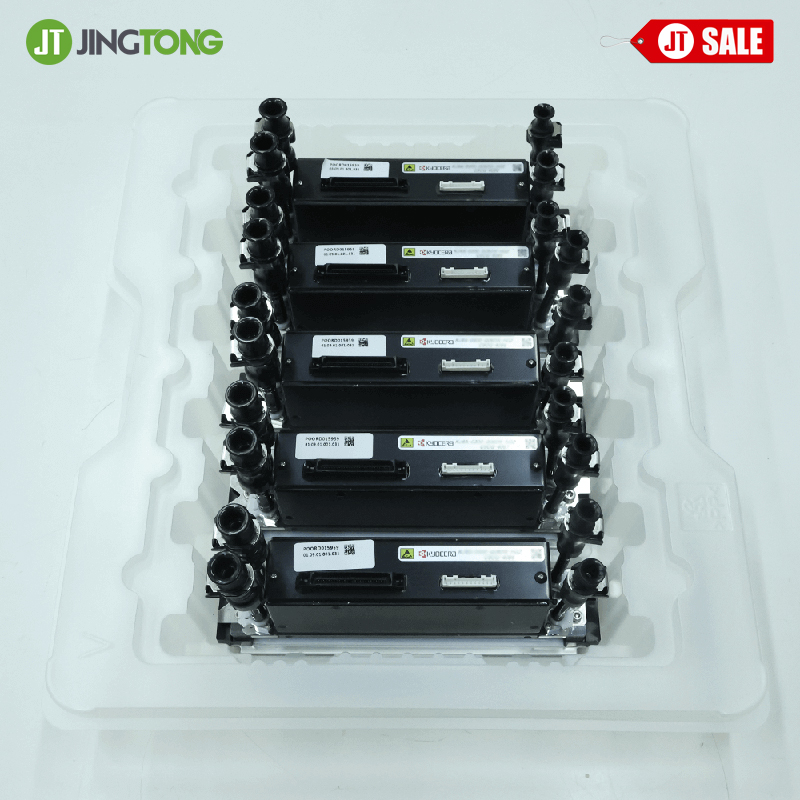

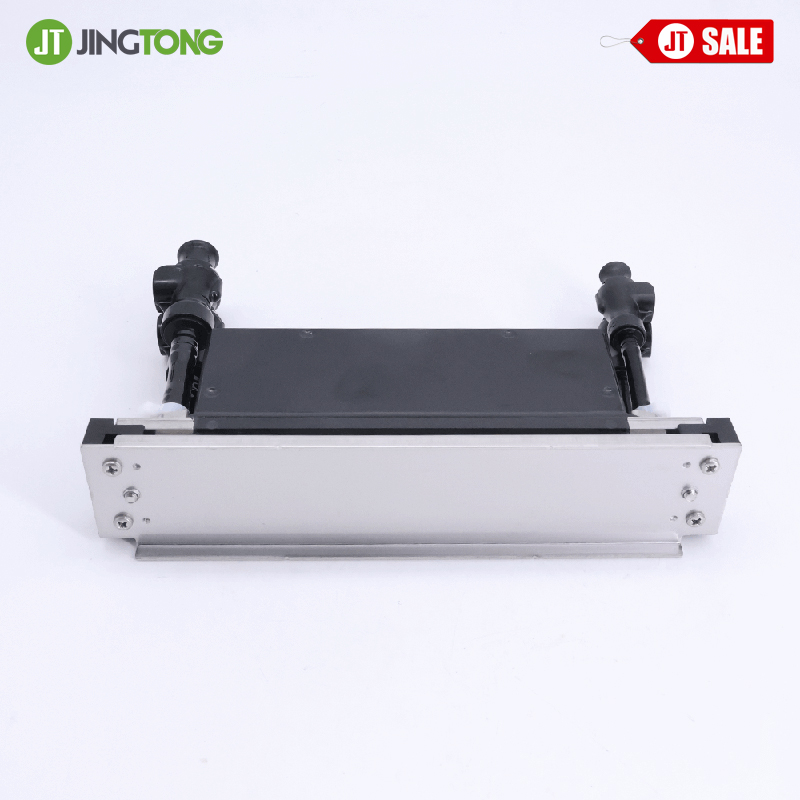

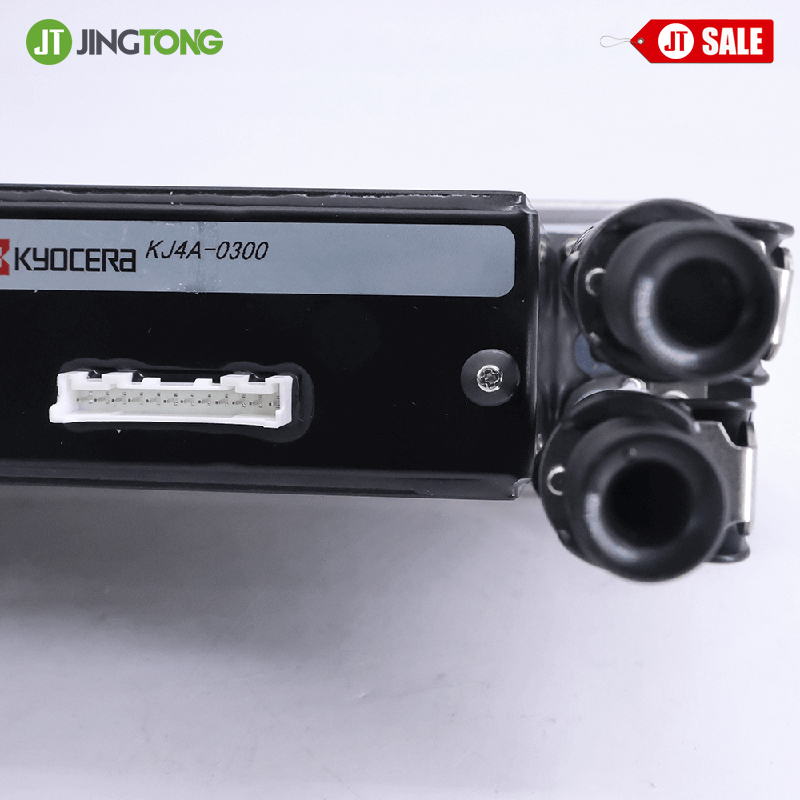

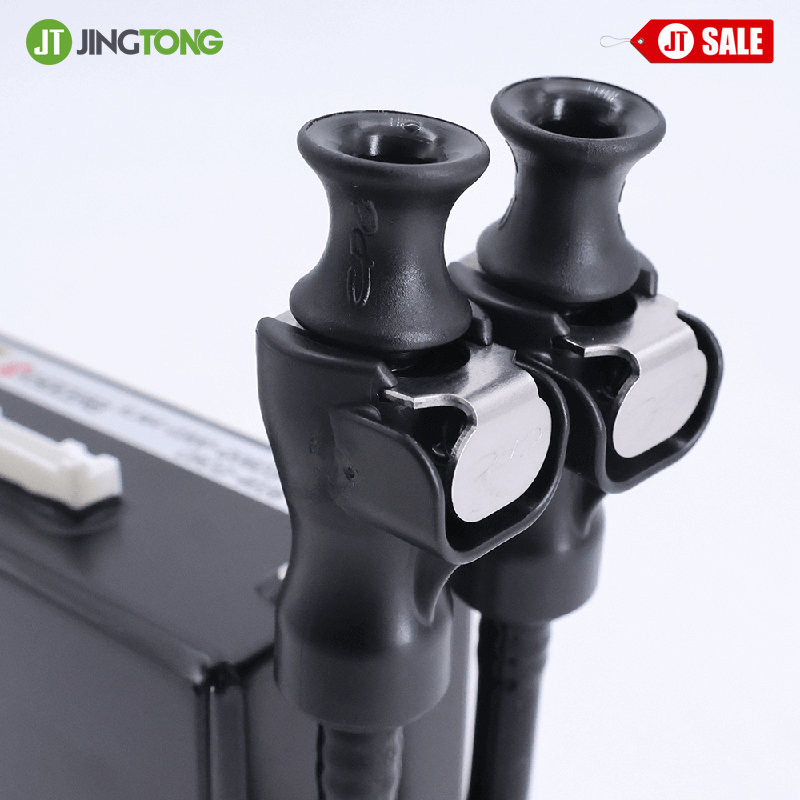

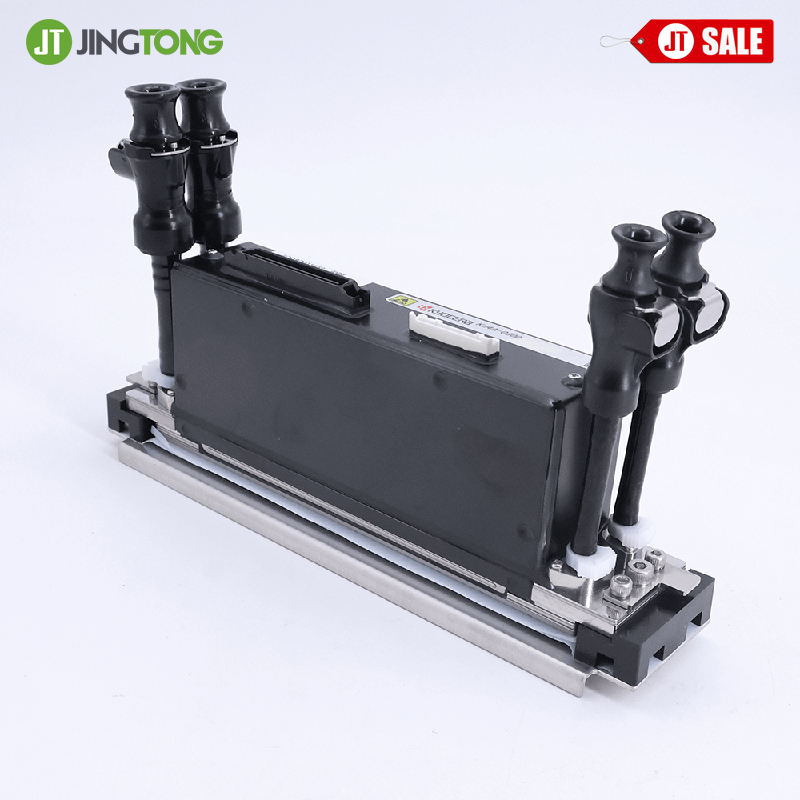

Kyocera KJ4A-0300 Printhead Description
The Kyocera KJ4A-0300-Q06DS-WIT1 printhead is an industrial-grade inkjet head built for high-speed single-pass printing with aqueous inks and multi-pass systems using UV inks. Engineered for precision and speed, it features a native resolution of 300 dpi and supports two-color printing for versatile production environments.
With 2,656 nozzles aligned across a 112.35 mm print width, this printhead achieves a 4 picoliter droplet size and operates at a maximum drive frequency of 30 kHz, enabling printing speeds up to 158 m/min while maintaining sharp, consistent image quality.
Designed for industrial printers requiring high throughput and reliability, Kyocera KJ4A-0300 printhead is ideal for packaging, signage, textiles, and other single-pass or multi-pass inkjet systems that utilize water-based or UV-curable inks.
Kyocera KJ4A-0300 Printhead Specifications
| Number of Nozzles | 2656 (2558) | |
| Effective Print Width (mm) | 112.35 | |
| Ink | UV | |
| Maximum Drive Frequency (kHz) | 30 | |
| Resolution (dpi) | 600 dpi * 600 dpi | |
| Print Speed *1 (m/min) | 76.2 | |
| Print Speed*1 (pl) | Minimum | 4 |
| Maximum | 14 | |
| Nozzle Recirculation | No | |
| Width*Length*Height (mm) | 200*36*68.8 | |
| Recommended Ink Viscosity*2 (mPa * s) | 6.0~7.0 | |
Kyocera KJ4A-0300 Printhead Models:
|
KJ4A-0300 | KJ4A-0300-Q06DS-WIT1 |
| KJ4A-0300-K06DS-HTP1 | |
| KJ4A-0300-Q06DS-DOC2 | |
| KJ4A-0300-K06DS-STD1 | |
| KJ4A-0300-Q06DS-HG2 |
