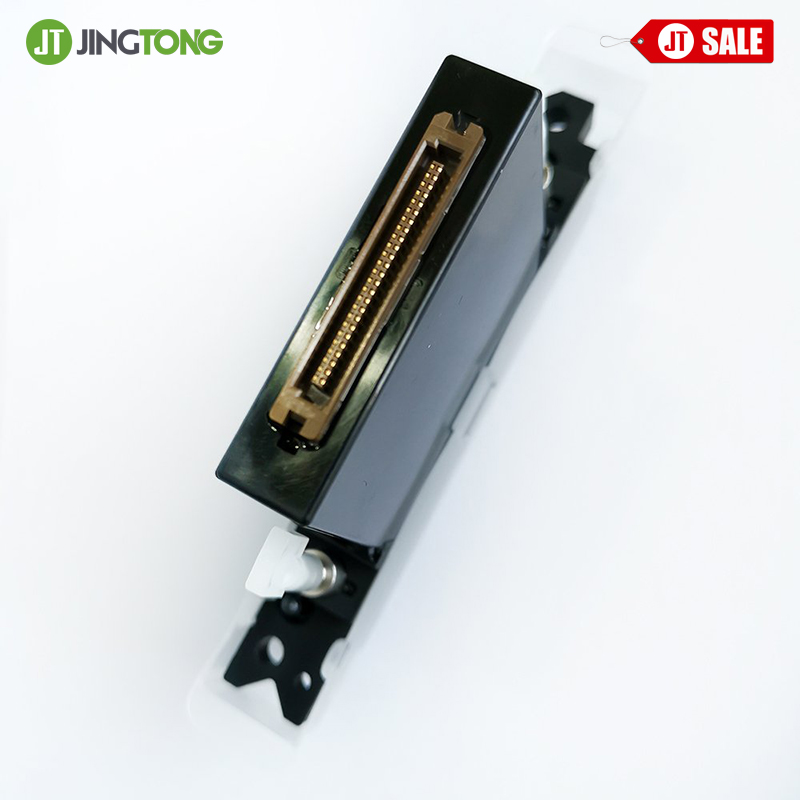

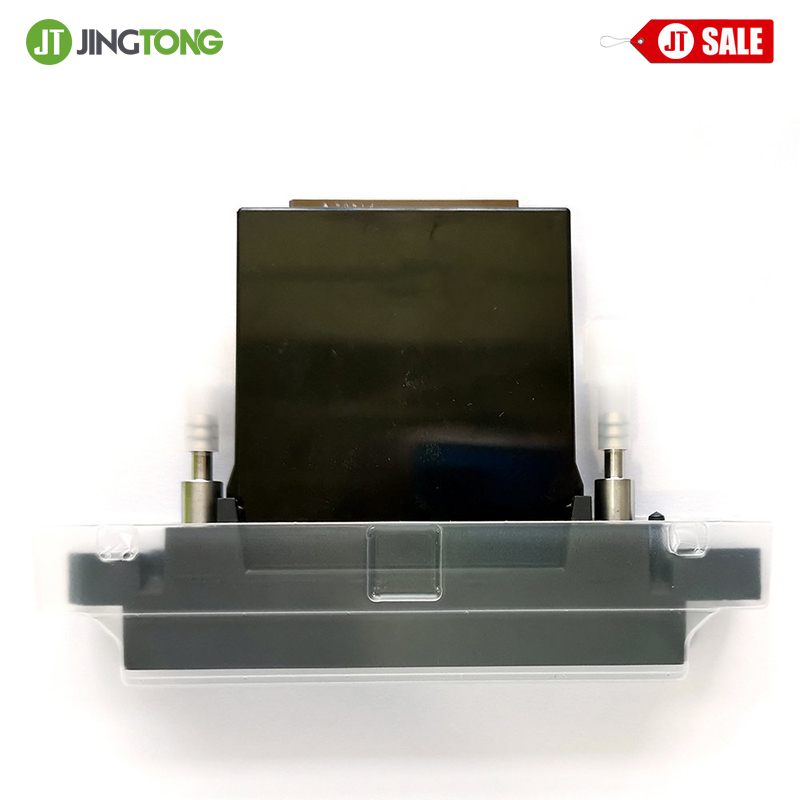

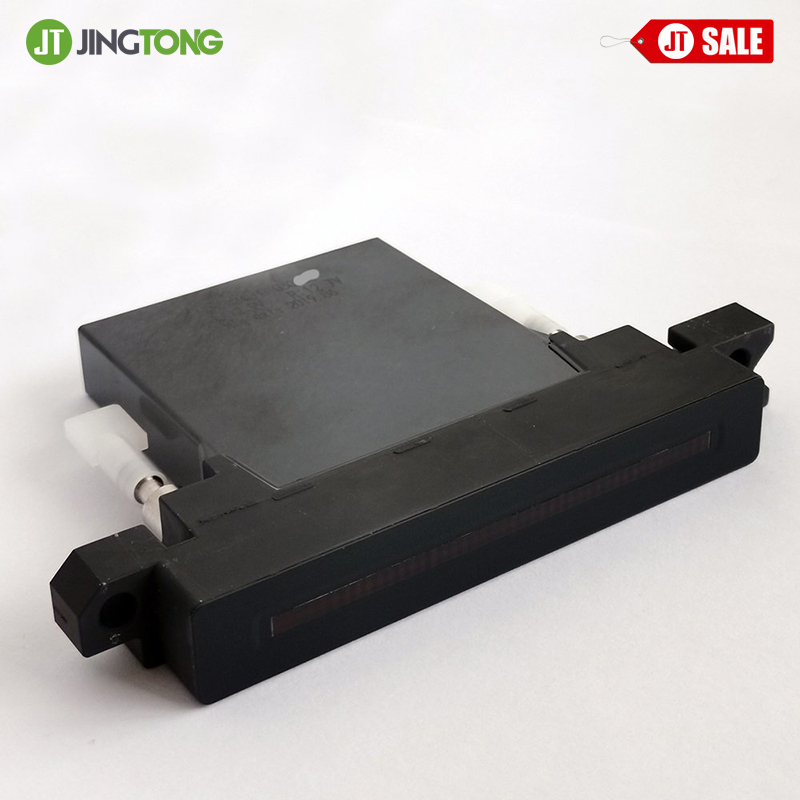

Konica KM1024 SHB 6PL Printhead Description
1. The Konica 1024SHB print head is a robust, shear mode, piezo on-demand print head that is usable in both binary and 8-level greyscale mode, providing variable drop size and higher print quality without the use of additional print heads.
2. The Konica Minolta KM1024 SHB print head is a vast improvement over the KM512 print head series, offering twice the print width and double the level of greyscale. Konica Minolta piezo on-demand inkjet heads are driven using lower voltages than other inkjet heads, and the new actuator used in the KM1024 reduces power consumption even further.
3. The Konica Minolta KM1024 SHB print head has 1024 nozzles with a droplet size of 6 picoliters and a native resolution of 360 dpi. The print head has an integrated heater, which makes it ideal for UV inks but suitable for solvent inks as well. This is Konica¡¯s original printhead, and it includes the necessary waveform information.
Konica KM1024 SHB 6PL Printhead Specifications
| Technology | Piezo Drop-On-Demand (Shared wall 3 cycle) |
| Native Resolution | 180 dpi ¡Á 2 lines = 360 dpi |
| Cal. Droplet Size | 6 picoliters |
| Tot. Amount of Nozzles | 512 nozzles ¡Á 2 lines = 1024 nozzles |
| Nozzle Spacing | 70.5 ¦Ìm (141 ¦Ìm ¡Á 2 lines) |
| Print Width | 72 mm |
| Firing Frequency | 30 kHz |
| Ink Compatibility | Solvent and UV ink |
| Heater | Integrated |
| Grey-scale | 8 levels |
