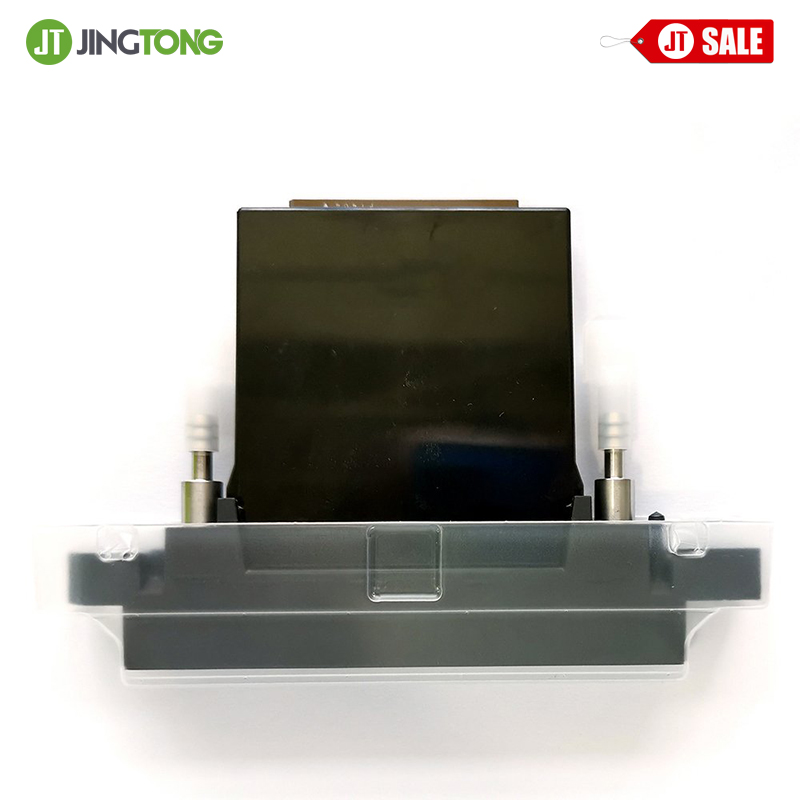

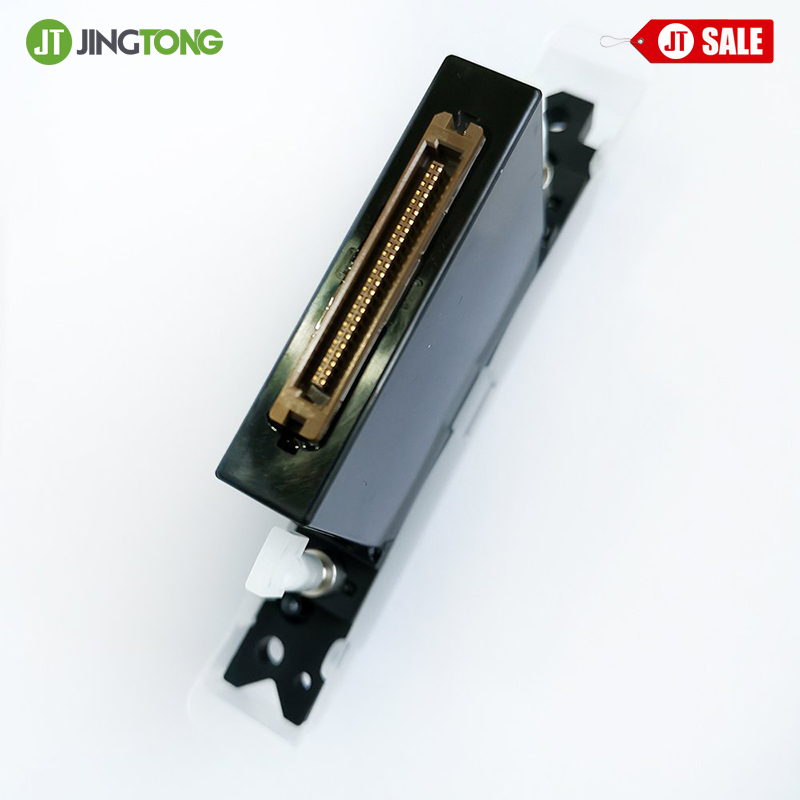

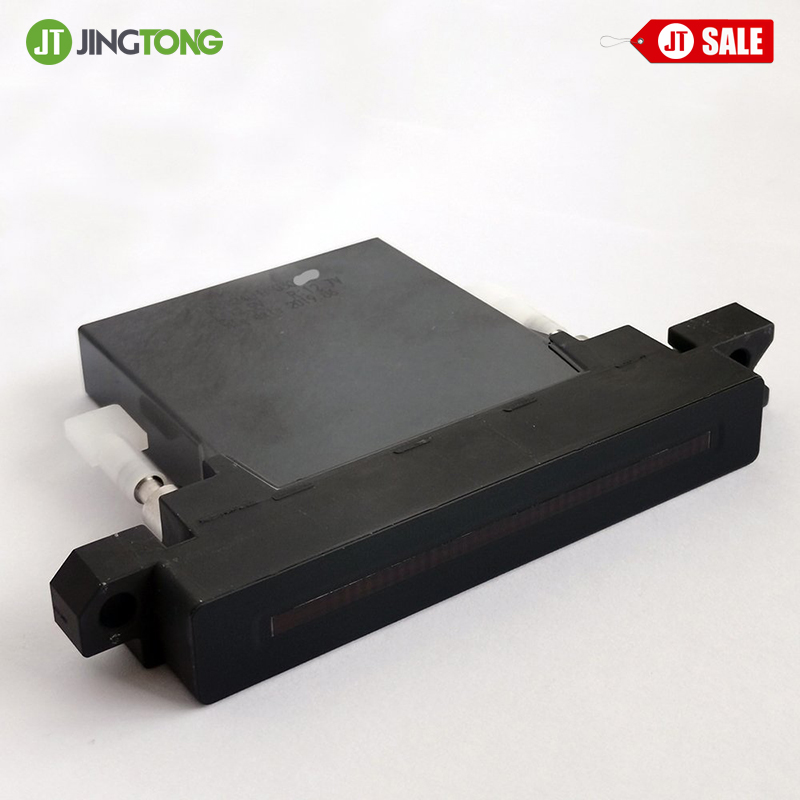

Konica KM1024i 6988H Printhead Description
Unlike the previous 3-cycle system drive, an independent drive system now allows all 1024 nozzles to fire simultaneously. This high-density structure, featuring 4 rows of 256 precisely aligned nozzles, enhances positioning accuracy for high-definition print quality.
The Konica Minolta KM1024i 6988H printhead offers a maximum drive frequency of 45 kHz, approximately three times greater than that of the KM1024 series, making it ideal for developing single-pass system inkjet printers capable of high-speed printing.
The Konica KM1024i 6988H printhead is compatible with various inks, including solvent, UV, and oil-based inks. For high-viscosity inks like UV and solvent inks, the KM1024i printhead is integrated with a heater to ensure optimal performance.
Konica KM1024i 6988H Printhead Specifications
| Technology | Piezo Drop-on-Demand |
| Drive System | Independent drive system |
| Native Resolution | 360 npi (90 npi x 4 lines) |
| Cal. Droplet Size | 13 picoliters |
| Tot. Amount of Nozzles | 1024 nozzles (256 nozzles x 4 lines) |
| Print Width | 72 mm |
| Firing Frequency | 45 kHz |
| Ink Compatibility | UV, Oil, and Solvent Inks |
| Heater | Integrated |
| Grey-scale | 8 levels |
