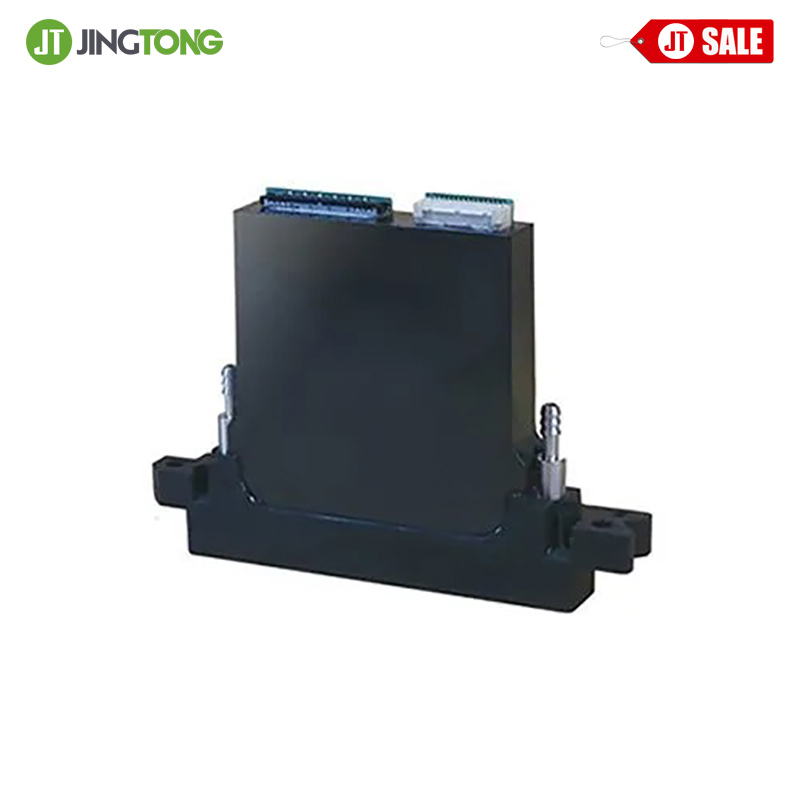

Konica 1024aSHE Printhead Description
The KM1024a SHE printhead delivers precision and versatility for industrial and hybrid printing. With 1024 nozzles arranged in a high-density 4¡Á256 line structure and a shear mode piezo on-demand system, it ensures accurate, high-definition output. Its all-nozzle independent drive system allows all nozzles to fire simultaneously, supporting solvent, UV, oil-based, and water-based inks. Ideal for signage, packaging, and demanding production environments, it provides consistent, high-speed performance.
Konica 1024aSHE Printhead Specifications
| Drive Mode | Independent |
| # of Nozzles | 1024 |
| Print Width (mm) | 72 |
| Head Dimensions | W: 131.2 mm * D: 17.6 mm * H: 97 mm |
| Regular Jetting Frequency (kHz) | 40 kHz (Binary) 24 kHz (4 dpd) |
| Drop Volume (pl) | 6pl (Binary) 24pl (4dpd) |
| Jetting Temperature | RT-55¡æ |
| Internal Heater | Available |
| Ink Type | Solvent, UV, Oil |
| Ink Viscosity (mPa.s) | 7-10 |
| Waveform | Analogue |
| Weight | 150 g |
| Grayscale Level | 8 level |
Konica 1024aSHE Printhead Applications
- PCB
- Textile
- Sign & Graphics
- Flags & Banners
