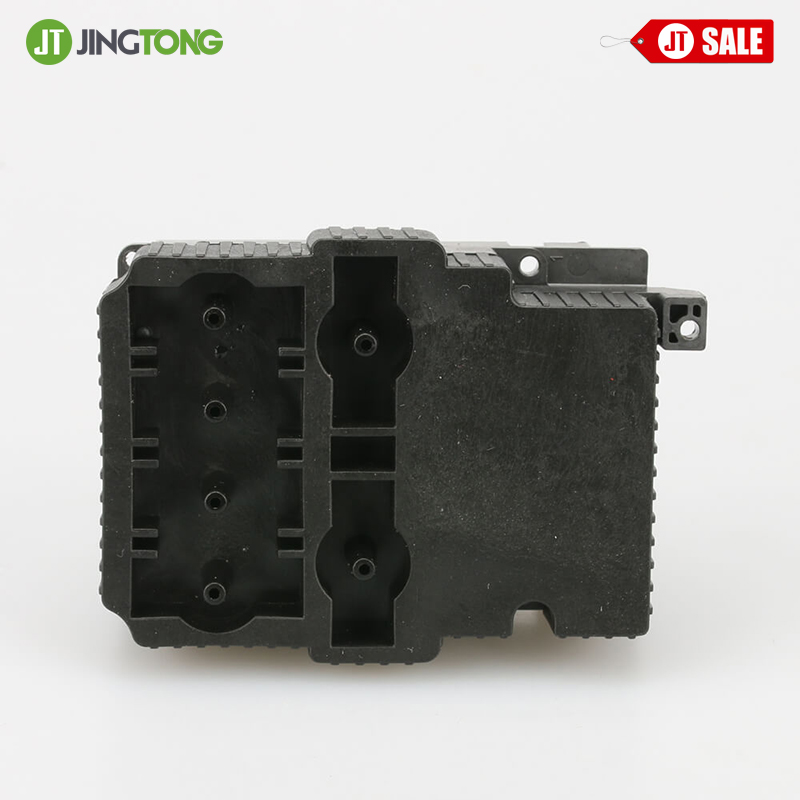

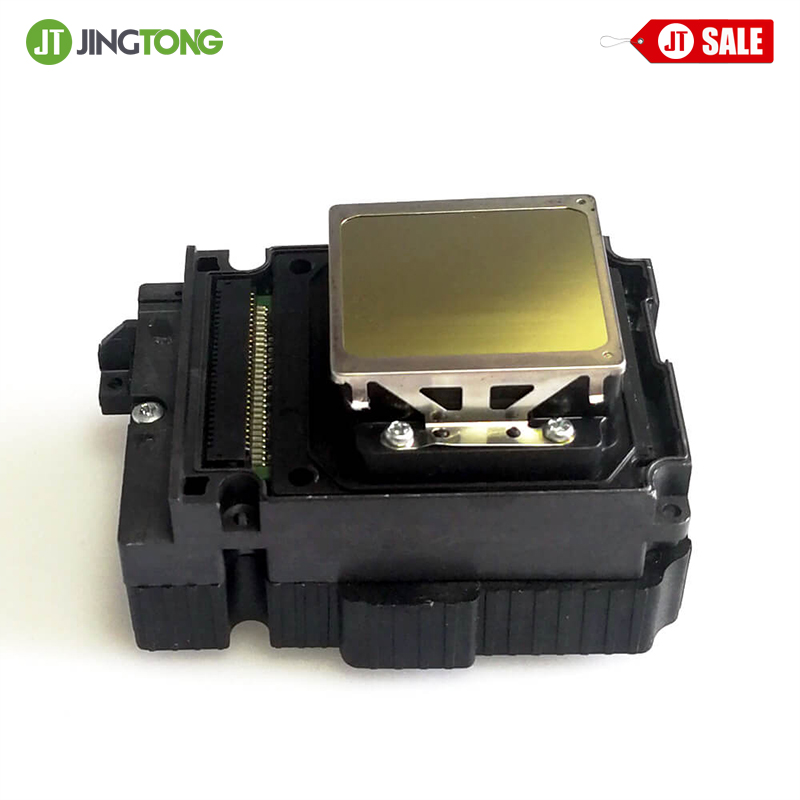

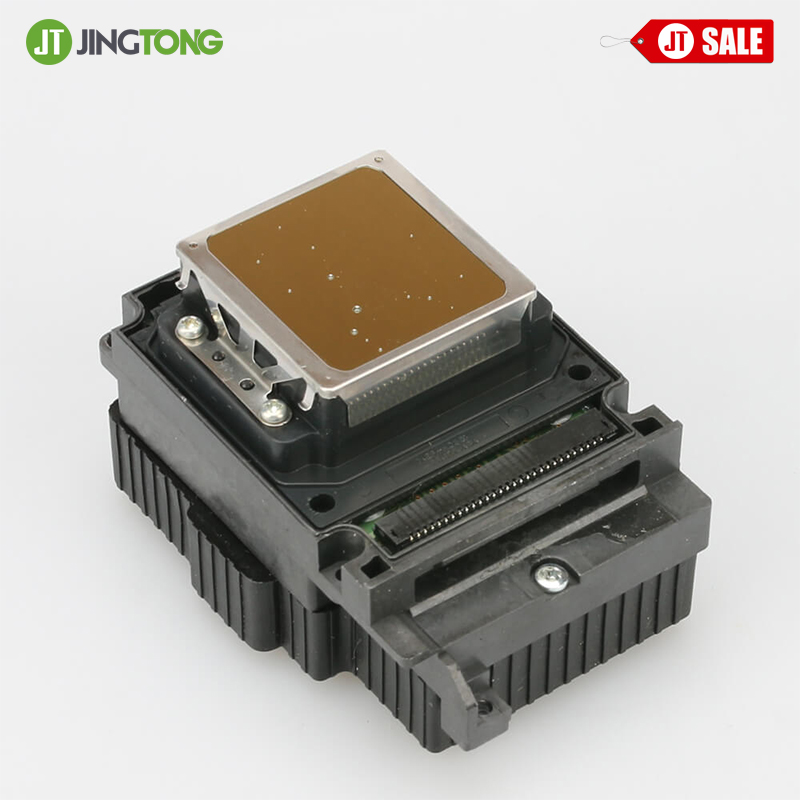

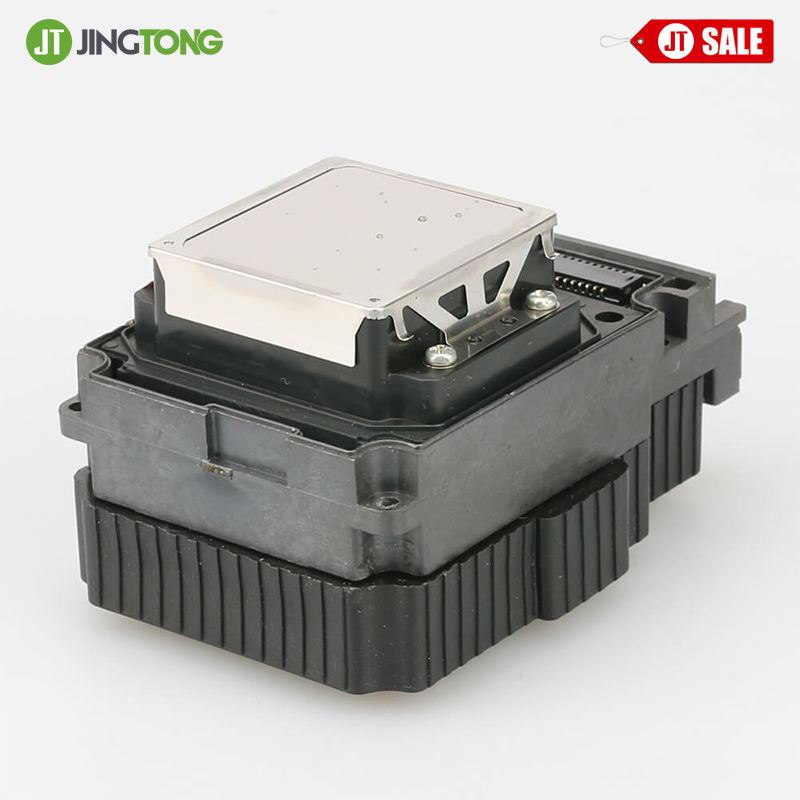

Epson TX800 Printhead Description
The Epson TX800 Printhead (DX10) is an original Epson printhead designed for the TX800 printer series and widely used in many TX800-based DTF printers. Known for its high precision and stability, this printhead delivers consistent, detailed prints across various DTF applications.
Epson TX800 Printhead Specifications
| Technology | Micro-Piezo |
| Printing Resolution | 1440 dpi |
| Number of nozzles | 1080 (6 rows x 180 nozzles) |
| Nozzle resolution | 180 npi/row, 360 npi/2 rows |
| Ink Compatibility | UV Ink/Eco-Solvent Ink, Water-Based Ink¡ªDye Ink/Pigment Ink/Textile Ink/Sublimation Ink/Art Paper Ink, etc. |
| Jetting Frequency | 46 kHz (single mode); 11.52 kHz (multi-mode) |
| Droplet volumes | 4.5, 9, 20, 40 pl (Multi-mode) |
| Viscosity range | 3-5 mPa?s |
| Dimensions | 84.9 x 57.2 x 42.6 mm |
| Weigh | 60 g |
