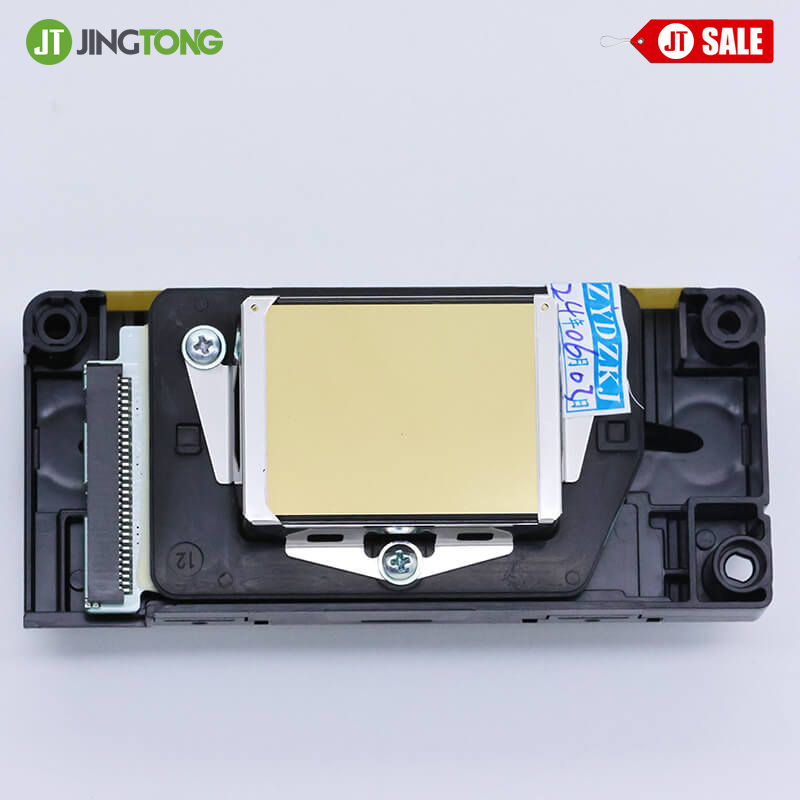

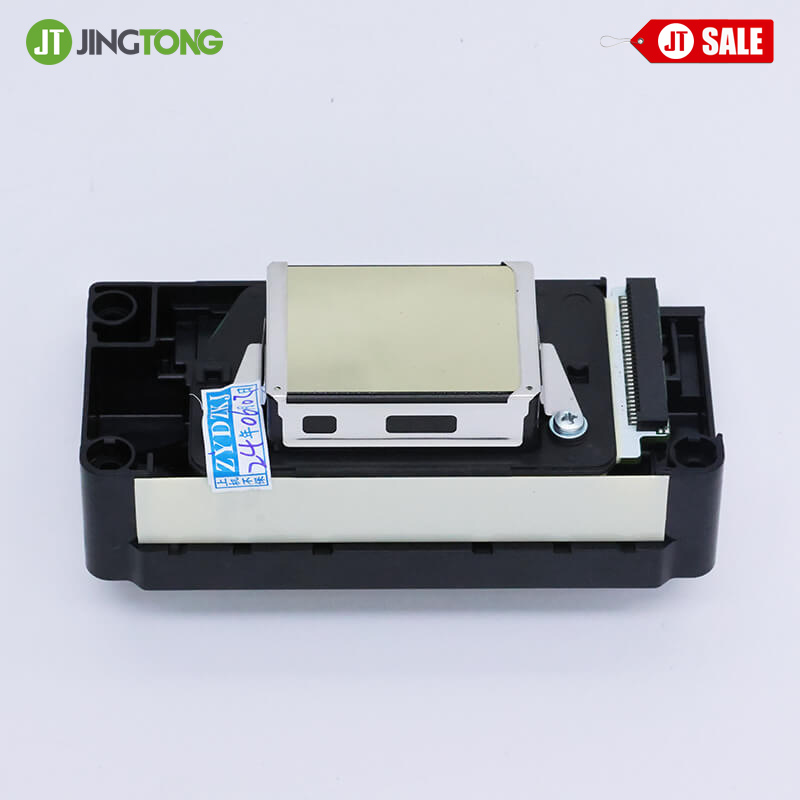

Epson DX5 Printhead Water-Based (F187000) Description
Various printer manufacturers widely utilize the Epson DX5 water-based printhead F187000. It is compatible with a range of printers as specified in their compatibility lists. This advanced printhead boasts a native resolution of 1440 dpi and features 8 nozzle lines, corresponding to 8 independent ink channels, each with 180 nozzles.

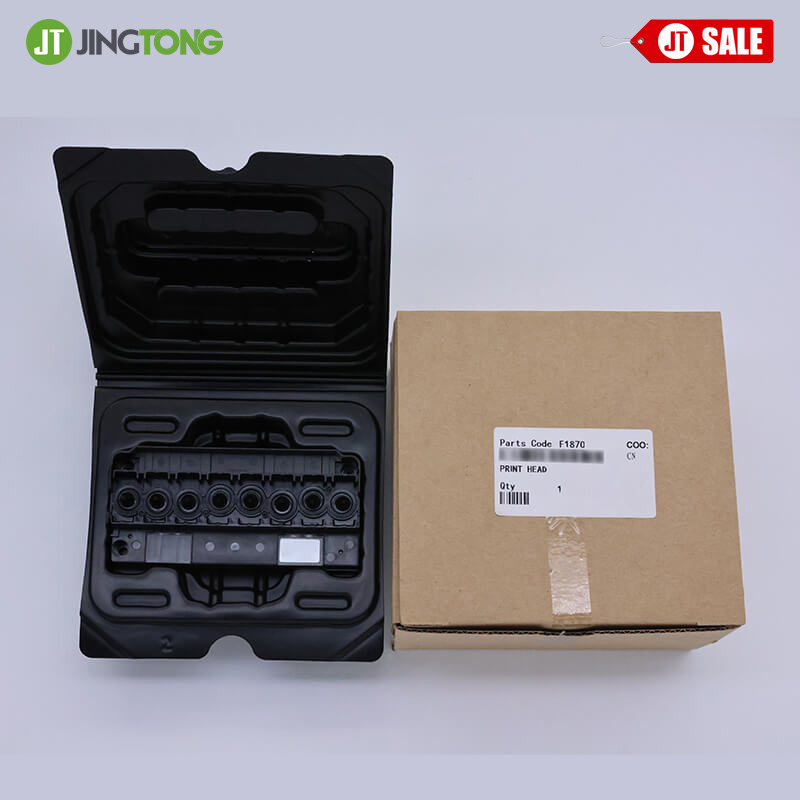

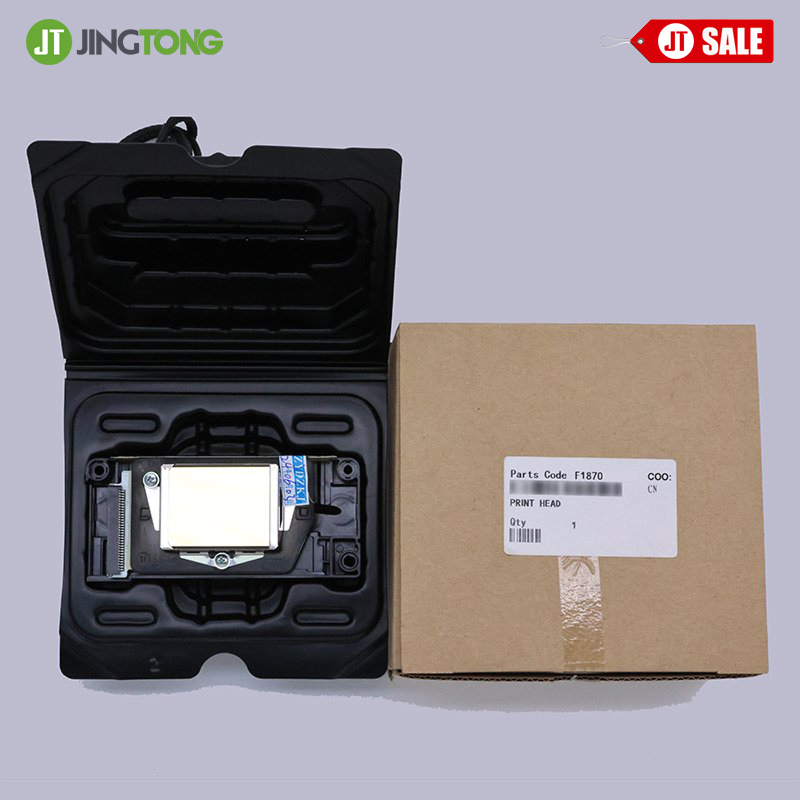

The DX5 printhead supports both 4-color and 8-color printing, offering a variable droplet size from as small as 1.5 picoliters to a maximum of 21 picoliters. A typical firing frequency of 8 kHz ensures high-speed, high-resolution printing with water-based dye and pigment inks. The original Epson DX5 water-based printhead F187000 comes sealed in its original Epson packaging, ensuring its authenticity and quality.
Epson DX5 Printhead Water-Based (F187000) Specifications
| Model | F187000 |
| Technology | Micro-Piezo |
| Native resolution | 1440 dpi |
| Min. droplet size | 1.5 picolitre |
| Max. droplet size | 21 picolitre |
| Tot. amount of nozzles | 1440 (8 lines x 180 nozzles) |
| Firing frequency | 8 kHz |
| Ink compatibility | water-based dye and pigment inks |
Printer Compatibility
Epson DX5 Series Water-Based Print Head | |
| Printhead Model | Suitable Machines |
| F158000 unlocked and 2nd locked | Epson Stylus Photo R1800//R2400 |
| F160010 | Epson Stylus Pro 7400/9400/4400/7800/9800 Mutoh RJ900/RJ900C |
| F187000 | Epson Stylus Pro 7880/4880/9880/7450/9450 |
| F152000 | Epson Stylus Photo R800 |
