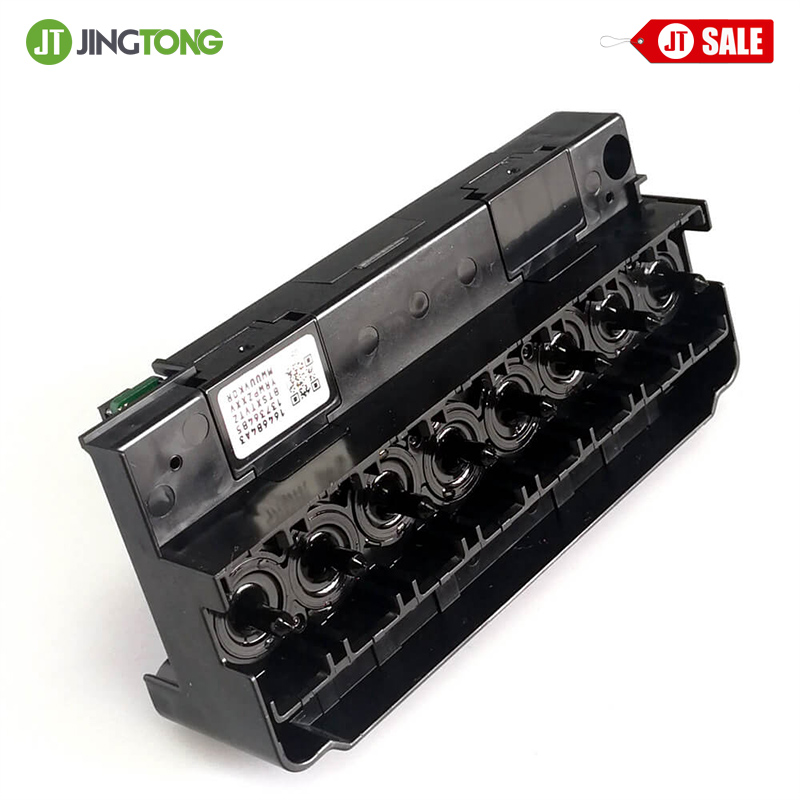

Epson DX5 Head Water-Based Print Head (F158000) Description
The Epson DX5 water-based printhead F158000/F158010, part of Epson¡¯s fifth-generation micro-piezo technology, features a native resolution of 1440 dpi with 8 nozzle lines corresponding to 8 independent ink channels, each containing 180 nozzles. This printhead can be utilized in both 4-color and 8-color printers, offering a variable droplet size from as small as 1.5 picoliters to a maximum of 21 picoliters. For 8-color printing, two printheads are required.
Designed for fast and high-resolution printing, the Epson DX5 F158010 is compatible with water-based dye and pigment inks and can be used with Epson Stylus Photo R1800/R2400 printers.
Epson DX5 Head Water-Based Print Head (F158000) Specifications
| Model | F158000 |
| Technology | Micro-Piezo |
| Native resolution | 1440 dpi |
| Min. droplet size | 1.5 picolitre |
| Max. droplet size | 21 picolitre |
| Tot. amount of nozzles | 1440 (8 lines x 180 nozzles) |
| Firing frequency | 8 kHz |
| Ink compatibility | water-based dye and pigment inks |
Printer Compatibility
| Epson DX5 Series Water-Based Print Head | |
| Printhead Model | Suitable Machines |
| F158000 unlocked and 2nd locked | Epson Stylus Photo R1800/R2400 |
| F160010 | Epson Stylus Pro 7400/9400/4400/7800/9800 Mutoh RJ900/RJ900C |
| F187000 | Epson Stylus Pro 7880/4880/9880/7450/9450 |
| F152000 | Epson Stylus Photo R800 |
