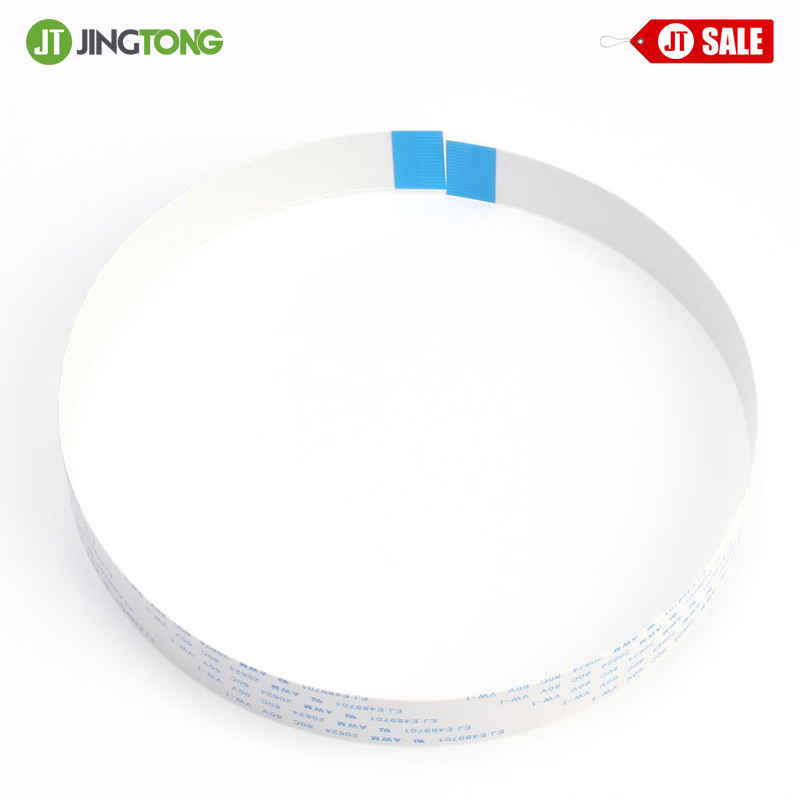

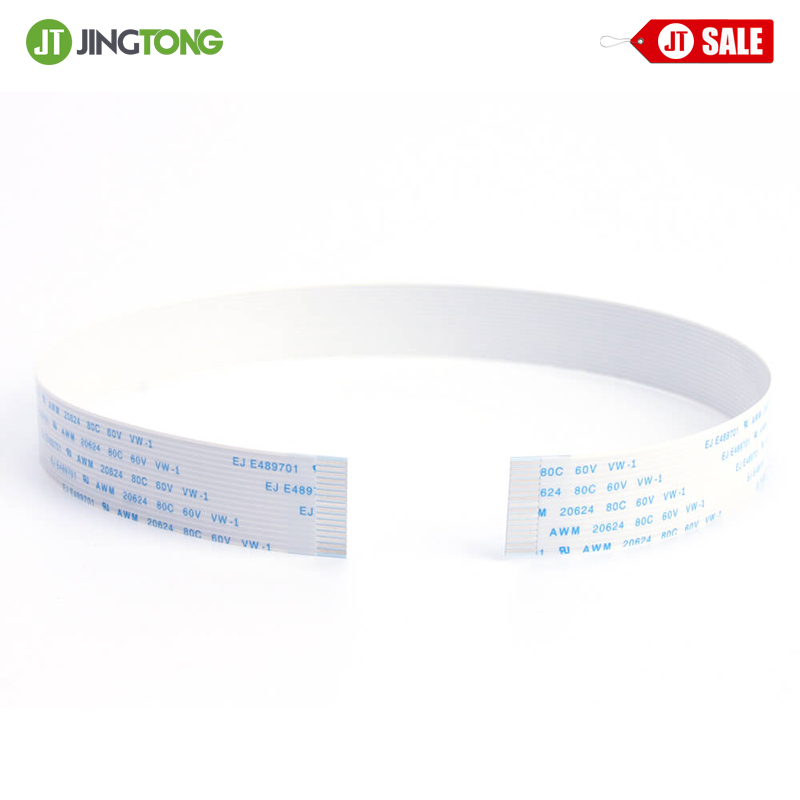

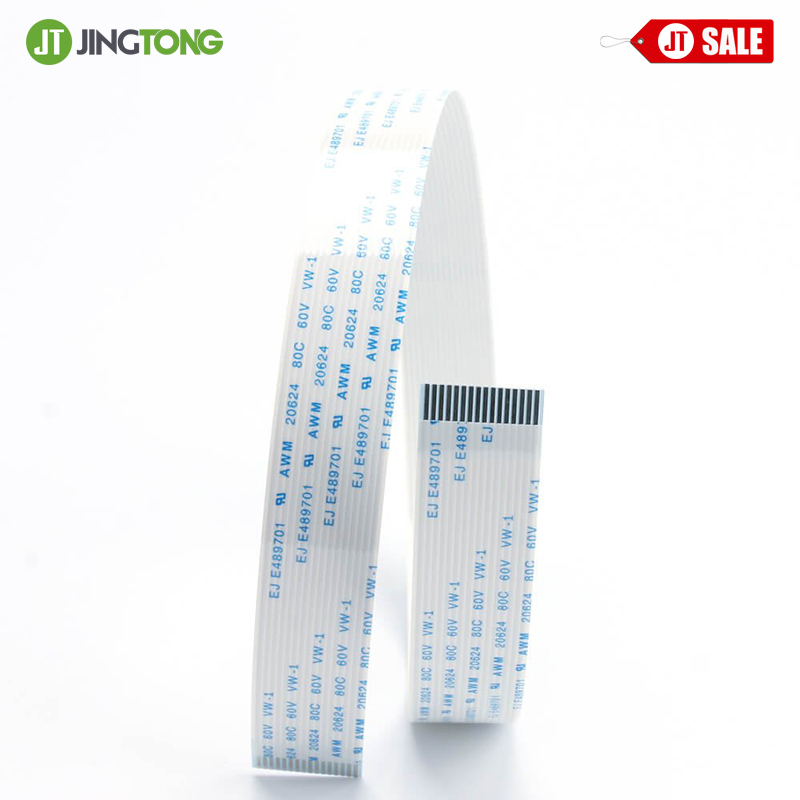

Epson 5113 Printhead Cable 16P400A-1.0 Description
This Epson 5113 head cable is suitable for Epson 5113 printheads. It connects the print heads to the print carriage board. This cable has 16 pins and is 400 mm long. We recommend changing the head cable when replacing the printhead.
Model: 16P400A-1.0
16P means there are 16 chips on the cable.
400 means the length is 40 cm.
A means the two ends of the chip are on the same surface.
1.0 means the distance between the two chips is 1 mm.
Epson 5113 Printhead Cable Specifications
| Pins | 16P |
| Length | 40 cm |
| Pins Width | 1.0 mm |
| Pin Direction | The chip at Same Face (A) |
| Suitable Printhead | Epson 5113 Head |
Epson 5113 printhead cable models:
| 5113 Head Cable | 16P250A-1.0 |
| 16P400A-1.0 |
