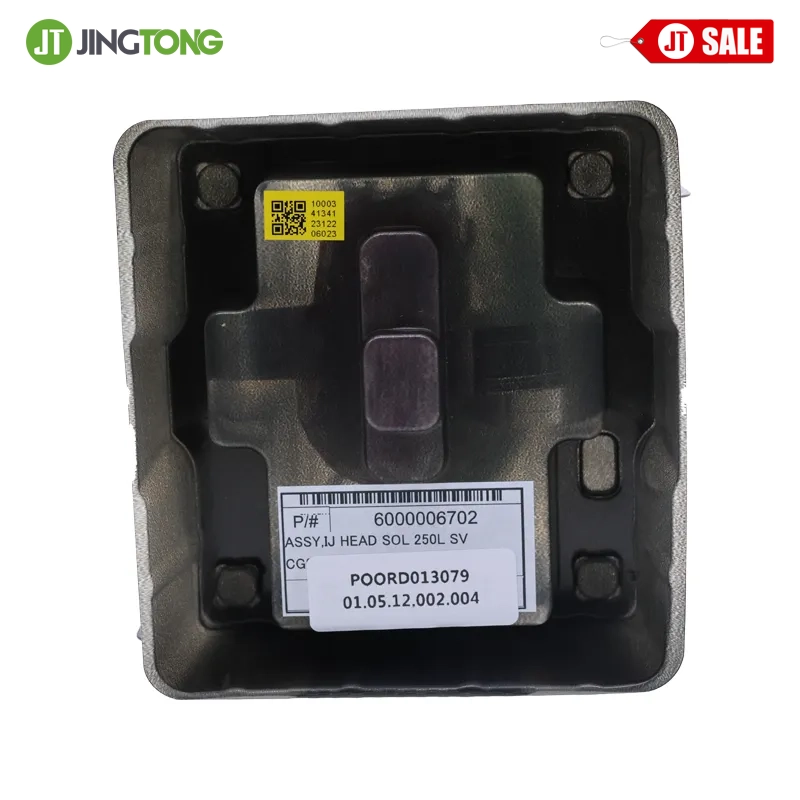

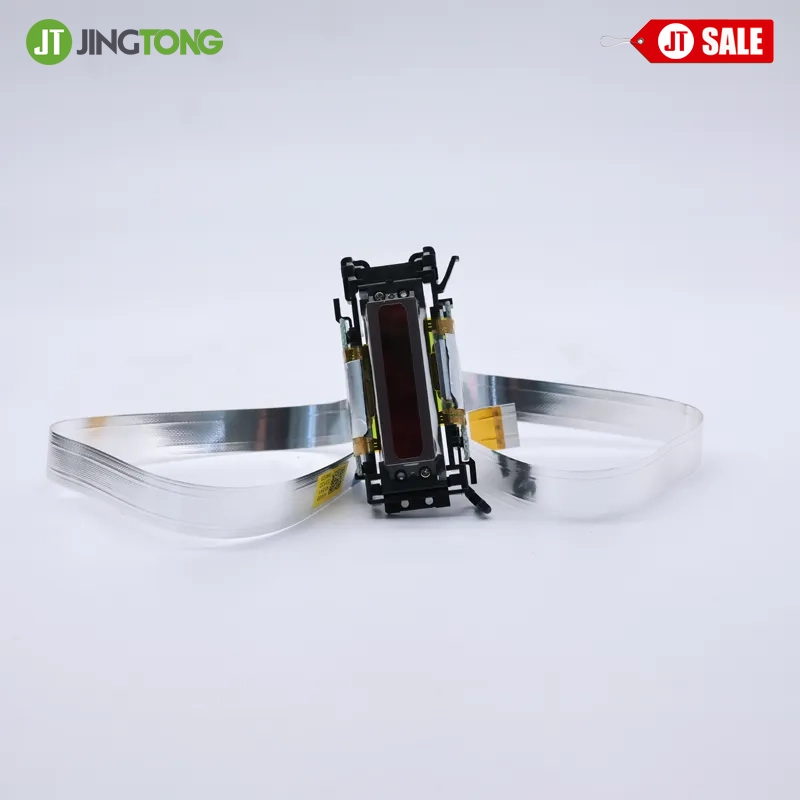

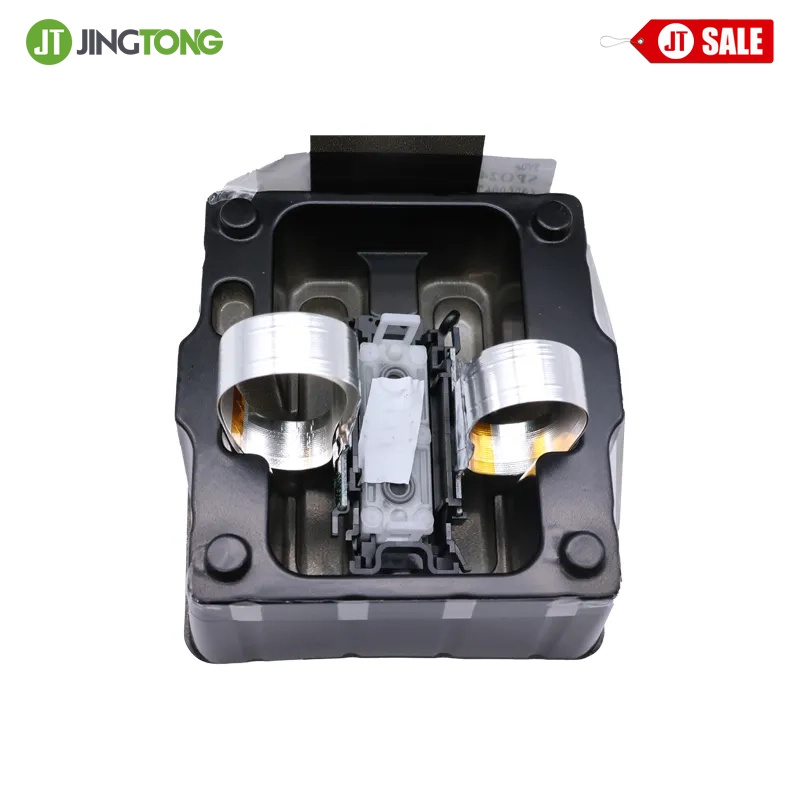

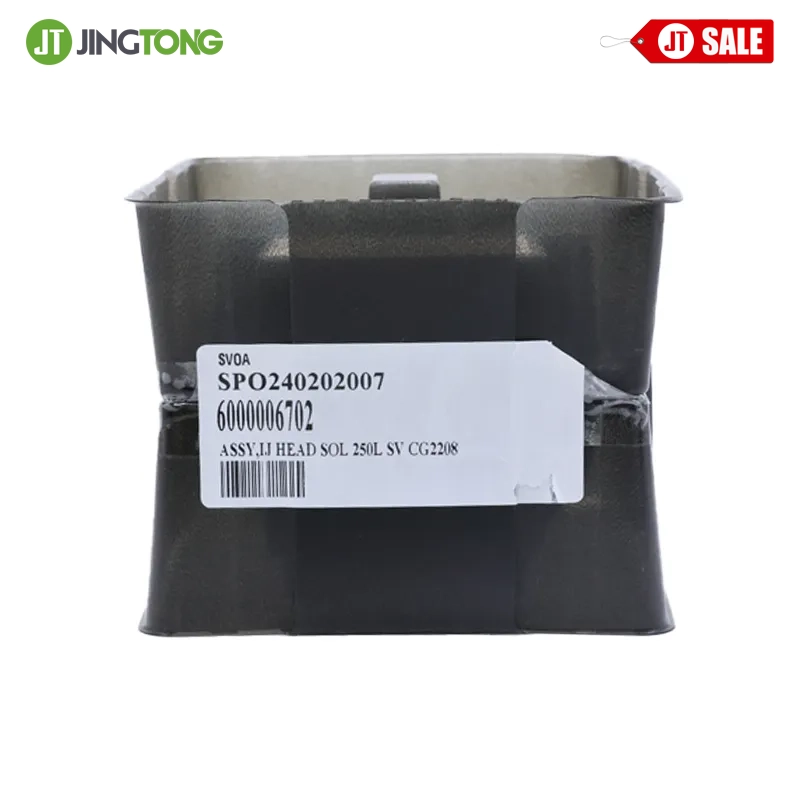

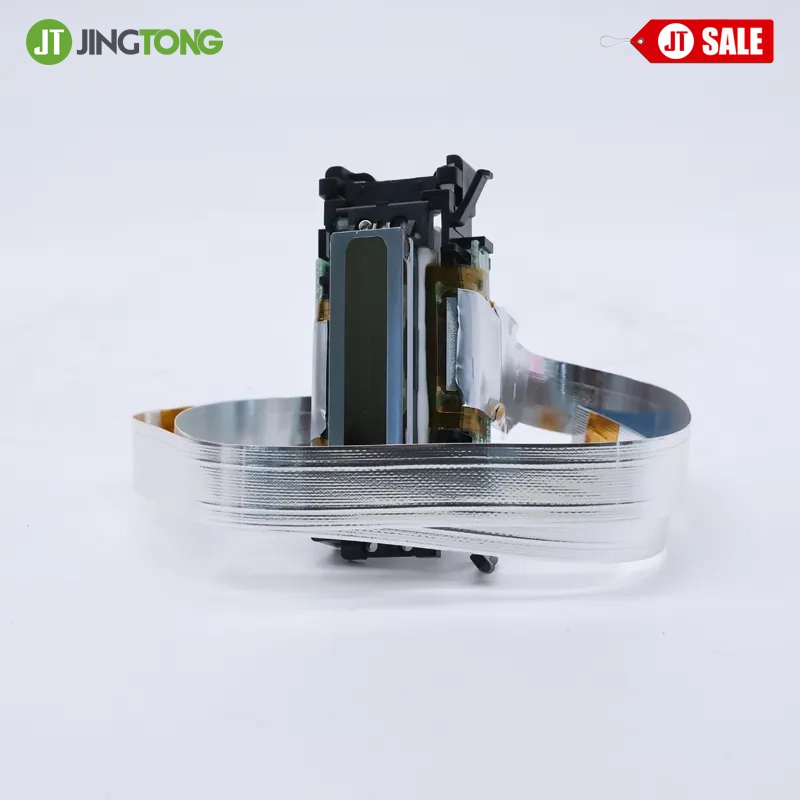

Roland Assy, IJ Head SOL 250L SV CG2076 6000006702 Description
The SOL 250L SV CG2076 printhead assembly (6000006702) is a genuine Roland component developed for stable, high-precision output across VG and SG series printers. As the latest replacement unit, it consolidates multiple previous part numbers, making maintenance and sourcing more efficient.
Broad Model Compatibility
This printhead is optimized for second-generation TrueVIS VG-540i and VG-640i, while also supporting a wider range of VG and SG platforms.
Direct replacement for several discontinued part numbers
Compatible with both early and newer VG / SG models
Long cable design (250mm) works seamlessly across different machine configurations
Can replace earlier short cable (200mm) versions without modification
Additionally, it fits:
VG-540 units with serial number LDA0100 or later
VG-640 units with serial number ADC0100 or later
Roland Assy, IJ Head SOL 250L SV CG2076 6000006702 Specifications
| Roland part number | 6000006702 | |
| Size | 61.8(W) × 40.5(D) × 23.3(H) mm (2.43″ × 1.59″ × 0.92″) | |
| Cable length | 250 mm (HF-protected aluminium) | |
| Number of Nozzles | 384 | |
| Drop volume | binary mode | 3–5 pl |
| greyscale mode | 21 ± 2 pl (varies by ink) | |
| Jetting frequency | binary | 30 kHz |
| greyscale | 24 kHz | |
| Nozzle spacing | within row | 0.1693 mm per row |
| Row-to-row distance | 0.931 mm | |
| Method | Piston pusher with metallic diaphragm plate | |
| Temperature control | No heater or thermistor | |
| Ink compatibility | Aqueous and solvent inks | |
| Service life | 30 billion actuations per nozzle | |
