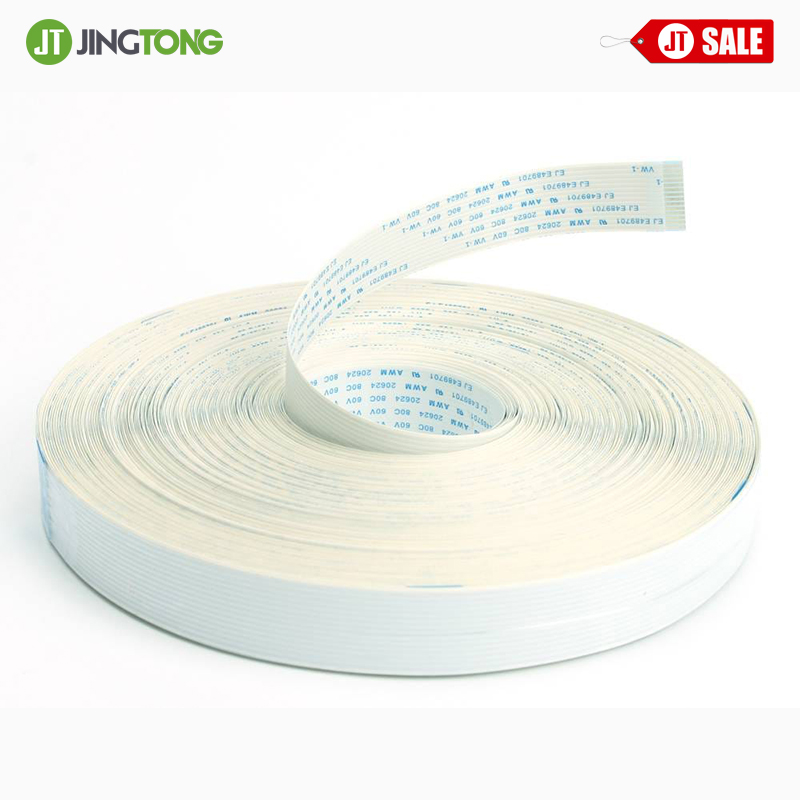

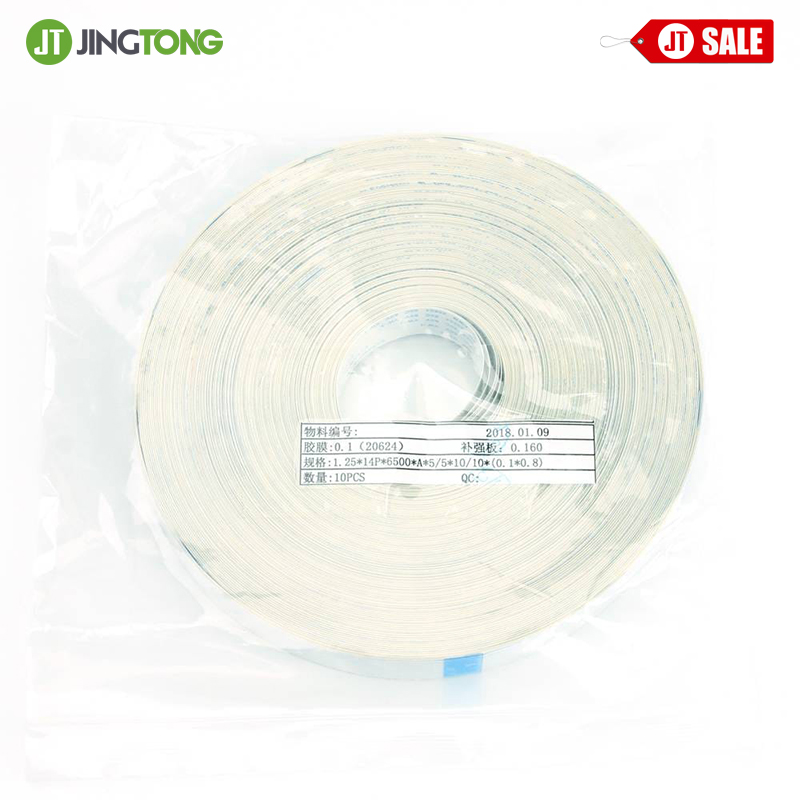

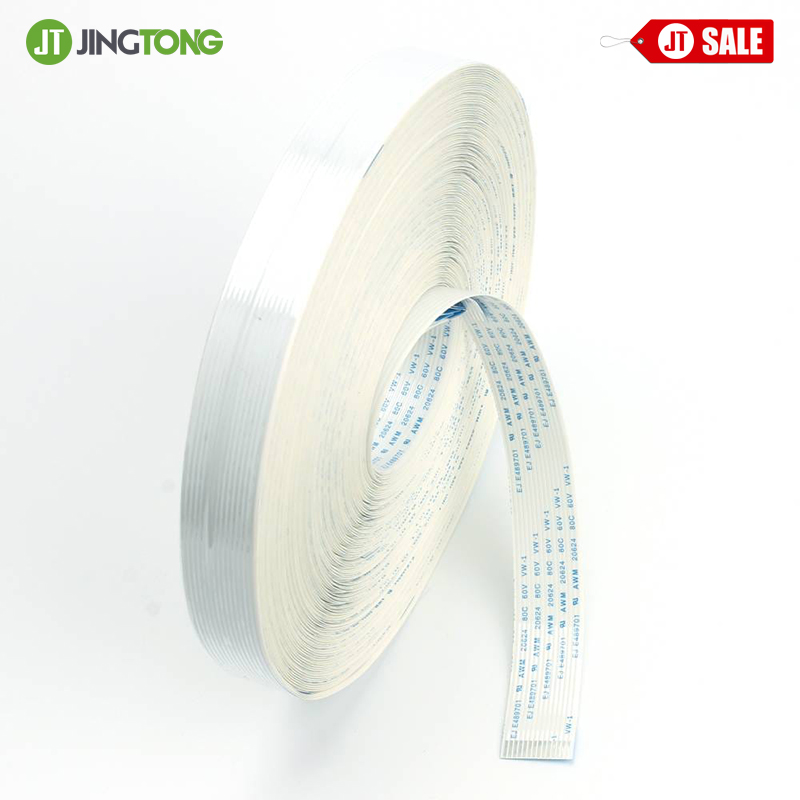

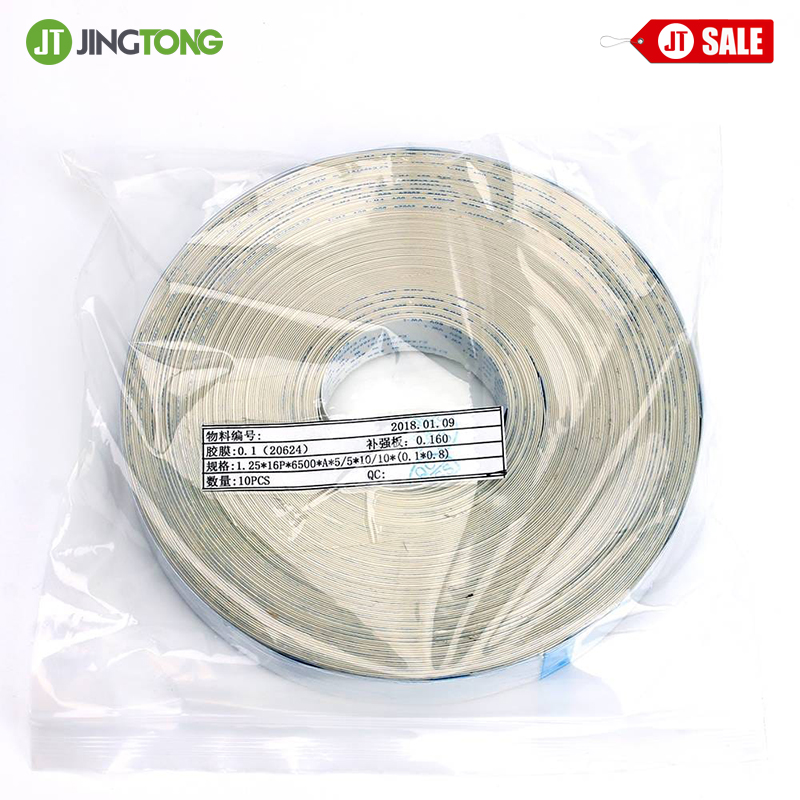

18 Pins Long Data Cable Description
This high-quality data flat cable is compatible with the printer head. This cable connects to the printhead. We recommend changing the head cable when replacing the printhead.
Model: 14P5500A-1.2
14P means there are 14 chips on the cable.
5500 means the length is 550cm.
A means the two ends of the chip are on the same surface. B means the two ends of the chip are on the reverse surface.
1.2 means the distance between the two chips is 1.2mm.
18 Pins Long Data Cable Specifications
| Pins | 14P |
| Length | 550cm |
| Pins Width | 1.2mm |
| Pin Direction | The chip at Same Face (A) |
| Suitable Printhead | printer Head |
| 18 Pins Long Data Cable cable | 14P5500A-1.2 |
| 14P6500A-1.2 | |
| 16P5500A-1.2 | |
| 16P6500A-1.2 | |
| 18P5500A-1.2 | |
| 18P6500A-1.2 |
